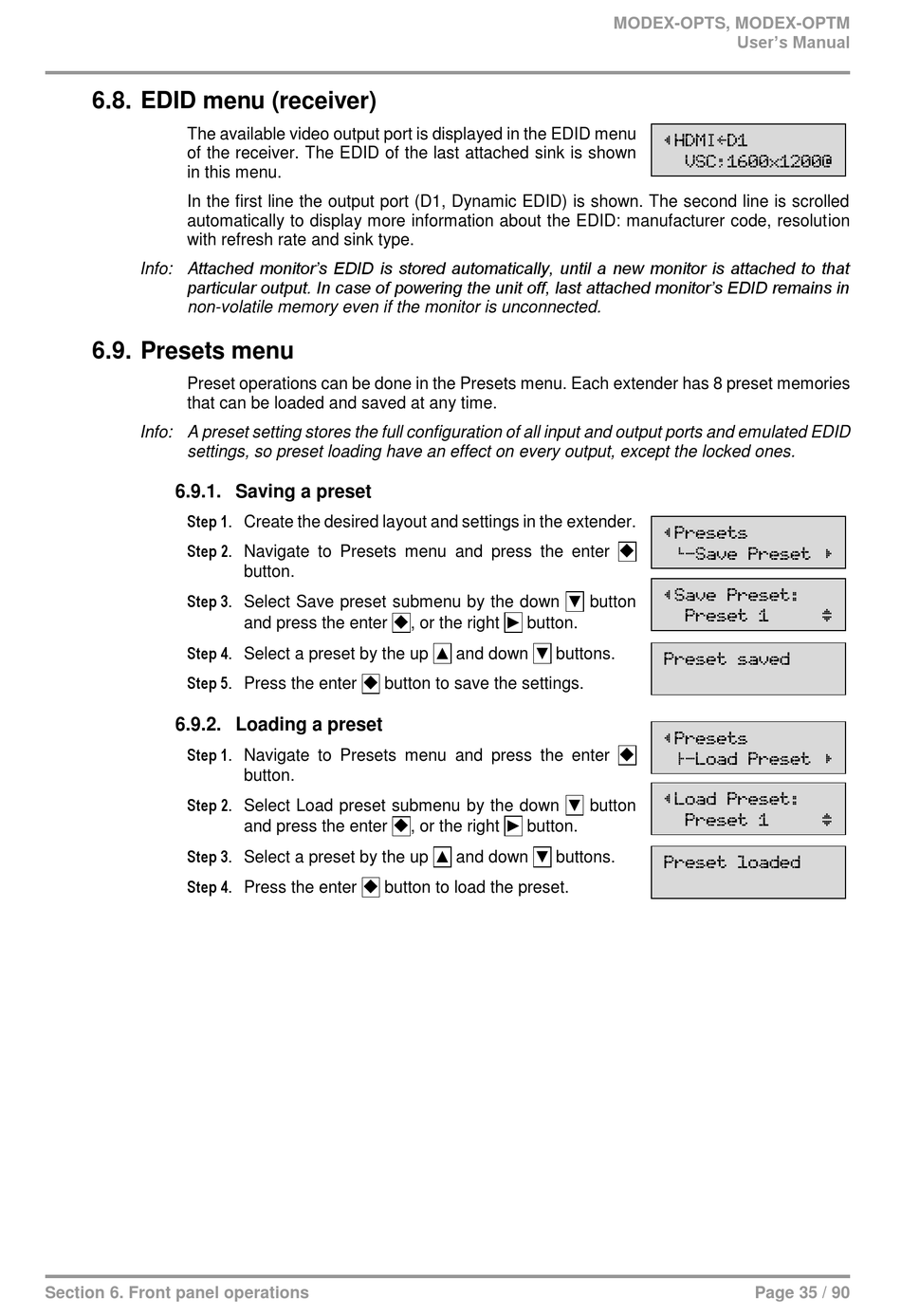

6.8. EDID menu (receiver)

The available video output port is displayed in the EDID menu
of the receiver. The EDID of the last attached sink is shown
in this menu.
In the first line the output port (D1, Dynamic EDID) is shown. The second line is scrolled
automatically to display more information about the EDID: manufacturer code, resolution
with refresh rate and sink type.
Info: Attached monitor's EDID is stored automatically, until a new monitor is attached to that
particular output. In case of powering the unit off, last attached monitor's EDID remains in
non-volatile memory even if the monitor is unconnected.

6.9. Presets menu

Preset operations can be done in the Presets menu. Each extender has 8 preset memories
that can be loaded and saved at any time.
Info: A preset setting stores the full configuration of all input and output ports and emulated EDID
settings, so preset loading have an effect on every output, except the locked ones.

6.9.1. Saving a preset

Step 1. Create the desired layout and settings in the extender.
Step 2. Navigate to Presets menu and press the enter 
Step 3. Select Save preset submenu by the down ▼ button
Step 4. Select a preset by the up ▲ and down ▼ buttons.
Step 5. Press the enter  button to save the settings.

6.9.2. Loading a preset

Step 1. Navigate to Presets menu and press the enter 
Step 2. Select Load preset submenu by the down ▼ button
Step 3. Select a preset by the up ▲ and down ▼ buttons.
Step 4. Press the enter  button to load the preset.
Section 6. Front panel operations
button.
and press the enter , or the right ► button.
button.
and press the enter , or the right ► button.
MODEX-OPTS, MODEX-OPTM
User's Manual
¹HDMIÝD1
VSC;1600x1200@
¹Presets
¿-Save Preset º
¹Save Preset:
Preset 1
Preset saved
¹Presets
¾-Load Preset º
¹Load Preset:
Preset 1
Preset loaded
