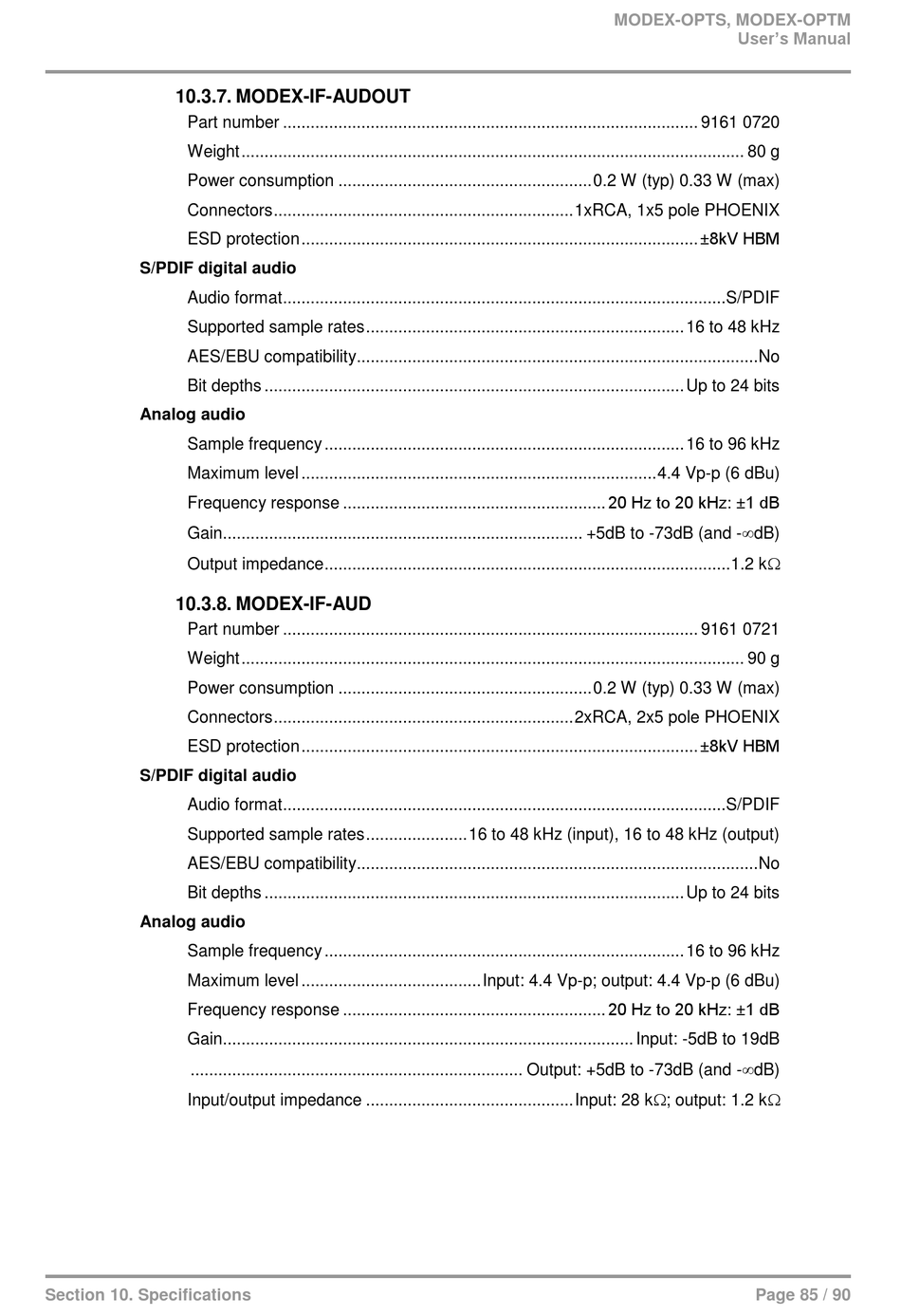

10.3.7. MODEX-IF-AUDOUT

Part number .......................................................................................... 9161 0720
Weight ............................................................................................................. 80 g
Power consumption ....................................................... 0.2 W (typ) 0.33 W (max)
Connectors ................................................................. 1xRCA, 1x5 pole PHOENIX
ESD protection ...................................................................................... ±8kV HBM
S/PDIF digital audio
Audio format ................................................................................................ S/PDIF
Supported sample rates ..................................................................... 16 to 48 kHz
AES/EBU compatibility....................................................................................... No
Bit depths ........................................................................................... Up to 24 bits
Analog audio
Sample frequency .............................................................................. 16 to 96 kHz
Maximum level ............................................................................. 4.4 Vp-p (6 dBu)
Frequency response ......................................................... 20 Hz to 20 kHz: ±1 dB
Gain.............................................................................. +5dB to -73dB (and -dB)
Output impedance ........................................................................................ 1.2 k

10.3.8. MODEX-IF-AUD

Part number .......................................................................................... 9161 0721
Weight ............................................................................................................. 90 g
Power consumption ....................................................... 0.2 W (typ) 0.33 W (max)
Connectors ................................................................. 2xRCA, 2x5 pole PHOENIX
ESD protection ...................................................................................... ±8kV HBM
S/PDIF digital audio
Audio format ................................................................................................ S/PDIF
Supported sample rates ...................... 16 to 48 kHz (input), 16 to 48 kHz (output)
AES/EBU compatibility....................................................................................... No
Bit depths ........................................................................................... Up to 24 bits
Analog audio
Sample frequency .............................................................................. 16 to 96 kHz
Maximum level ....................................... Input: 4.4 Vp-p; output: 4.4 Vp-p (6 dBu)
Frequency response ......................................................... 20 Hz to 20 kHz: ±1 dB
Gain......................................................................................... Input: -5dB to 19dB
........................................................................ Output: +5dB to -73dB (and -dB)
Input/output impedance ............................................. Input: 28 k; output: 1.2 k
