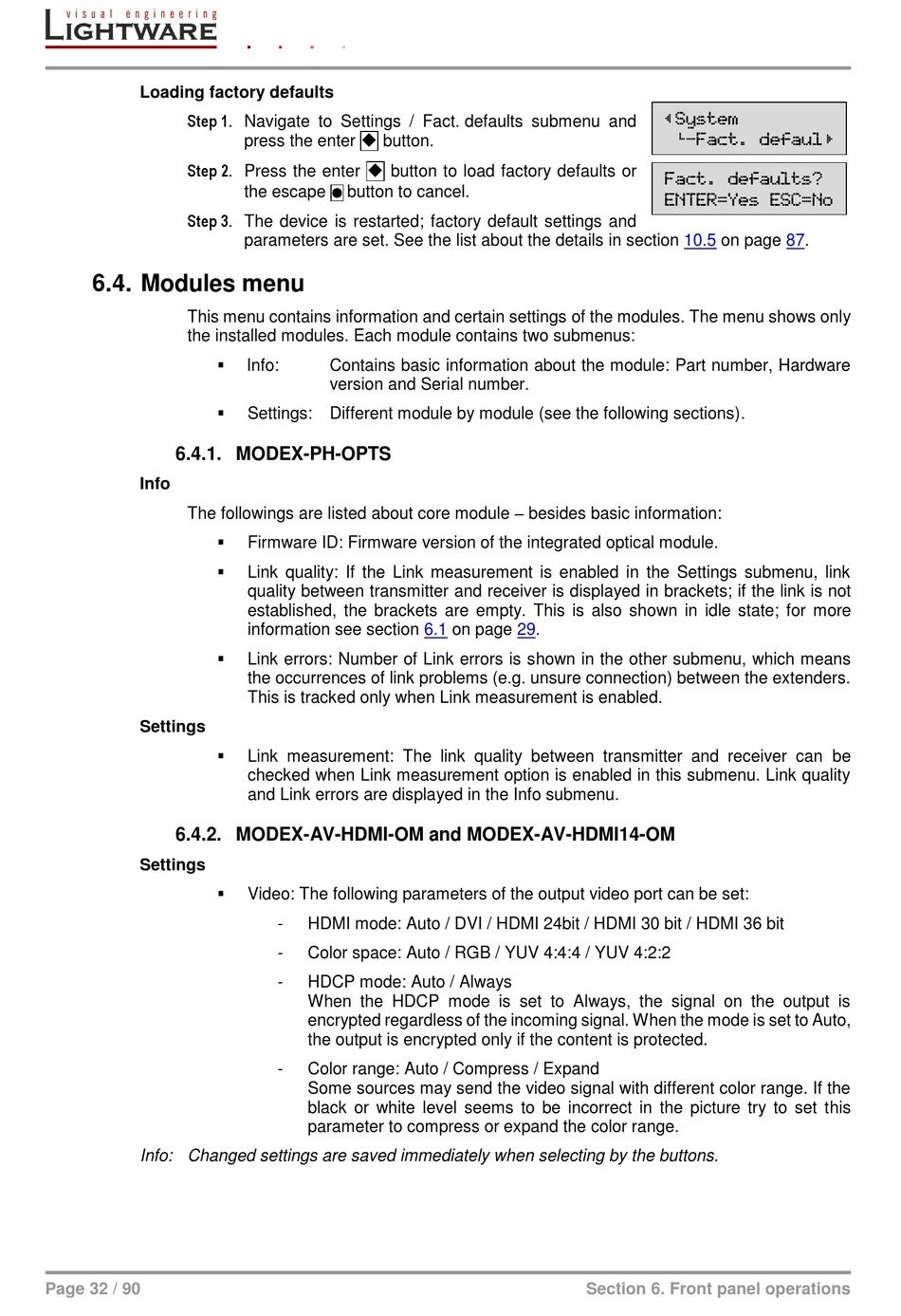

Loading factory defaults
Step 1. Navigate to Settings / Fact. defaults submenu and
Step 2. Press the enter  button to load factory defaults or
Step 3. The device is restarted; factory default settings and

6.4. Modules menu

This menu contains information and certain settings of the modules. The menu shows only
the installed modules. Each module contains two submenus:

6.4.1. MODEX-PH-OPTS

Info
The followings are listed about core module – besides basic information:
Settings

6.4.2. MODEX-AV-HDMI-OM and MODEX-AV-HDMI14-OM

Settings
Info: Changed settings are saved immediately when selecting by the buttons.
Page 32 / 90
press the enter  button.
the escape button to cancel.
●
parameters are set. See the list about the details in section

Info: Contains basic information about the module: Part number, Hardware
version and Serial number.

Settings: Different module by module (see the following sections).

Firmware ID: Firmware version of the integrated optical module.

Link quality: If the Link measurement is enabled in the Settings submenu, link
quality between transmitter and receiver is displayed in brackets; if the link is not
established, the brackets are empty. This is also shown in idle state; for more
information see section

Link errors: Number of Link errors is shown in the other submenu, which means
the occurrences of link problems (e.g. unsure connection) between the extenders.
This is tracked only when Link measurement is enabled.

Link measurement: The link quality between transmitter and receiver can be
checked when Link measurement option is enabled in this submenu. Link quality
and Link errors are displayed in the Info submenu.

Video: The following parameters of the output video port can be set:
- HDMI mode: Auto / DVI / HDMI 24bit / HDMI 30 bit / HDMI 36 bit
- Color space: Auto / RGB / YUV 4:4:4 / YUV 4:2:2
- HDCP mode: Auto / Always
When the HDCP mode is set to Always, the signal on the output is
encrypted regardless of the incoming signal. When the mode is set to Auto,
the output is encrypted only if the content is protected.
- Color range: Auto / Compress / Expand
Some sources may send the video signal with different color range. If the
black or white level seems to be incorrect in the picture try to set this
parameter to compress or expand the color range.
6.1 on page 29.
Section 6. Front panel operations
¹System
¿-Fact. defaulº
Fact. defaults?
ENTER=Yes ESC=No
10.5 on page 87.
