7.7.1. Changing emulated EDID

Step 1. Select desired EDID list from one of the three sources by pressing its button above
Step 2. Select an EDID from the left panel that has to be emulated; the EDID will be
Step 3. Press Emulated button above right panel; currently emulated EDID is shown.
Step 4. Select desired port where the EDID has to be emulated (more ports can also be
Step 5. Press Transfer button to change emulated EDID.

7.7.2. Learning an EDID

Info: The process is the same like changing emulated EDID; the only difference is the target on
the right panel: select 'User' button. Thus one or more EDIDs can be copied into user
memory either from factory memory or from a connected sink (Dynamic).

7.7.3. Exporting an EDID

The EDID listed in left panel can be downloaded as a file (*.bin) to the computer.
Step 1. Select desired EDID from the left panel (the EDID has to be highlighted with yellow
Step 2. Press Save button to download the file to the computer.

7.7.4. Importing an EDID

Previously saved EDID (*.bin file) can be imported into user memory as follows:
Step 1. Press User button above left panel.
Step 2. Select a memory slot from the list; it will be highlighted with yellow cursor.
Step 3. Press Load button below left panel.
Step 4. Browse the file in the opening window then click on Load EDID. Browsed EDID is
Info: The imported EDID overwrites the selected memory slot even if it is not empty.

7.7.5. EDID Summary window

Select an EDID in the left panel and press Info button to display EDID summary.
Page 52 / 90
left panel.
highlighted with yellow cursor.
selected); the EDID will be highlighted with yellow cursor.
cursor).
imported into the selected User memory slot.

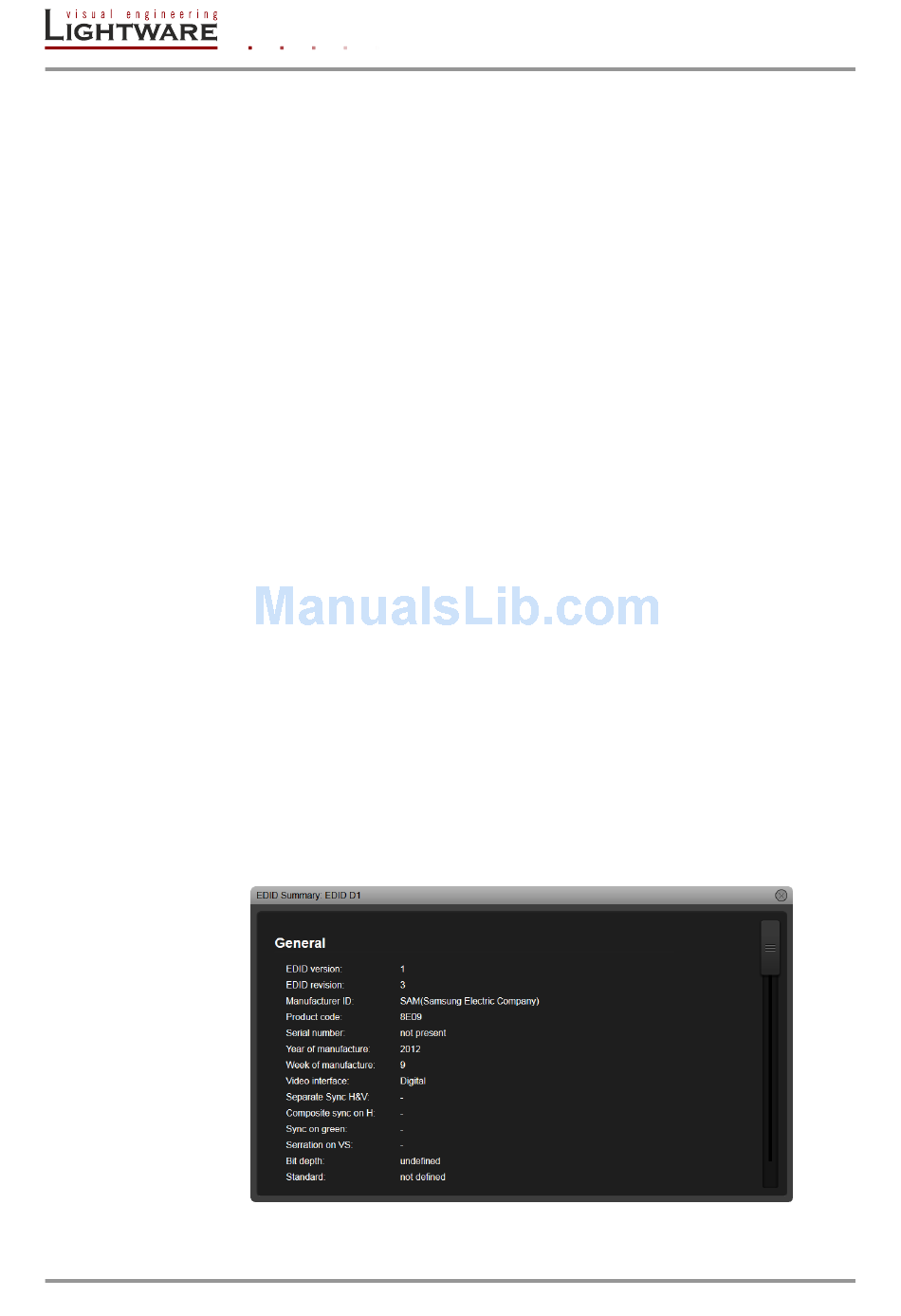

Figure 7-12. EDID Summary
