7.8.2. Network submenu

When the extender is connected to a network or directly to a computer, the necessary
settings can be set in this submenu. If a fixed IP address is planned to use, fill Static IP
address, Static subnet mask and Static gateway fields. If dynamic IP address is planned to
use, set DHCP to Enabled from the drop-down list; other settings are made automatically.
Port number setting has an influence only when connecting to a third party device or doing
firmware upgrade. Click on Apply changes button to save settings.
Info: Port setting has no influence on the connection if the built-in web is used to control the
MODEX. When the extender is connected by LAN, port nr. 80 and 81 are used which
cannot be changed.

7.8.3. Status submenu

Besides some general information and firmware versions in left panel, name of the installed
modules are listed in the right panel of this submenu. System time means the elapsed time
since last boot.
Info: Supply B is reserved for future developments.
Page 54 / 90

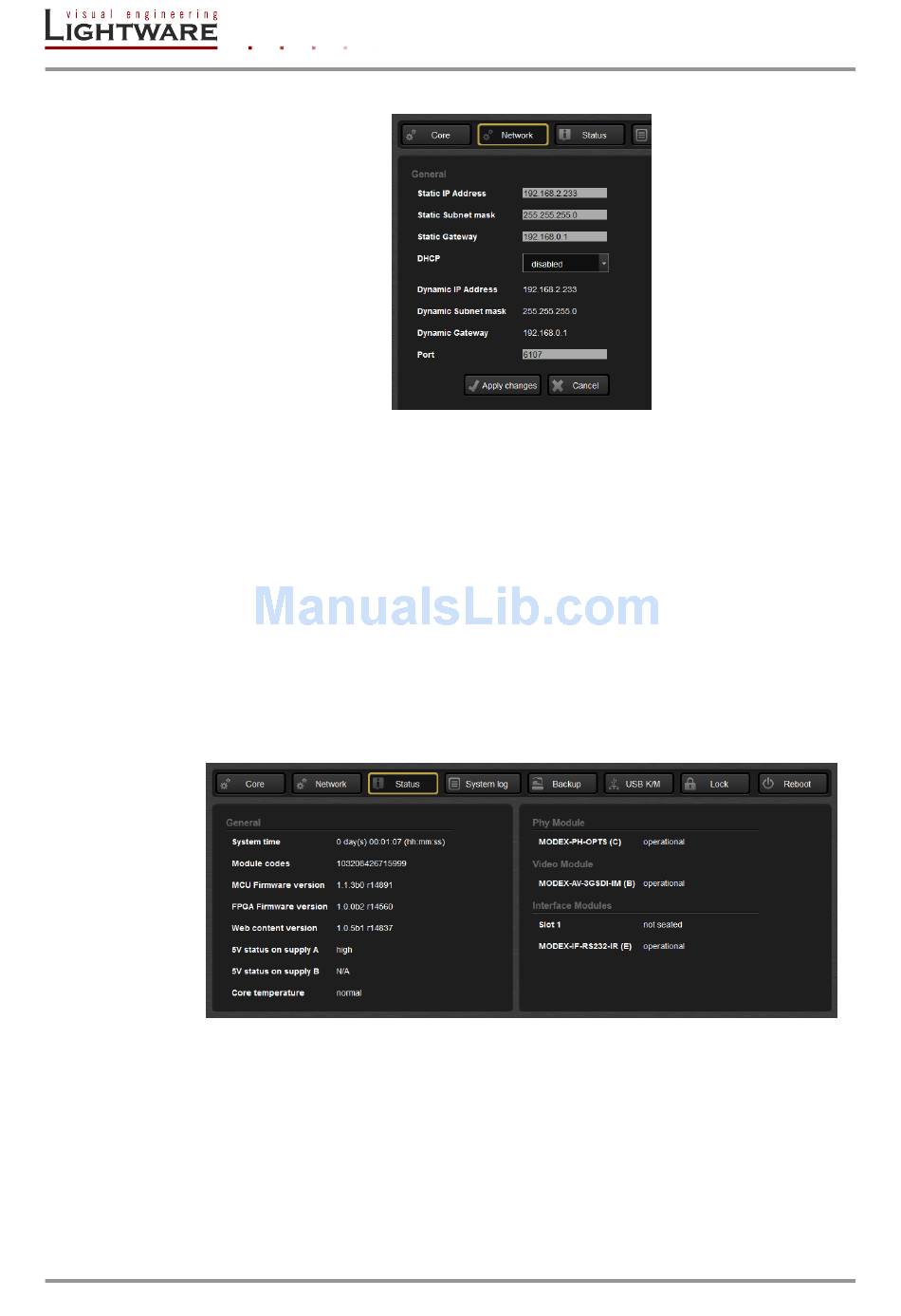

Figure 7-15. Network submenu
