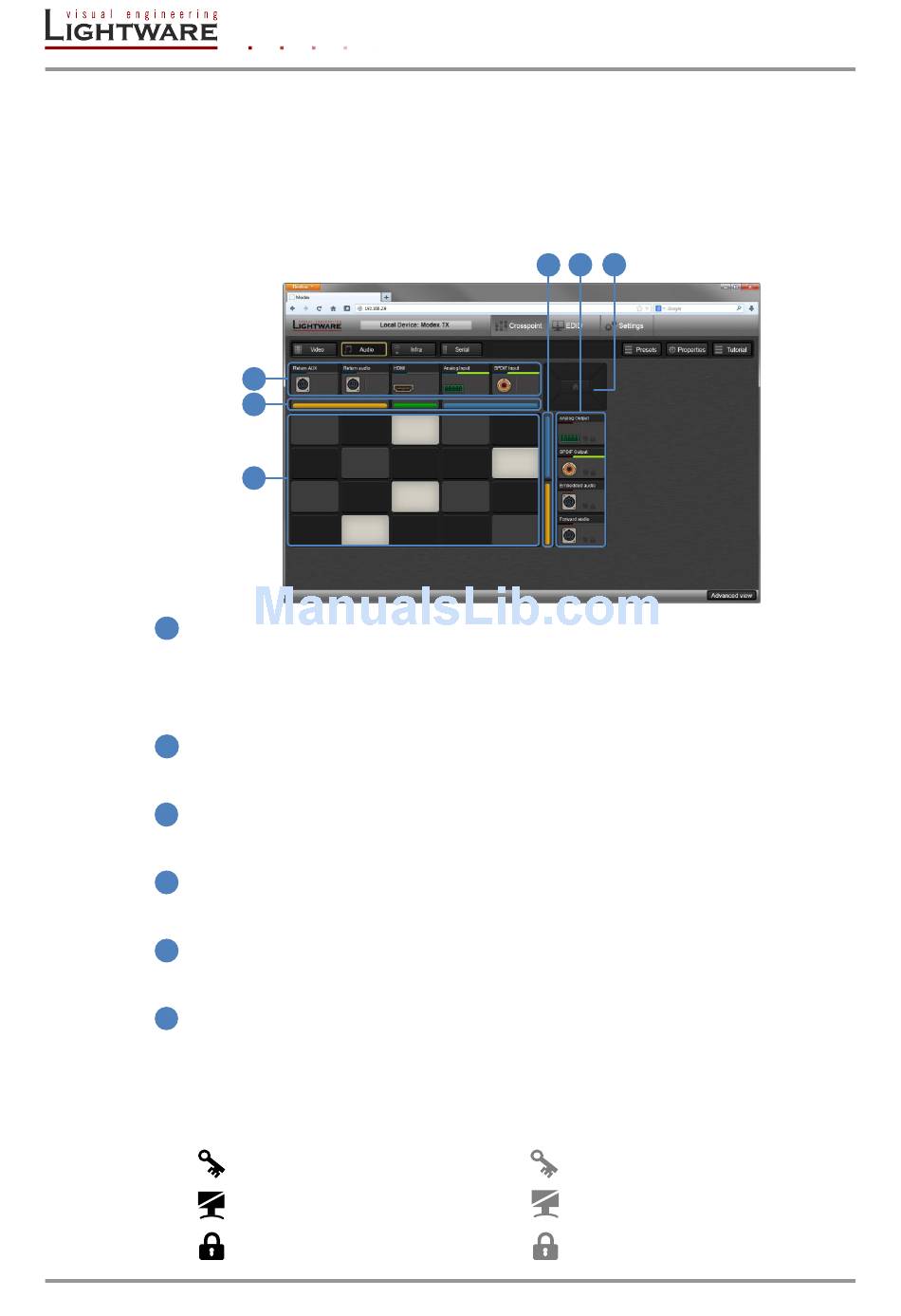

7.4. Crosspoint menu

MODEX is a multi-layer extender and each layer has an own specific control panel for
configuration. Left click on the Crosspoint label in the main menu to obtain layers of
configuration panel supported by the selected MODEX extender pair.
Info: USB KVM has no crosspoint configuration panel.
Info: If a layer is not supported by the selected MODEX, its menu is not displayed.
1 Crosspoint panel
2 Input module properties
3 Input ports
Output module properties
4
Output ports
5
6 Navigation buttons
Icons on the ports:
Page 38 / 90
3
2
1
Displaying connections between the input and output ports:
Dark tiles:
Grey tiles:
White tiles:
Each color bar represents a module. Properties window
appears displaying information and settings about the given
input module by clicking on the colored bar.
Displaying available input ports of the selected layer.
Properties panel can be displayed on the right side by clicking
on its button.
Each color bar represents a module. Properties window
appears displaying information and settings about the given
output module by clicking on the colored bar.
Displaying available output ports of selected layer. Properties
panel can be displayed on the right side by clicking on its
button.
If the window is smaller than required, input and/or output
ports may not fit in the available area. Thus the arrows on this
button get activated and the ports can be scrolled. Clicking in
the middle icon restores the original layout (crosspoint is
arranged to the left top corner).
HDCP is enabled and the signal is
encrypted (black)
Port is muted (black)
Port is locked (black)
4 5 6
Connection is not possible.
Connection is possible but not established.
Connection is established.
HDCP is disabled or the signal is not
encrypted (grey)
Port is unmuted (grey)
Port is unlocked (grey)
Section 7. Web control – Using the built-in website
