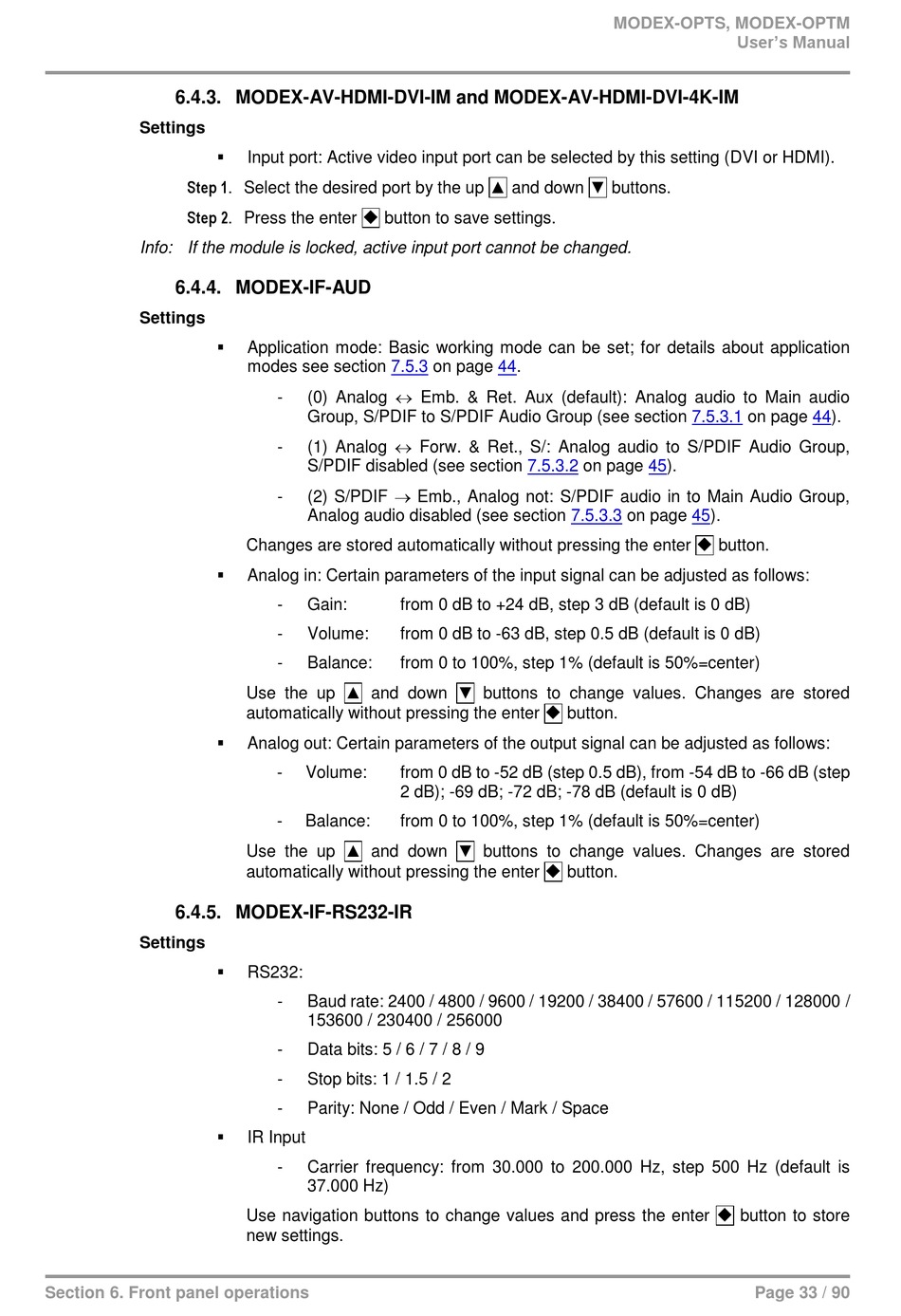

6.4.3. MODEX-AV-HDMI-DVI-IM and MODEX-AV-HDMI-DVI-4K-IM

Settings
Step 1. Select the desired port by the up ▲ and down ▼ buttons.
Step 2. Press the enter  button to save settings.
Info: If the module is locked, active input port cannot be changed.

6.4.4. MODEX-IF-AUD

Settings

6.4.5. MODEX-IF-RS232-IR

Settings
Section 6. Front panel operations

Input port: Active video input port can be selected by this setting (DVI or HDMI).

Application mode: Basic working mode can be set; for details about application
modes see section
(0) Analog  Emb. & Ret. Aux (default): Analog audio to Main audio
-
Group, S/PDIF to S/PDIF Audio Group (see section
(1) Analog  Forw. & Ret., S/: Analog audio to S/PDIF Audio Group,
-
S/PDIF disabled (see section
(2) S/PDIF  Emb., Analog not: S/PDIF audio in to Main Audio Group,
-
Analog audio disabled (see section
Changes are stored automatically without pressing the enter  button.

Analog in: Certain parameters of the input signal can be adjusted as follows:
- Gain:
- Volume:
- Balance:
Use the up ▲ and down ▼ buttons to change values. Changes are stored
automatically without pressing the enter  button.

Analog out: Certain parameters of the output signal can be adjusted as follows:
- Volume:
- Balance:
Use the up ▲ and down ▼ buttons to change values. Changes are stored
automatically without pressing the enter  button.

RS232:
- Baud rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 / 128000 /
153600 / 230400 / 256000
- Data bits: 5 / 6 / 7 / 8 / 9
- Stop bits: 1 / 1.5 / 2
- Parity: None / Odd / Even / Mark / Space

IR Input
- Carrier frequency: from 30.000 to 200.000 Hz, step 500 Hz (default is
37.000 Hz)
Use navigation buttons to change values and press the enter  button to store
new settings.
7.5.3 on page 44.
7.5.3.2
from 0 dB to +24 dB, step 3 dB (default is 0 dB)
from 0 dB to -63 dB, step 0.5 dB (default is 0 dB)
from 0 to 100%, step 1% (default is 50%=center)
from 0 dB to -52 dB (step 0.5 dB), from -54 dB to -66 dB (step
2 dB); -69 dB; -72 dB; -78 dB (default is 0 dB)
from 0 to 100%, step 1% (default is 50%=center)
MODEX-OPTS, MODEX-OPTM
User's Manual
7.5.3.1
on page 45).
7.5.3.3 on page 45).
on page 44).
