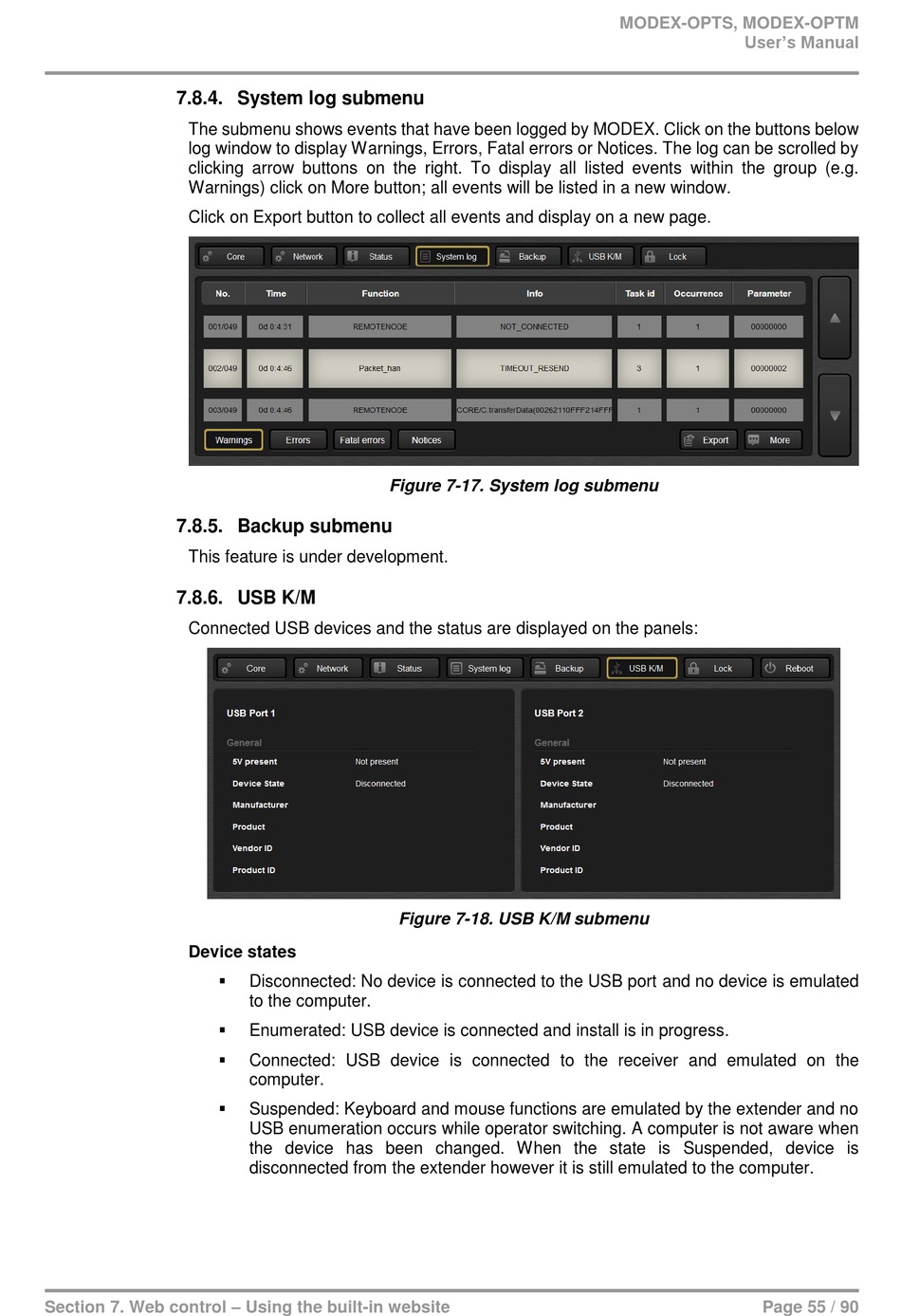

7.8.4. System log submenu

The submenu shows events that have been logged by MODEX. Click on the buttons below
log window to display Warnings, Errors, Fatal errors or Notices. The log can be scrolled by
clicking arrow buttons on the right. To display all listed events within the group (e.g.
Warnings) click on More button; all events will be listed in a new window.
Click on Export button to collect all events and display on a new page.

7.8.5. Backup submenu

This feature is under development.

7.8.6. USB K/M

Connected USB devices and the status are displayed on the panels:
Device states
Section 7. Web control – Using the built-in website
Figure 7-17. System log submenu

Disconnected: No device is connected to the USB port and no device is emulated
to the computer.

Enumerated: USB device is connected and install is in progress.

Connected: USB device is connected to the receiver and emulated on the
computer.

Suspended: Keyboard and mouse functions are emulated by the extender and no
USB enumeration occurs while operator switching. A computer is not aware when
the device has been changed. When the state is Suspended, device is
disconnected from the extender however it is still emulated to the computer.
Figure 7-18. USB K/M submenu
