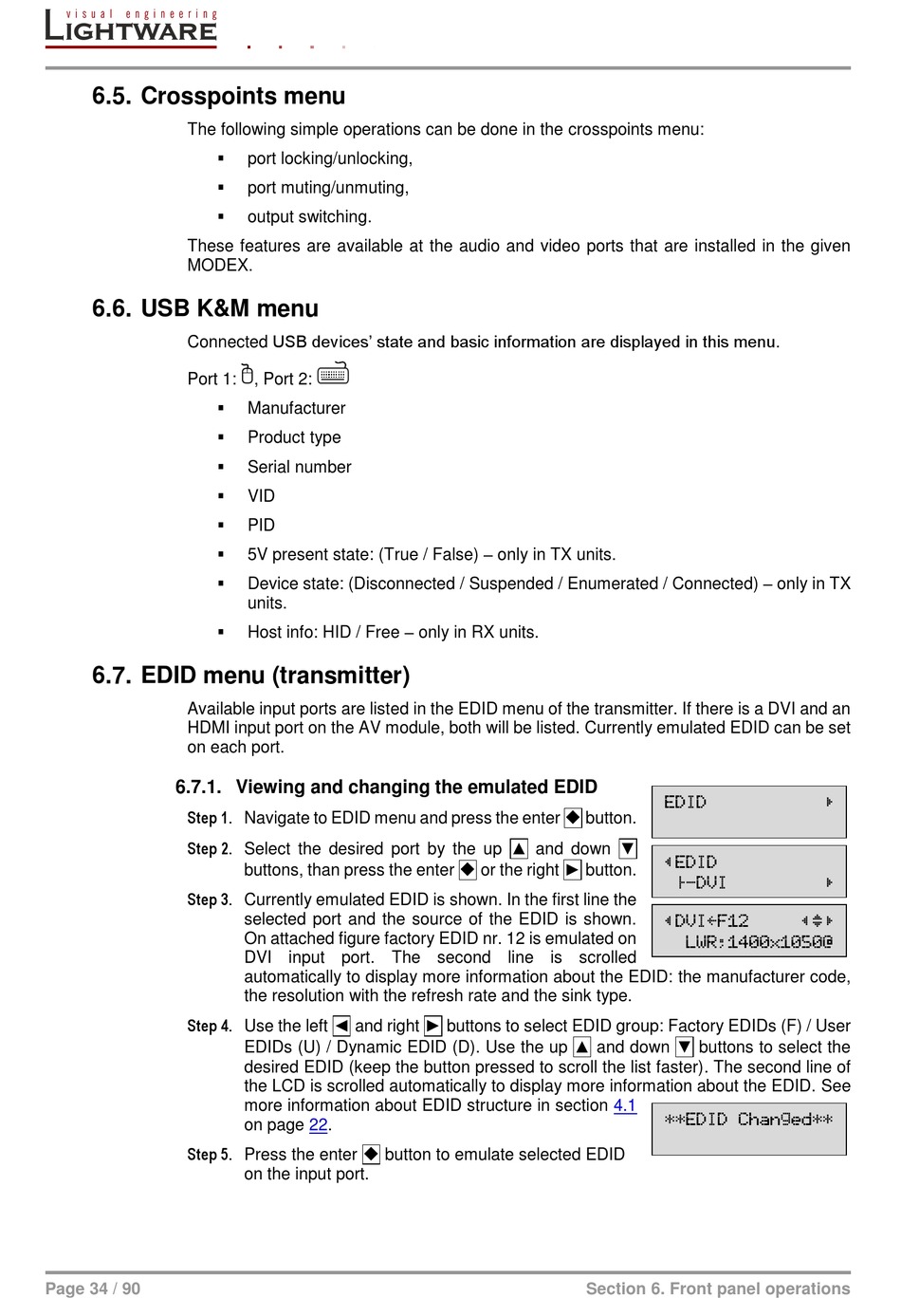

6.5. Crosspoints menu

The following simple operations can be done in the crosspoints menu:
These features are available at the audio and video ports that are installed in the given
MODEX.
6.6. USB K&M menu
Connected USB devices' state and basic information are displayed in this menu.
Port 1: , Port 2:

6.7. EDID menu (transmitter)

Available input ports are listed in the EDID menu of the transmitter. If there is a DVI and an
HDMI input port on the AV module, both will be listed. Currently emulated EDID can be set
on each port.

6.7.1. Viewing and changing the emulated EDID

Step 1. Navigate to EDID menu and press the enter  button.
Step 2. Select the desired port by the up ▲ and down ▼
Step 3. Currently emulated EDID is shown. In the first line the
Step 4. Use the left ◄ and right ► buttons to select EDID group: Factory EDIDs (F) / User
Step 5. Press the enter  button to emulate selected EDID
Page 34 / 90

port locking/unlocking,

port muting/unmuting,

output switching.

Manufacturer

Product type

Serial number

VID

PID
 5V present state: (True / False) – only in TX units.
 Device state: (Disconnected / Suspended / Enumerated / Connected) – only in TX
units.
Host info: HID / Free – only in RX units.

buttons, than press the enter  or the right ► button.
selected port and the source of the EDID is shown.
On attached figure factory EDID nr. 12 is emulated on
DVI input port. The second line is scrolled
automatically to display more information about the EDID: the manufacturer code,
the resolution with the refresh rate and the sink type.
EDIDs (U) / Dynamic EDID (D). Use the up ▲ and down ▼ buttons to select the
desired EDID (keep the button pressed to scroll the list faster). The second line of
the LCD is scrolled automatically to display more information about the EDID. See
more information about EDID structure in section
on page 22.
on the input port.
EDID
¹EDID
¾-DVI
¹DVIÝF12
LWR;1400x1050@
4.1
**EDID Changed**
Section 6. Front panel operations
º
º
¹½º
