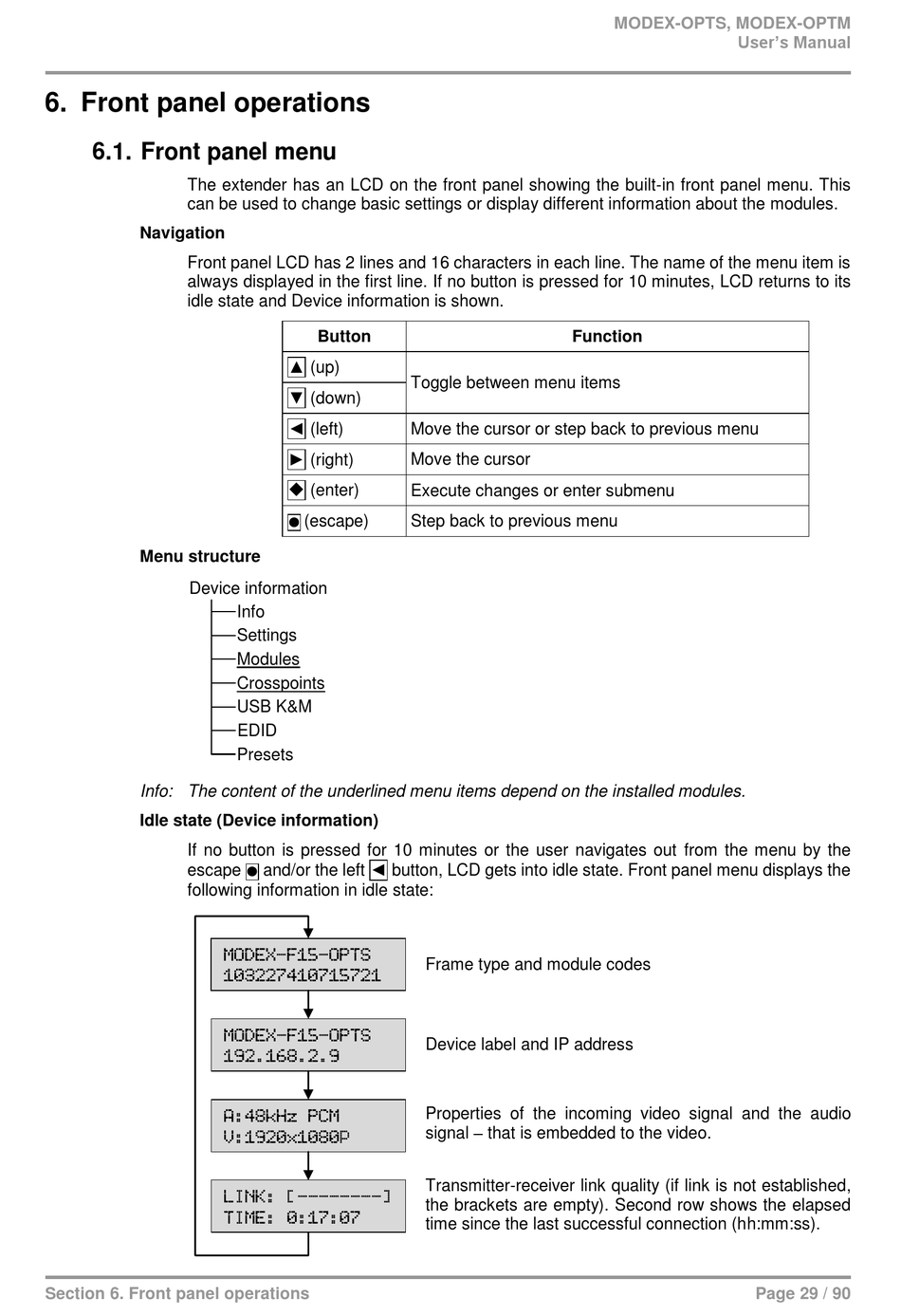

6. Front panel operations

6.1. Front panel menu

The extender has an LCD on the front panel showing the built-in front panel menu. This
can be used to change basic settings or display different information about the modules.
Navigation
Front panel LCD has 2 lines and 16 characters in each line. The name of the menu item is
always displayed in the first line. If no button is pressed for 10 minutes, LCD returns to its
idle state and Device information is shown.
Menu structure
Device information
Info: The content of the underlined menu items depend on the installed modules.
Idle state (Device information)
If no button is pressed for 10 minutes or the user navigates out from the menu by the
escape
following information in idle state:
Section 6. Front panel operations
Button
▲ (up)
▼ (down)
◄ (left)
► (right)
 (enter)
(escape)
●
Info
Settings
Modules
Crosspoints
USB K&M
EDID
Presets
and/or the left ◄ button, LCD gets into idle state. Front panel menu displays the
●
MODEX-F15-OPTS
103227410715721
MODEX-F15-OPTS
192.168.2.9
A:48kHz PCM
V:1920x1080p
LINK: [--------]
TIME: 0:17:07
Function
Toggle between menu items
Move the cursor or step back to previous menu
Move the cursor
Execute changes or enter submenu
Step back to previous menu
Frame type and module codes
Device label and IP address
Properties of the incoming video signal and the audio
signal – that is embedded to the video.
Transmitter-receiver link quality (if link is not established,
the brackets are empty). Second row shows the elapsed
time since the last successful connection (hh:mm:ss).
