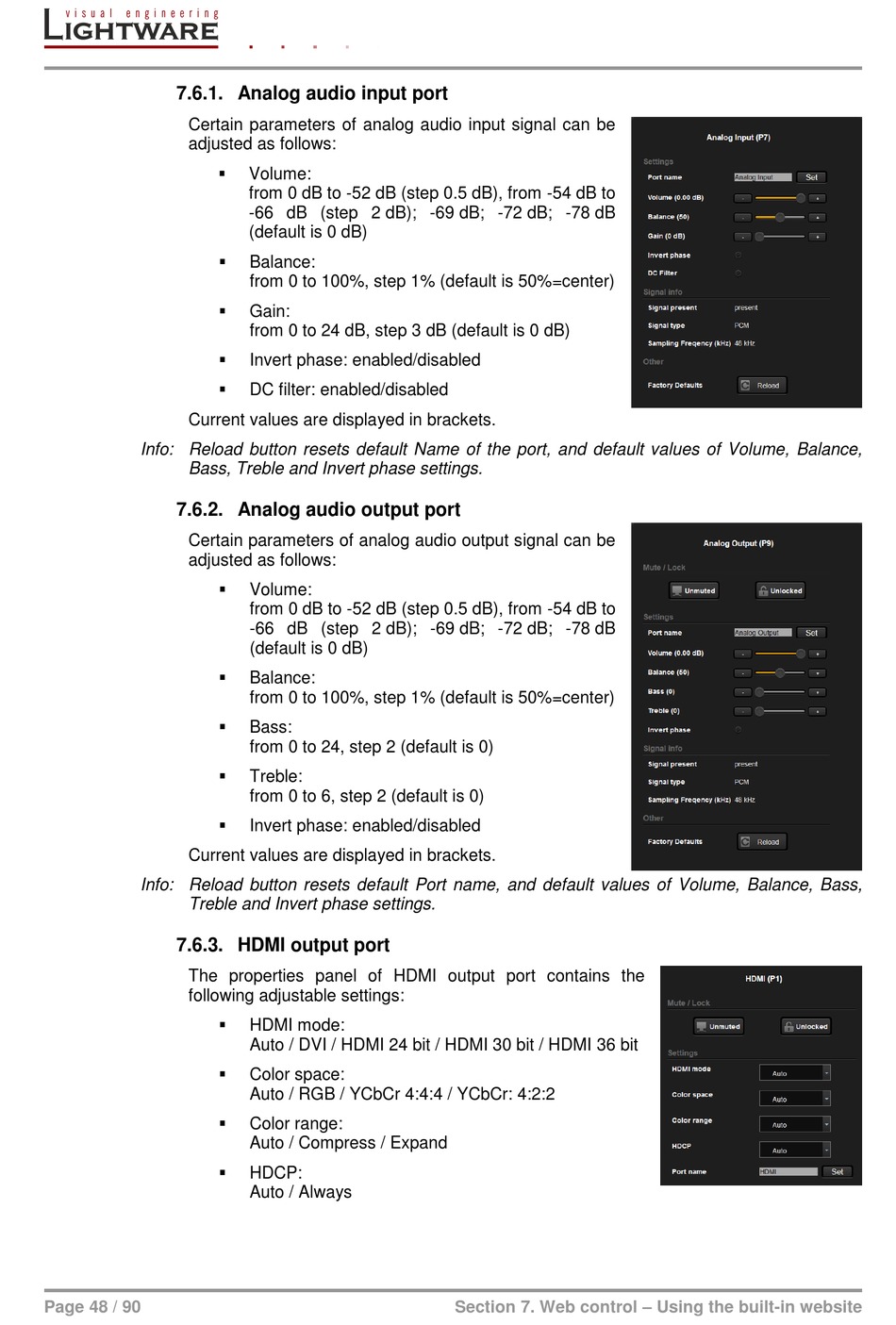

7.6.1. Analog audio input port

Certain parameters of analog audio input signal can be
adjusted as follows:
Current values are displayed in brackets.
Info: Reload button resets default Name of the port, and default values of Volume, Balance,
Bass, Treble and Invert phase settings.

7.6.2. Analog audio output port

Certain parameters of analog audio output signal can be
adjusted as follows:
Current values are displayed in brackets.
Info: Reload button resets default Port name, and default values of Volume, Balance, Bass,
Treble and Invert phase settings.

7.6.3. HDMI output port

The properties panel of HDMI output port contains the
following adjustable settings:
Page 48 / 90

Volume:
from 0 dB to -52 dB (step 0.5 dB), from -54 dB to
-66 dB (step 2 dB); -69 dB; -72 dB; -78 dB
(default is 0 dB)

Balance:
from 0 to 100%, step 1% (default is 50%=center)

Gain:
from 0 to 24 dB, step 3 dB (default is 0 dB)

Invert phase: enabled/disabled

DC filter: enabled/disabled

Volume:
from 0 dB to -52 dB (step 0.5 dB), from -54 dB to
-66 dB (step 2 dB); -69 dB; -72 dB; -78 dB
(default is 0 dB)

Balance:
from 0 to 100%, step 1% (default is 50%=center)

Bass:
from 0 to 24, step 2 (default is 0)

Treble:
from 0 to 6, step 2 (default is 0)

Invert phase: enabled/disabled

HDMI mode:
Auto / DVI / HDMI 24 bit / HDMI 30 bit / HDMI 36 bit

Color space:
Auto / RGB / YCbCr 4:4:4 / YCbCr: 4:2:2

Color range:
Auto / Compress / Expand

HDCP:
Auto / Always
Section 7. Web control – Using the built-in website
