3. Technologies

3.1. Understanding EDID

3.1.1. Basics

EDID stands for Extended Display Identification Data. Simply put, EDID is the passport of
display devices (monitors, TV sets, projectors). It contains information about the display's
capabilities, such as supported resolutions, refresh rates (these are called Detailed
Timings), the type and manufacturer of the display device, etc.
After connecting a DVI source to a DVI display, the source reads out the EDID to determine
the resolution and refresh rate of the image to be transmitted.
Most DVI computer displays have 128-byte long EDID structure. However, Digital
Televisions and HDMI capable displays may have another 128 bytes, which is called E-
EDID and defined by CEA (Consumer Electronics Association). This extension contains
information about additional Detailed Timings, audio capabilities, speaker allocation and
HDMI capabilities. It is important to know, that all HDMI capable devices must have CEA
extension, but not all devices are HDMI capable which have the extension.

3.1.2. Common problems related to EDID

Problem: „I have changed to a different EDID on MODEX-OPTS-TX to have a different
Solution:
Problem: „I have a MODEX-OPTS-TX and I'm using a Lightware factory preset EDID. I
Solution:
Section 3. Technologies

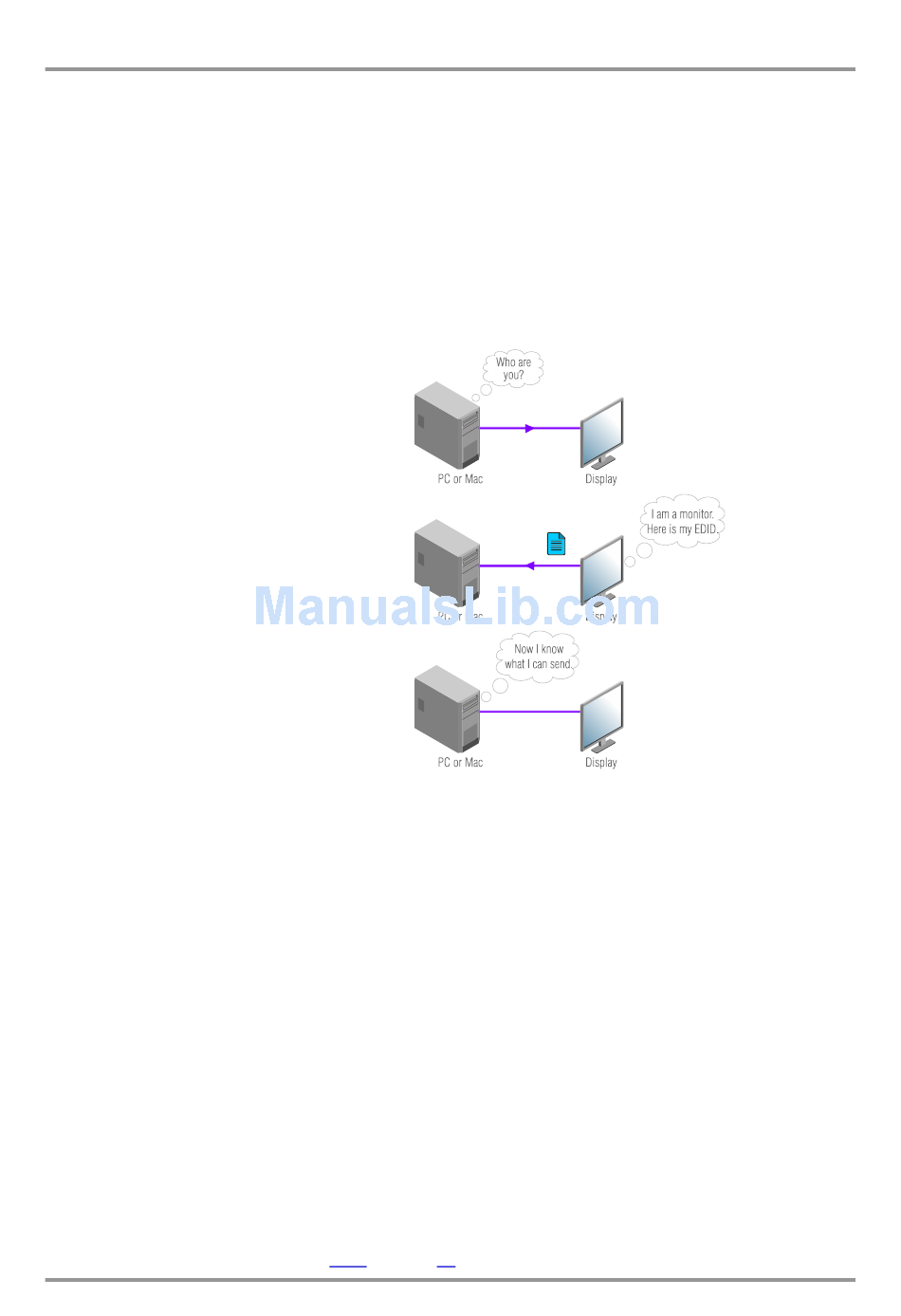

Figure 3-1. EDID communication
resolution but nothing happens."
Some graphics cards and video sources read out the EDID only after power-up
and later they don't sense that EDID has been changed. You need to restart
your source to make it read out the EDID again.
would like to be able to choose from different resolutions, but my source allows
only one resolution."
Most Lightware factory preset EDIDs allow only one resolution, forcing the
sources to output only that particular signal. You need to select the Universal
EDID that supports all common VESA resolutions; see the factory EDID list in
section 4.3.2 on page 24.
