7.7.6. Editing an EDID

Select an EDID from left panel and press Edit button to display Advanced EDID editor
window. Modified EDID can be stored in user memory.

7.7.7. Deleting EDID(s)

The EDID(s) in User memory can be deleted as follows:
Step 1. Click on User button above right panel.
Step 2. Select one or more EDID from the list that are desired to be deleted.
Step 3. Click on Clear selected button to delete selected EDID(s).

7.8. Settings menu

Reboot
When Settings menu is selected, Reboot button is displayed in the right top corner; click
on the button and a pop-up window appears. The extender reboots only if Reboot button is
clicked in the window.

7.8.1. Core submenu

The submenu displays information about MODEX frame. Device label can be also changed
which is visible on the front panel LCD.
Section 7. Web control – Using the built-in website

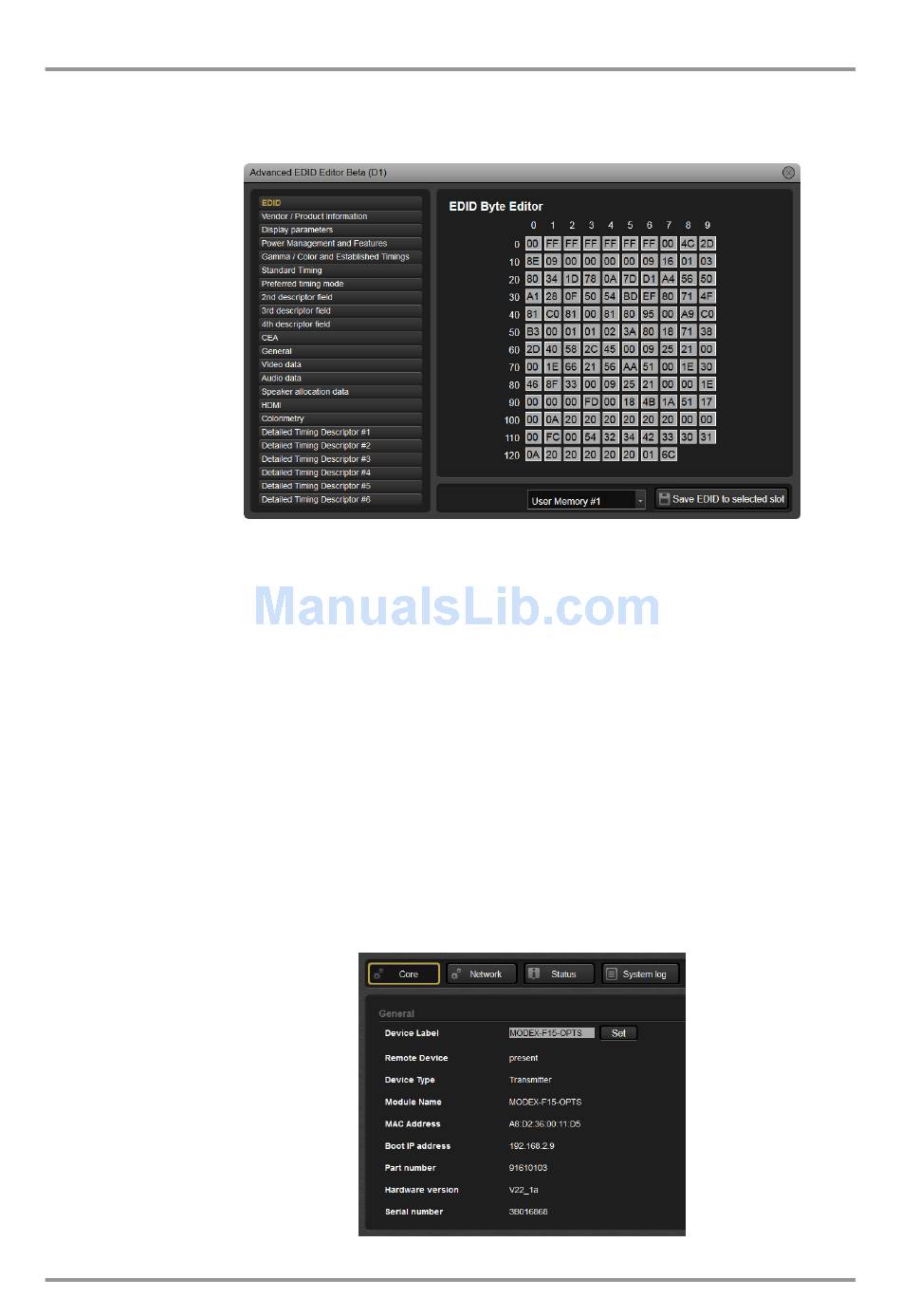

Figure 7-13. Advanced EDID Editor
Figure 7-14. Core submenu
