Required Connections - Icom ic-718 Instruction Manual

3
INSTALLATION AND CONNECTIONS

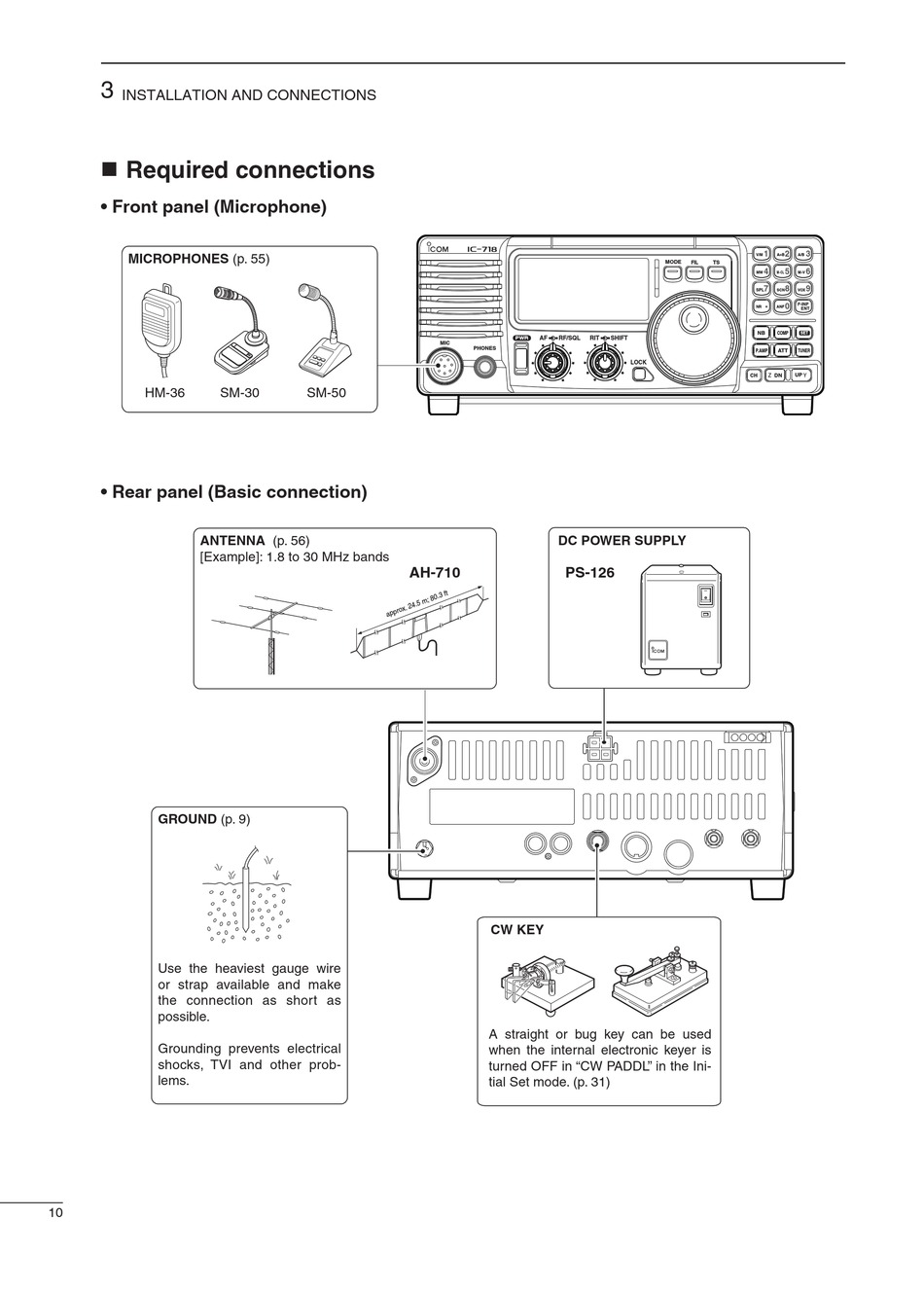

 Required connections
• Front panel (Microphone)
MICROPHONES (p. 55)
HM-36 SM-30
• Rear panel (Basic connection)
ANTENNA (p. 56)
[Example]: 1.8 to 30 MHz bands
GROUND (p. 9)
Use the heaviest gauge wire
or strap available and make
the connection as short as
possible.
Grounding prevents electrical
shocks, TVI and other prob-
lems.
10
i718
MIC
PHONES
SM-50
AH-710
PWR AF RF/SQL RIT SHIFT
LOCK
DC POWER SUPPLY
PS-126
CW KEY
A straight or bug key can be used
when the internal electronic keyer is
turned OFF in "CW PADDL" in the Ini-
tial Set mode. (p. 31)
1 2 3
V/M A=B A/B
MODE FIL TS
4 5 6
MW M-CL M V
7 8 9
SPL SCN VOX
.
F-INP
0
NR ANF
ENT
NB COMP
SET
TUNER
P.AMP ATT
Z Y
CH DN UP
