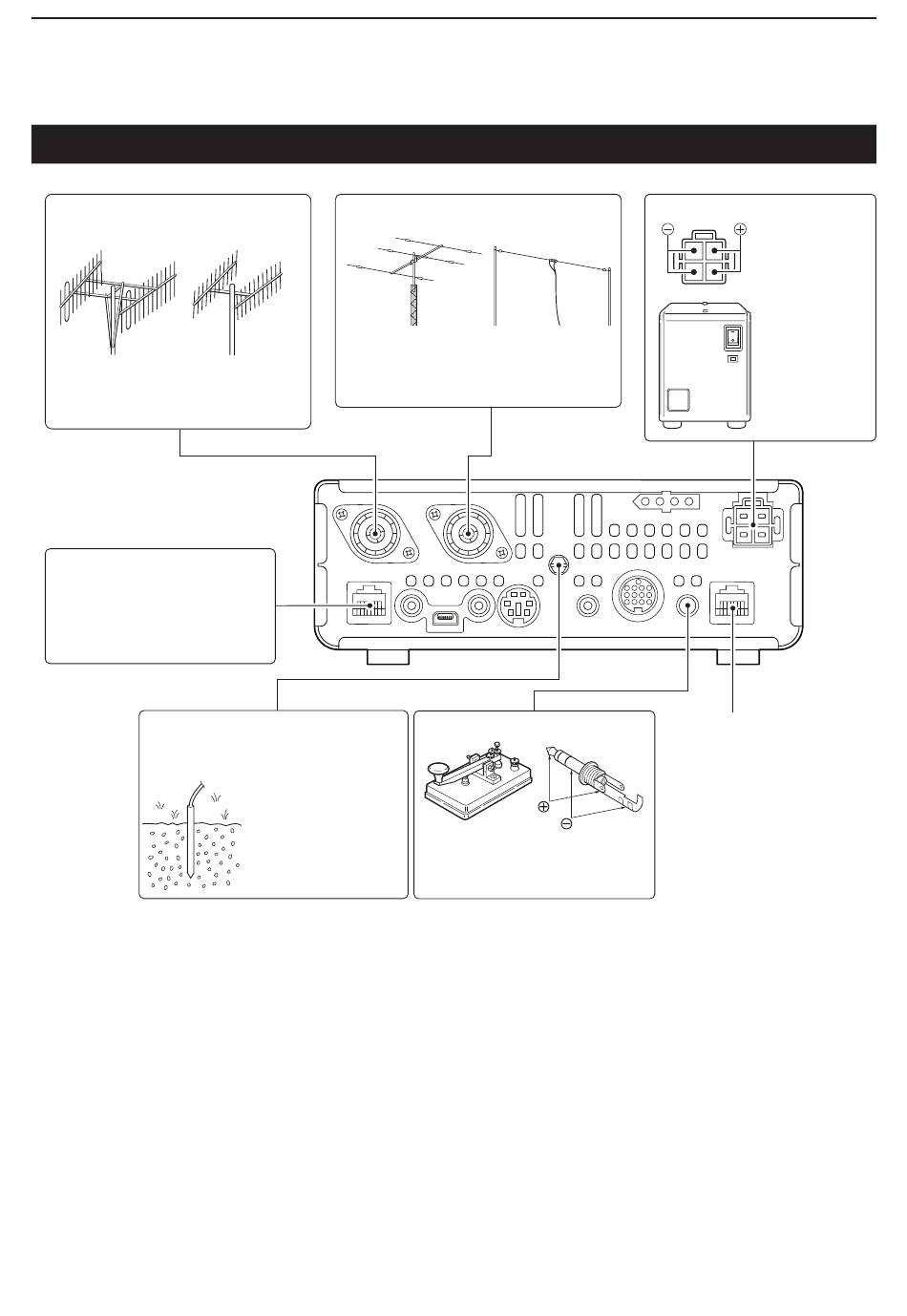

Required Connections to a Transceiver

[ANT2] 144/430MHz BANDS
CONNECTOR (p. 2-2)
Connect a 50 Ω antenna for the
144/430 MHz frequency bands or
74.8 MHz and above.
[MIC] MODULAR MICRO-
PHONE CONNECTOR (p. 2-4)
As with a microphone connec-
tor of the controller, accepts
the supplied microphone.
[GND] GROUND TERMINAL
[ANT1] HF, 50/70 MHz BANDS
CONNECTOR (P. 2-3)
Connect a 50 Ω antenna for the
HF, 50/70 MHz frequency bands or
below 74.8 MHz.
IC-7100
(p. 2-2)
Connect this termi-
nal to a station or
vehicle ground to
prevent electrical
shocks, TVI, BCI
and other problems.
INSTALLATION AND CONNECTIONS
STRAIGHT KEY JACK
Plug diameter: 3.5 mm
Accepts a straight key or an
external electronic keyer.
2-5
[DC 13.8V] DC POWER SUPPLY
Use a power
supply with
13.8 V DC
output and a
capacity of at
least 22 Am-
peres.
PS-126
(Optional)
Connect to the [MAIN UNIT]
connector of the Controller.
(p. 2-4)
/ ⁄ ˝
1
8
2
(P. 2-7)
