CDM-700 High Speed Satellite Modem
Connector Pinouts

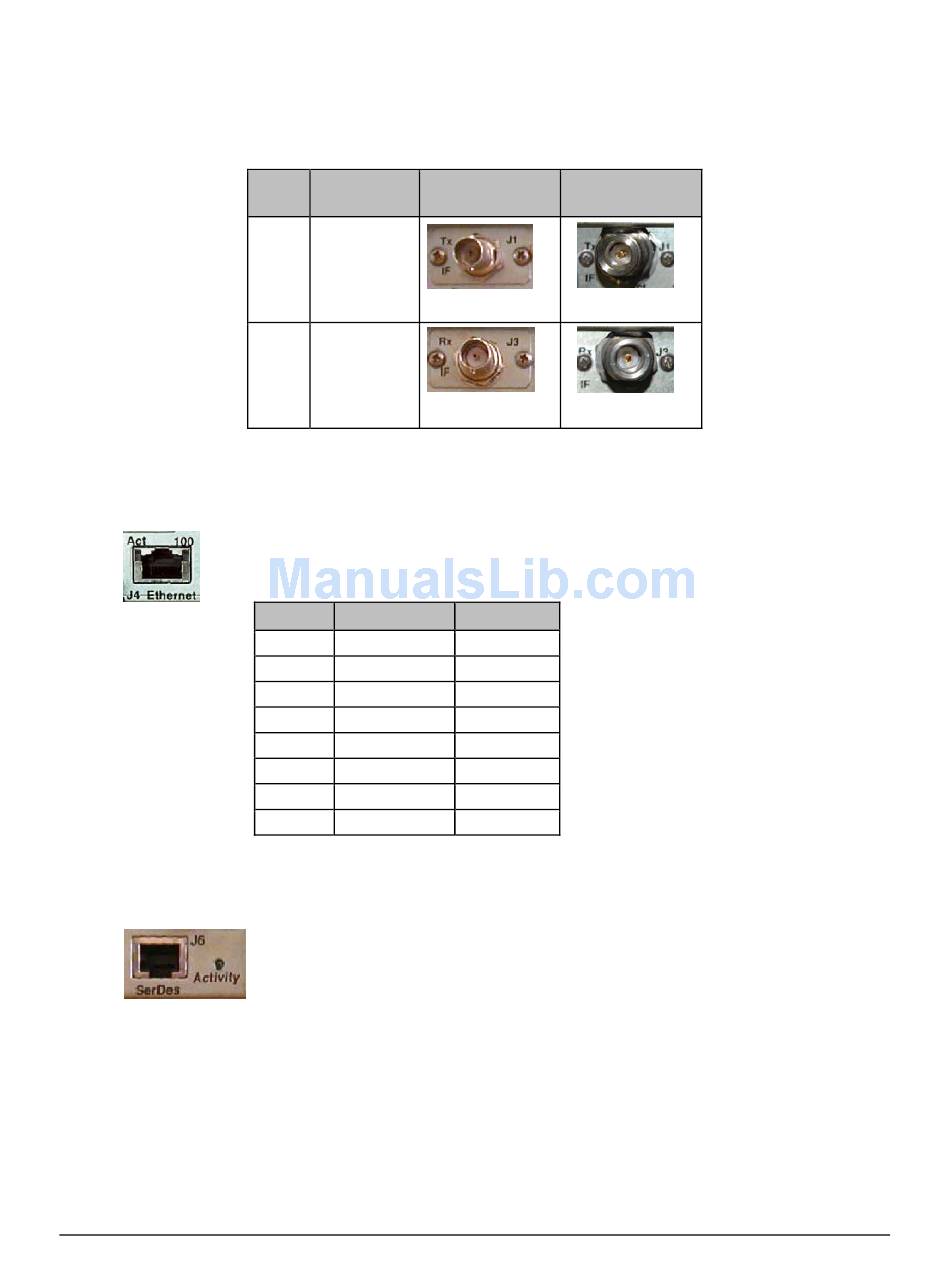

5.1.1 Tx / Rx Connector Pinout – J1 / J3
The J1 (Tx) and J3 (Rx) IF interfaces are as follows:
5.1.2 10/100 Ethernet Management Port Connector Pinout – J4
The J4 Ethernet management port interface is a RJ-45 female connector.
5.1.3 SerDes Port Connector – J6 (Earlier Chassis Only)
Ref.
Description
Des.
Connector Type
J1 Tx-IF Output
J3 Rx-IF Input
Pin # Description
1 Tx+
2 TX-
3 Rx+
4 N/A
5 N/A
6 Rx-
7 N/A
8 N/A
The J6 private communications link is a type RJ-45 female connector – it is not
available for customer use.
70/140 MHz L-Band
Connector Type
BNC Female Type N Female
BNC Female Type N Female
Direction
Out
Out
In
In
5–3
Revision 5
MN/CDM700.IOM
