CDM-700 High Speed Satellite Modem
Web Server Pages
15.5.4

Config Mdm: INTF2 (Interface 2) Page

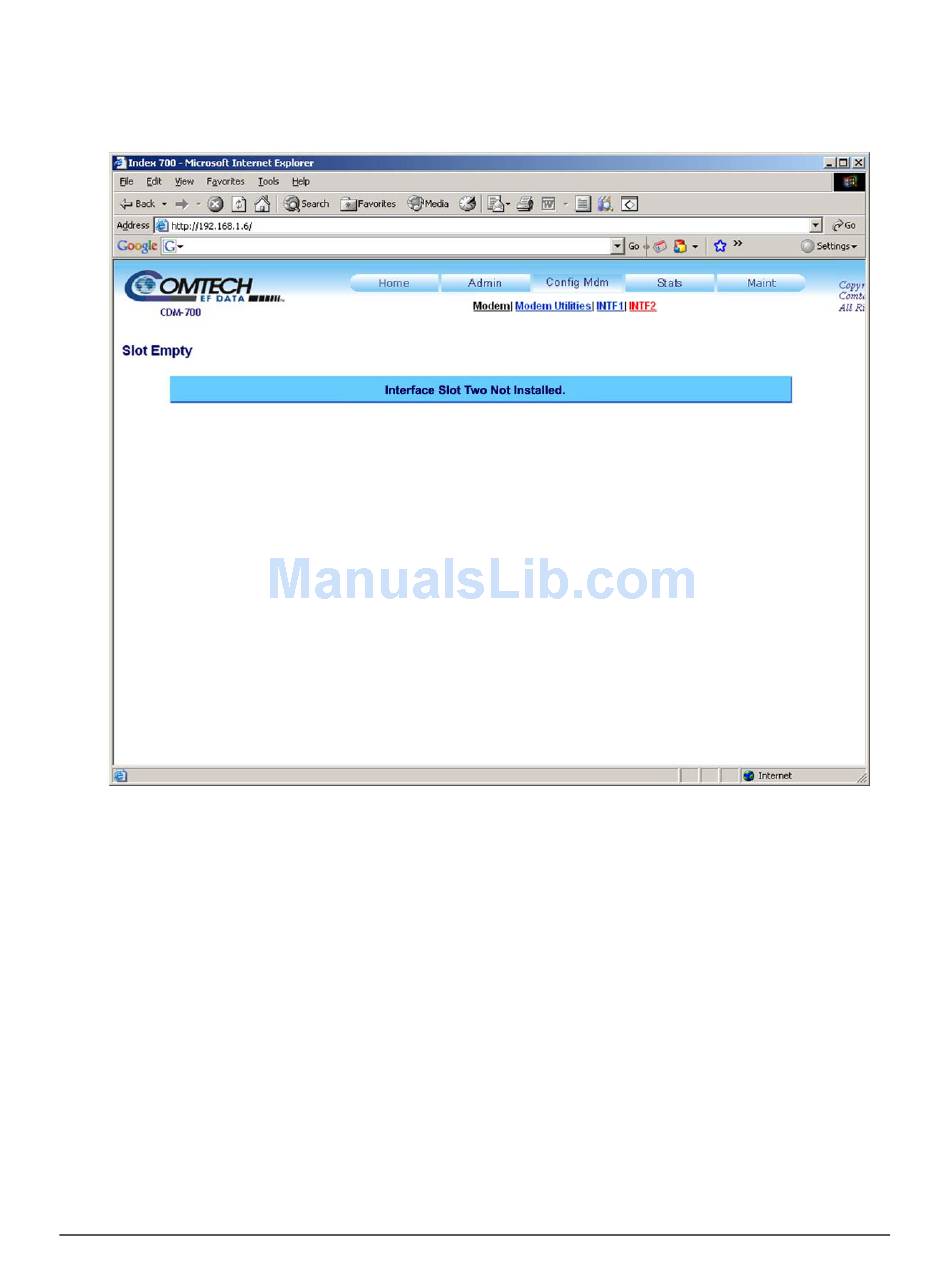

Figure 15-12. Config Mdm: INTF2 page (Default – no module installed)
As with the 'Config Mdm: INTF1' page, the 'Config Mdm: INTF2' page displays the
configuration parameters for the Interface module installed in Slot 2, located on the rear panel of
the CDM-700 chassis.
If there is no interface module present, as shown in Figure 15-12 the page header reads "Slot
Empty" and the message "Interface Slot Two Not Installed." is displayed in place of a usable
configuration window.
15–14
Revision 5
MN/CDM700.IOM
