Config Mdm: Intf1 - E3/T3/Sts1 Page; Figure 15-9. Config Mdm: Intf1 - E3/T3/Sts1 (Dual G.703) Page - Comtech EF Data CDM-700 Installation And Operation Manual

CDM-700 High Speed Satellite Modem
Web Server Pages
15.5.3.1 Config Mdm: INTF1 – E3/T3/STS1 Page

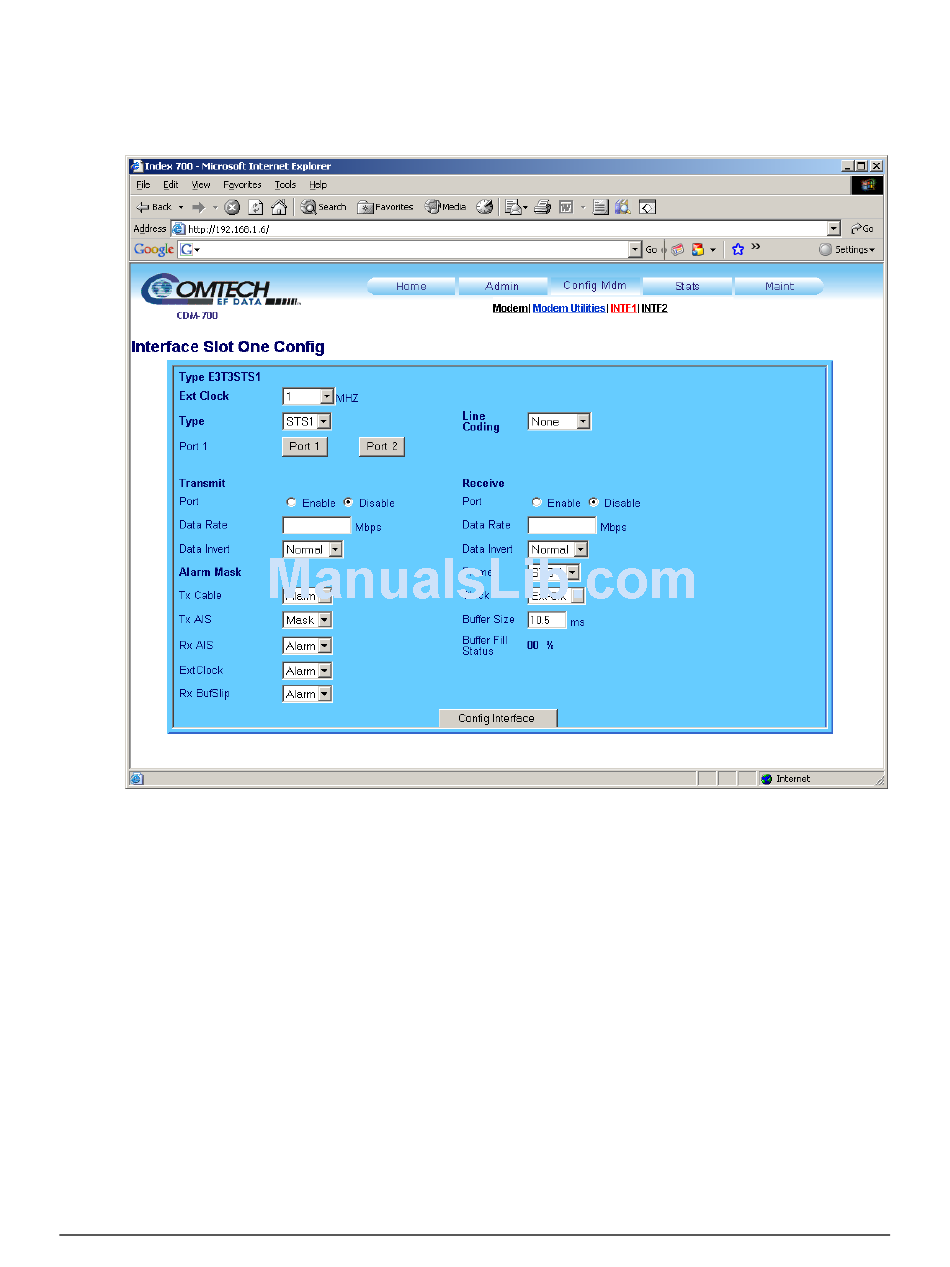

Figure 15-9. Config Mdm: INTF1 – E3/T3/STS1 (Dual G.703) Page
Typically, the configuration interface window on the 'Config Mdm: INTF1' page identifies, in
the upper lefthand corner, the interface module type installed into Slot 1.
As shown in Figure 15-9, the CDI-10 E3/T3/STS1 (Dual G.703) Interface Module is installed in
the Slot 1 position in the CDM-700 chassis.
For details on the configuration parameters available for this interface, refer to Chapter 6.
FRONT PANEL OPERATION and Appendix B. DUAL E3/T3/STS-1 Interface (CDI-10).
Once the desired configuration settings have been made on this page, the User should then click
on Config Interface to save these changes.
