CDM-700 High Speed Satellite Modem
Web Server Pages
15.5.4.1.2

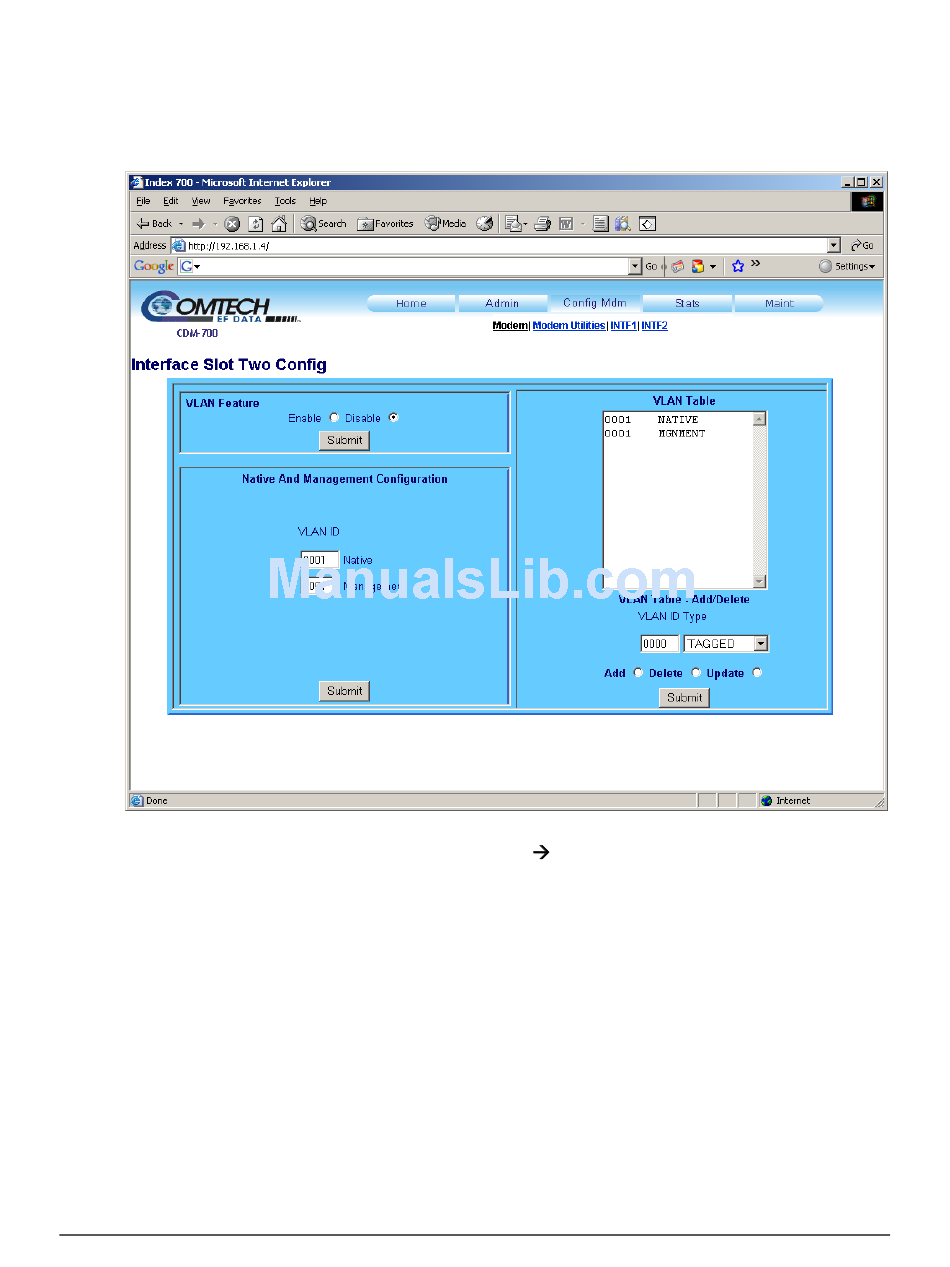

GBEI: VLAN Feature Page
Figure 15-15. Config Mdm: INTF2
Clicking the VLAN button on the GBEI Main Web page (Figure 15-13) allows the User to set up
VLAN operation when SWOP (Switch Operation) is enabled.. For details on the configuration
parameters available for this page, refer to Chapter 6. FRONT PANEL OPERATION.
Once the desired settings have been made in any of the three configurations windows available on
this page (as shown in Figure 15-15), the User should then click on Submit to save these change.
GBEI VLAN Feature Page
15–17
Revision 5
MN/CDM700.IOM
