CDM-700 High Speed Satellite Modem
Web Server Pages
15.5.3.3 Config Mdm: INTF1 – HSSI Page
As shown in Figure 15-11, the CDI-60 HSSI Interface Module is installed in the Slot 1 position
in the CDM-700 chassis.
For details on the configuration parameters available for this interface, refer to Chapter 6.
FRONT PANEL OPERATION and Appendix D. HSSI Interface (CDI-60).
Once the desired configuration settings have been made on this page, the User should then click
on Submit to save these change.

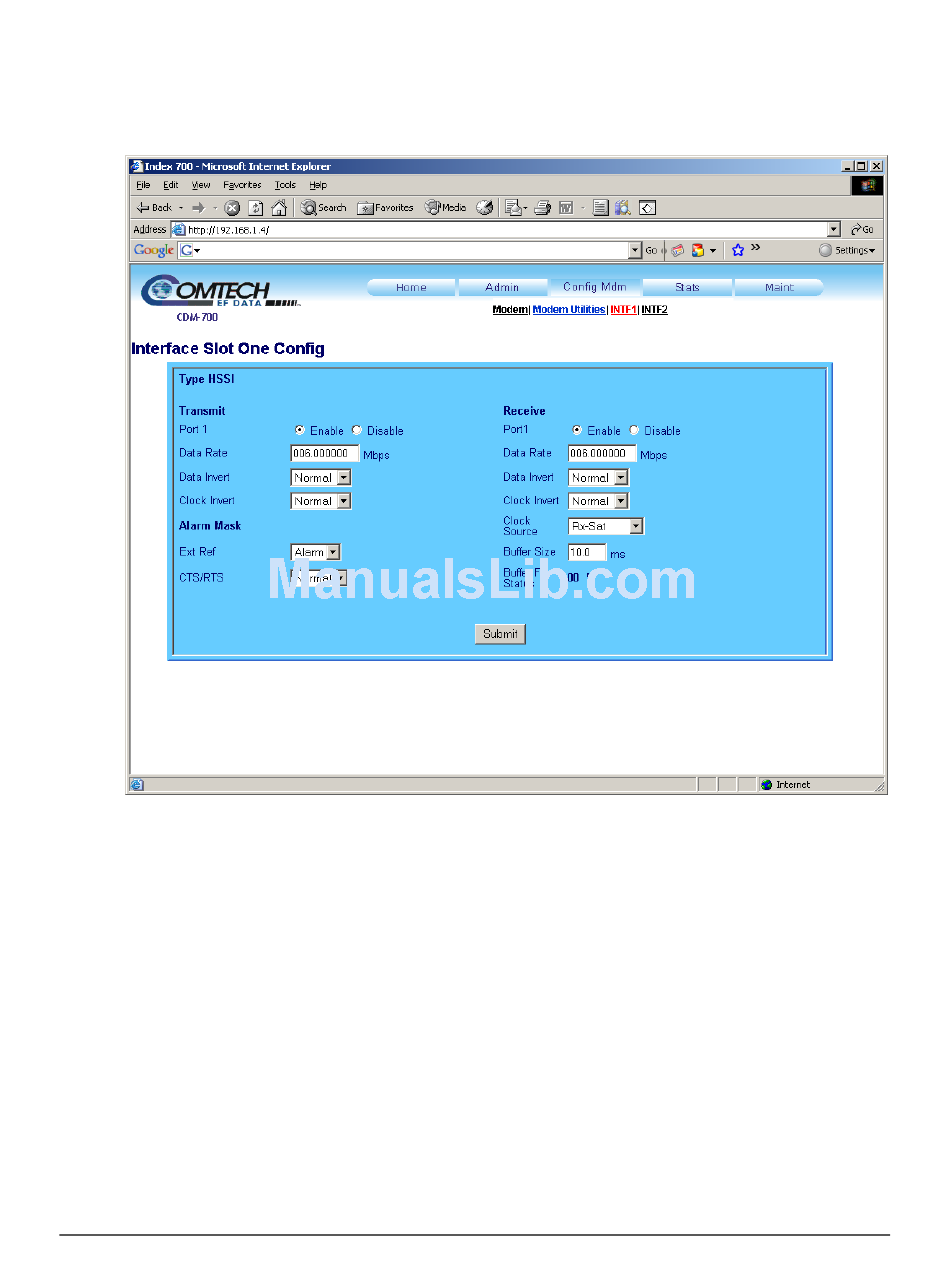

Figure 15-11. Config Mdm: INTF1 – HSSI Page
15–13
Revision 5
MN/CDM700.IOM
