CDM-700 High Speed Satellite Modem
Web Server Pages
15.5 Config Mdm (Modem Configuration) Pages
From this main page, the User may select from the Modem, Modem Utilities, INTF1 and
INTF2 pages. As shown in Figure 15-6, the 'Config Mdm' pages are used to configure the
Modulator, Demolator, and installed Interfaces (including E3/T3/STS1, OC3, HSSI, and Gigabit
Ethernet).
15.5.1

Config Mdm: Modem Page

For details pertaining to the configuration parameters available on this page, refer to Chapter 6.
FRONT PANEL OPERATION.
Once the desired configuration settings have been made on this page, the User should then click
on ConfigModem to save these changes.

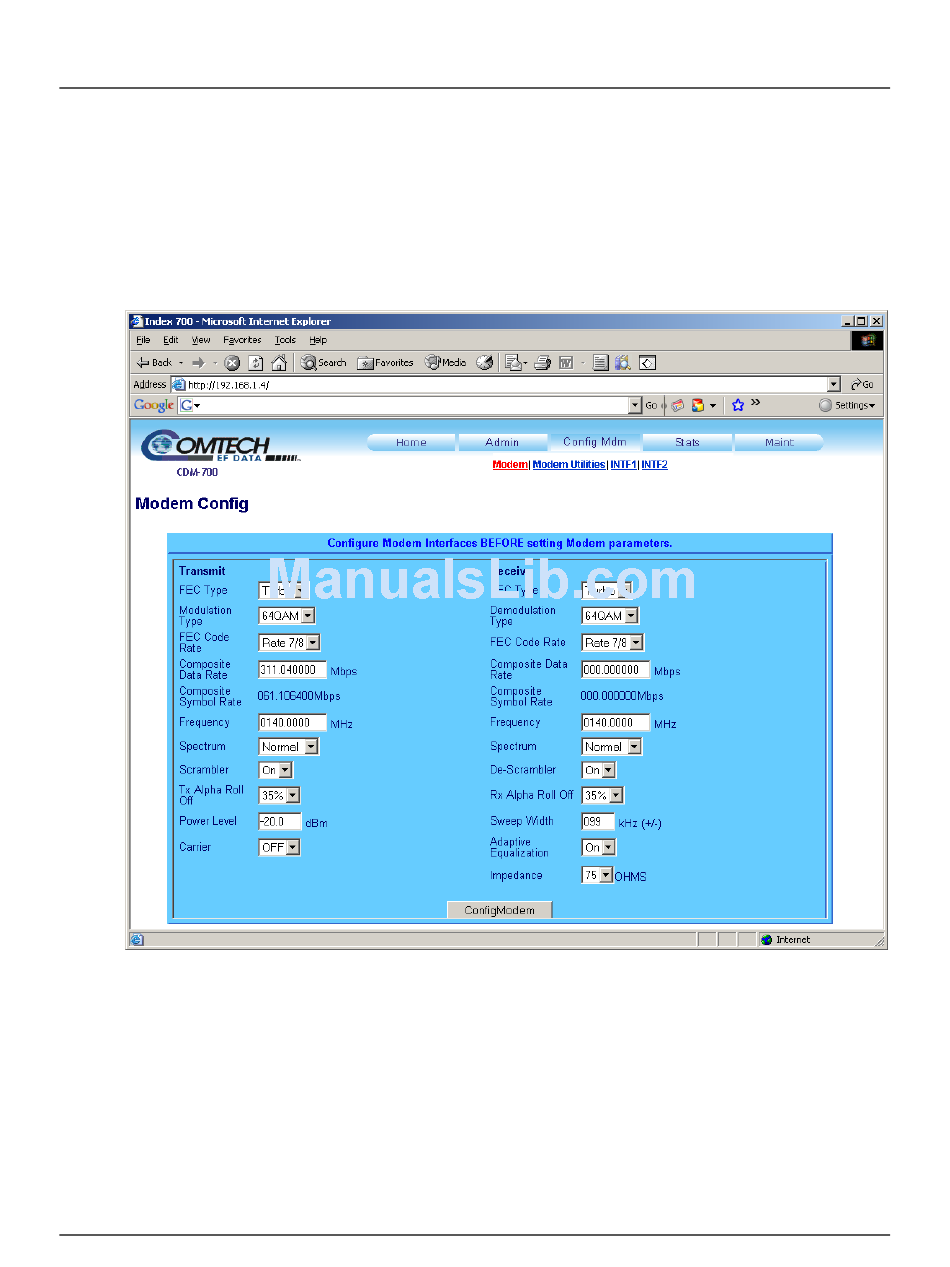

Figure 15-6. Config Mdm: Modem Page

15–8
Revision 5
MN/CDM700.IOM
