Setting Dtmf Transfer Speed; Tone Frequency And Dtcs Code - Icom IC-92A Instruction Manual

12
OTHER FUNCTIONS

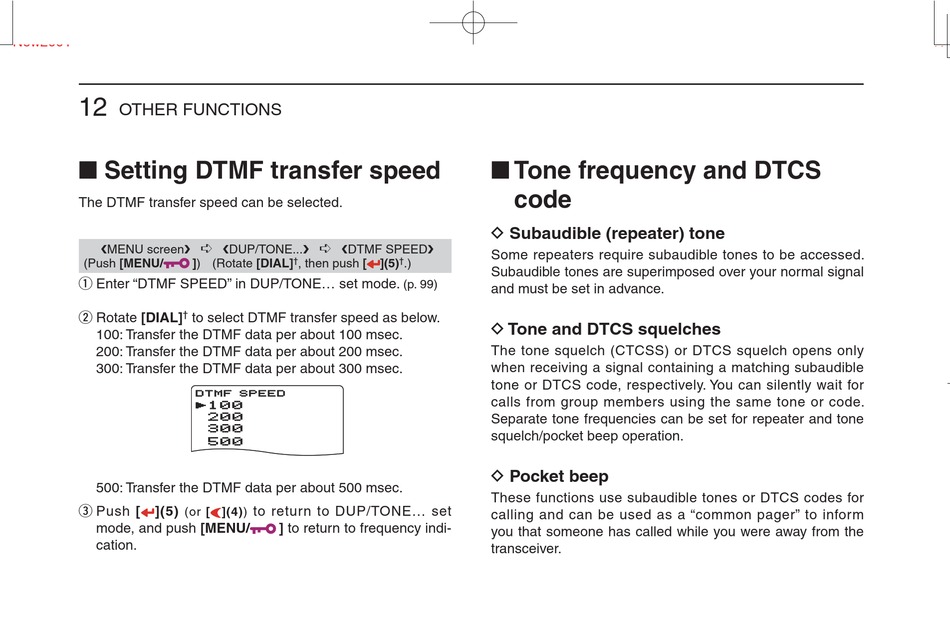

■ Setting DTMF transfer speed

The DTMF transfer speed can be selected.
❮MENU screen❯
(Push [MENU/ ]) (Rotate [DIAL]
q Enter "DTMF SPEED" in DUP/TONE... set mode.
w Rotate [DIAL]
†
to select DTMF transfer speed as below. ***** MENU *****
100: Transfer the DTMF data per about 100 msec.
200: Transfer the DTMF data per about 200 msec.
r
300: Transfer the DTMF data per about 300 msec.
DTMF SPEED DTMF SPEED
r
500: Transfer the DTMF data per about 500 msec.
e Push [ ](5)
(or [ ](4))
mode, and push [MENU/
cation.
120
➪ ➪
❮DUP/TONE...❯ ❮DTMF SPEED❯
†
, then push [
DV SET MODE
SCAN
DUP/TONE...
100
200
300
500
to return to DUP/TONE... set
] to return to frequency indi-
■ Tone frequency and DTCS
code
D Subaudible (repeater) tone
Some repeaters require subaudible tones to be accessed.
†
](5) .)
Subaudible tones are superimposed over your normal signal
(p. 99)
and must be set in advance.
D Tone and DTCS squelches
The tone squelch (CTCSS) or DTCS squelch opens only
when receiving a signal containing a matching subaudible
tone or DTCS code, respectively. You can silently wait for
calls from group members using the same tone or code.
Separate tone frequencies can be set for repeater and tone
squelch/pocket beep operation.
D Pocket beep
These functions use subaudible tones or DTCS codes for
calling and can be used as a "common pager" to inform
you that someone has called while you were away from the
transceiver.
