RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Administrator's Guide
 FECC
 Skins. The video cells are displayed on the endpoint's default background.
 IVR functionality
 Conference Gathering phase
 Password protected conferences as DTMF input for passwords cannot be processed
 All DTMF enabled features during the conference
 Manual selection of video layout
 Chairperson functionality
 Media Encryption
 Recording of SVC Only conferences
 Text messaging using Message Overlay

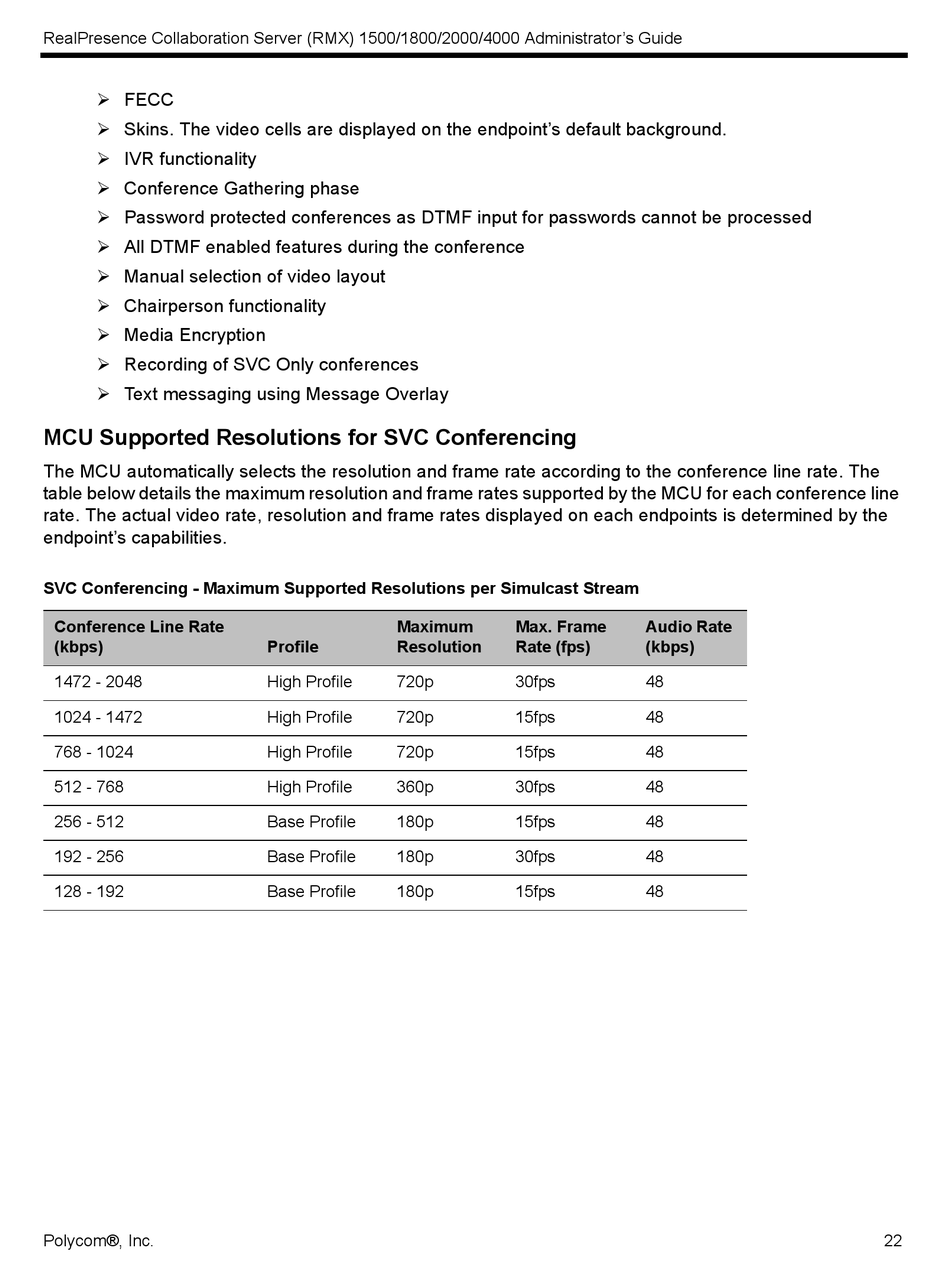

MCU Supported Resolutions for SVC Conferencing

The MCU automatically selects the resolution and frame rate according to the conference line rate. The
table below details the maximum resolution and frame rates supported by the MCU for each conference line
rate. The actual video rate, resolution and frame rates displayed on each endpoints is determined by the
endpoint's capabilities.
SVC Conferencing - Maximum Supported Resolutions per Simulcast Stream
Conference Line Rate
(kbps)
1472 - 2048
1024 - 1472
768 - 1024
512 - 768
256 - 512
192 - 256
128 - 192
Polycom®, Inc.
Maximum
Profile Resolution
High Profile 720p
High Profile 720p
High Profile 720p
High Profile 360p
Base Profile 180p
Base Profile 180p
Base Profile 180p
Max. Frame Audio Rate
Rate (fps) (kbps)
30fps 48
15fps 48
15fps 48
30fps 48
15fps 48
30fps 48
15fps 48
22
