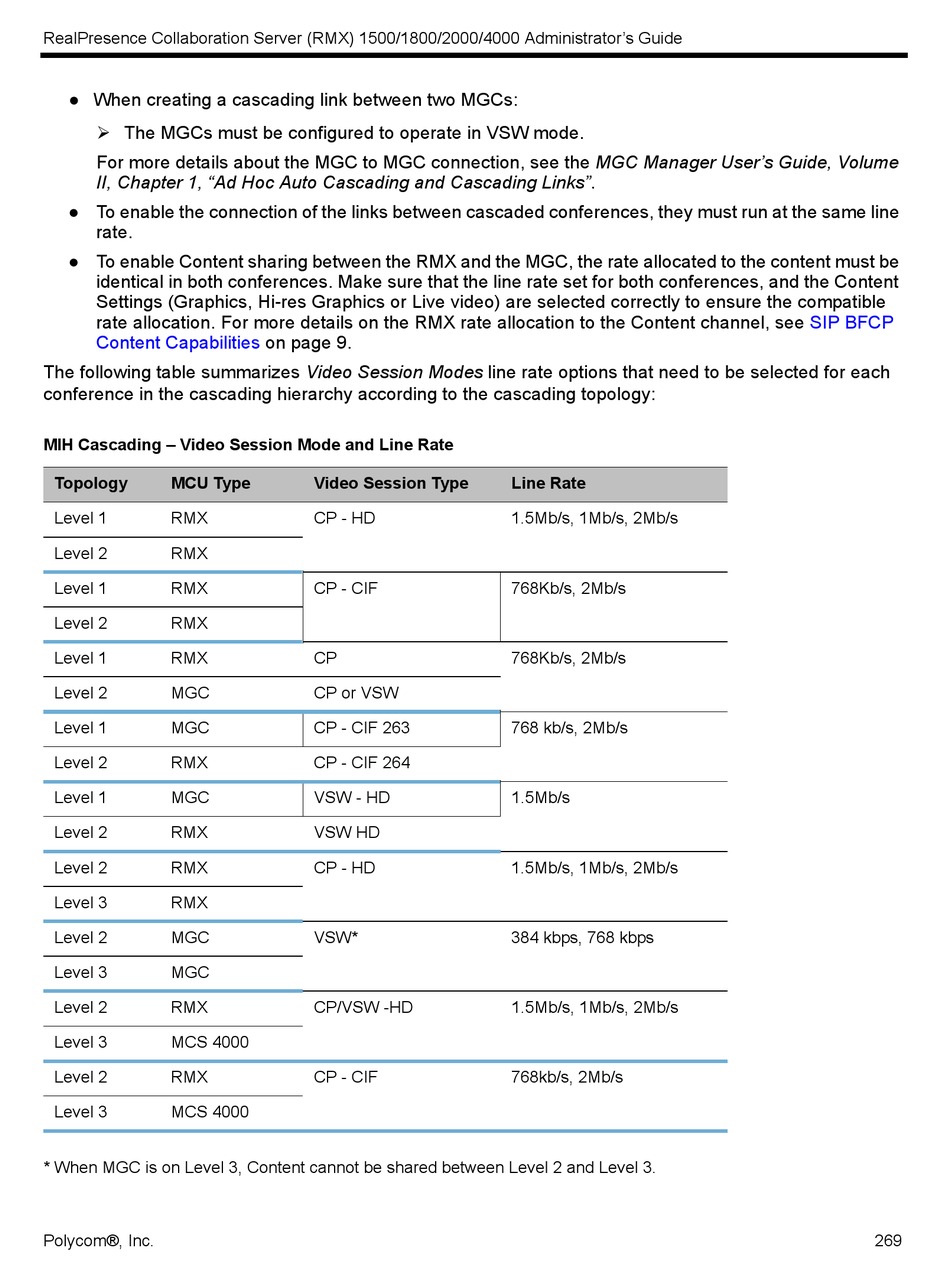

RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Administrator's Guide
● When creating a cascading link between two MGCs:
 The MGCs must be configured to operate in VSW mode.
For more details about the MGC to MGC connection, see the MGC Manager User's Guide, Volume
II, Chapter 1, "Ad Hoc Auto Cascading and Cascading Links".
● To enable the connection of the links between cascaded conferences, they must run at the same line
rate.
● To enable Content sharing between the RMX and the MGC, the rate allocated to the content must be
identical in both conferences. Make sure that the line rate set for both conferences, and the Content
Settings (Graphics, Hi-res Graphics or Live video) are selected correctly to ensure the compatible
rate allocation. For more details on the RMX rate allocation to the Content channel, see
Content Capabilities
The following table summarizes Video Session Modes line rate options that need to be selected for each
conference in the cascading hierarchy according to the cascading topology:
MIH Cascading – Video Session Mode and Line Rate
Topology MCU Type
Level 1 RMX
Level 2 RMX
Level 1 RMX
Level 2 RMX
Level 1 RMX
Level 2 MGC
Level 1 MGC
Level 2 RMX
Level 1 MGC
Level 2 RMX
Level 2 RMX
Level 3 RMX
Level 2 MGC
Level 3 MGC
Level 2 RMX
Level 3 MCS 4000
Level 2 RMX
Level 3 MCS 4000
* When MGC is on Level 3, Content cannot be shared between Level 2 and Level 3.
Polycom®, Inc.
on page 9.
Video Session Type
CP - HD
CP - CIF
CP
CP or VSW
CP - CIF 263
CP - CIF 264
VSW - HD
VSW HD
CP - HD
VSW*
CP/VSW -HD
CP - CIF
Line Rate
1.5Mb/s, 1Mb/s, 2Mb/s
768Kb/s, 2Mb/s
768Kb/s, 2Mb/s
768 kb/s, 2Mb/s
1.5Mb/s
1.5Mb/s, 1Mb/s, 2Mb/s
384 kbps, 768 kbps
1.5Mb/s, 1Mb/s, 2Mb/s
768kb/s, 2Mb/s
SIP BFCP
269
