RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Administrator's Guide

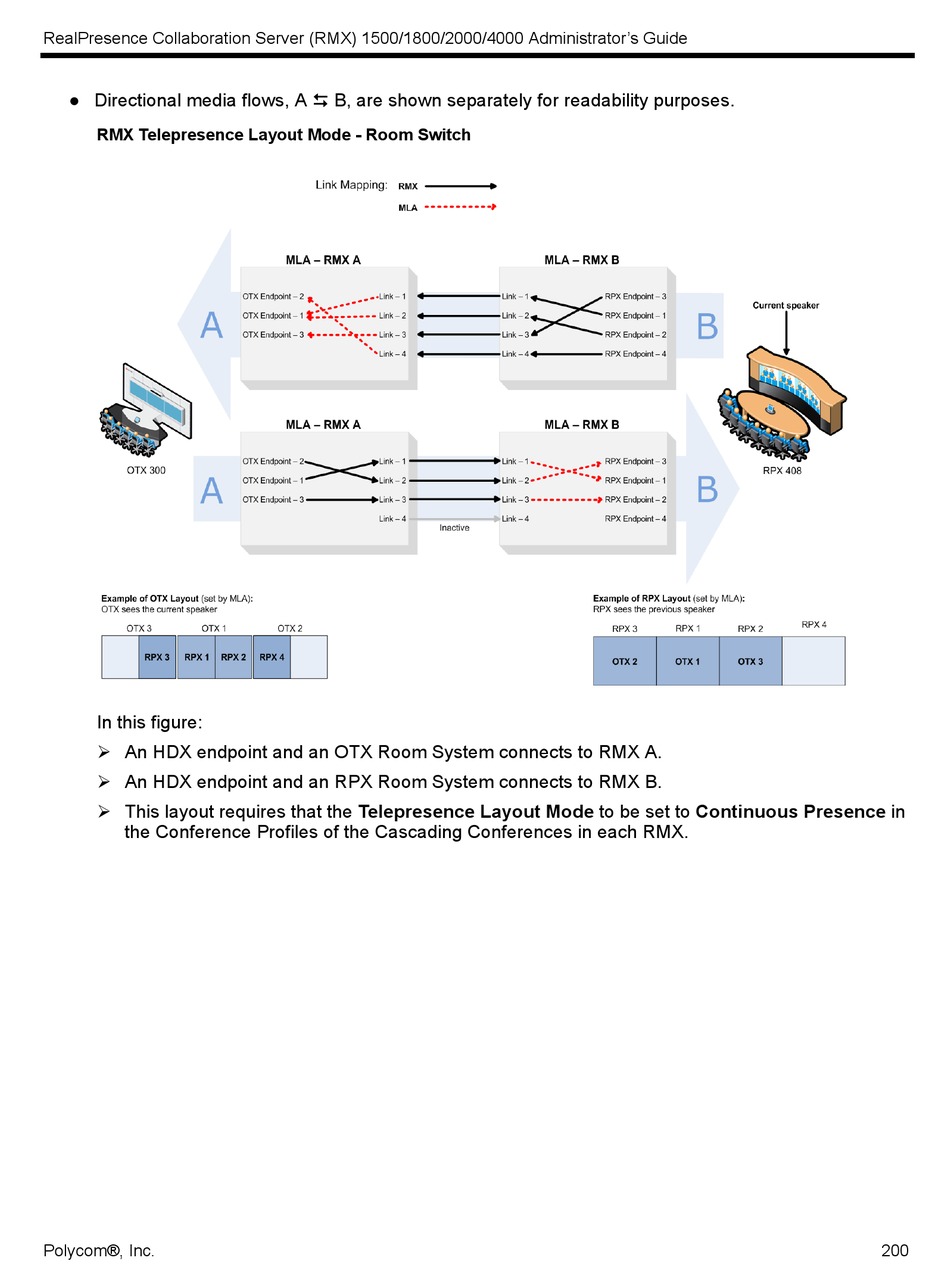

● Directional media flows, A  B, are shown separately for readability purposes.
RMX Telepresence Layout Mode - Room Switch
In this figure:
 An HDX endpoint and an OTX Room System connects to RMX A.
 An HDX endpoint and an RPX Room System connects to RMX B.
 This layout requires that the Telepresence Layout Mode to be set to Continuous Presence in
the Conference Profiles of the Cascading Conferences in each RMX.
Polycom®, Inc. 200
