D Command formats

• Operating frequency

Command: 00, 03, 05, 1C 03

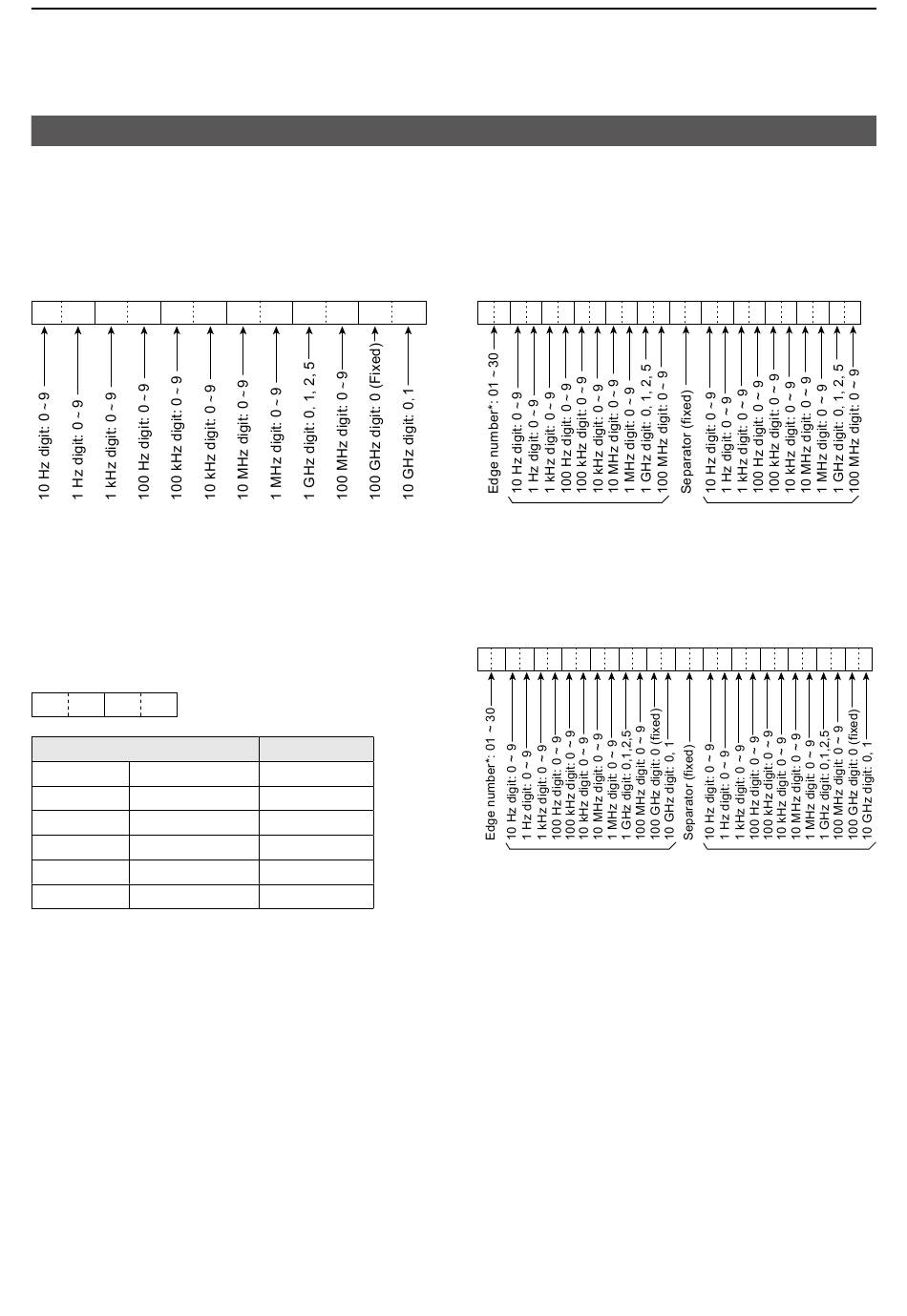

1 2 3
X X X X X
L When the 5600 MHz or lower band is selected, the
number of digits is 10 (1 ~ 5)�
When the 10 GHz band is selected, the number of digits
is 12 (1 ~ 6) from 100 GHz to 1 Hz�

• Operating mode

Command: 01, 04, 06
1 2
X X X X
1Operating mode
00 :LSB 07 :CW-R
01 :USB 08 :RTTY-R
02 :AM 17 :DV
03 :CW 22 :DD*
04 :RTTY 23 :ATV*
05 :FM —
* The operating mode can be set when the 1200 MHz or
higher band is selected�
L Filter setting, (2) can be skipped with command 01� In
that case, "FIL1" is selected with command 01�
4 5
X X X X X 0
2Filter setting
01 :FIL1
02 :FIL2
03 :FIL3
—
—
—

• Band edge frequency settings

Command: 02*, 1E 01, 1E 03
6 1 2 3
X
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
* When obtaining the edge number (by command "02"), the
edge number (1) is not returned�
L When the 10 GHz band is selected, the each Edge
frequency is 12 digits (6 bytes) from 100 GHz to 1 Hz�
1 2 3 4 5 6 7 8 9 10 11 12
X X X X X X X X X X X X
Lower edge
16
4 5 6 7 8 9
Higher edge
0 X 2 D X X X X X X X X
10 11 12
13 14
X X 0 X
Higher edge
