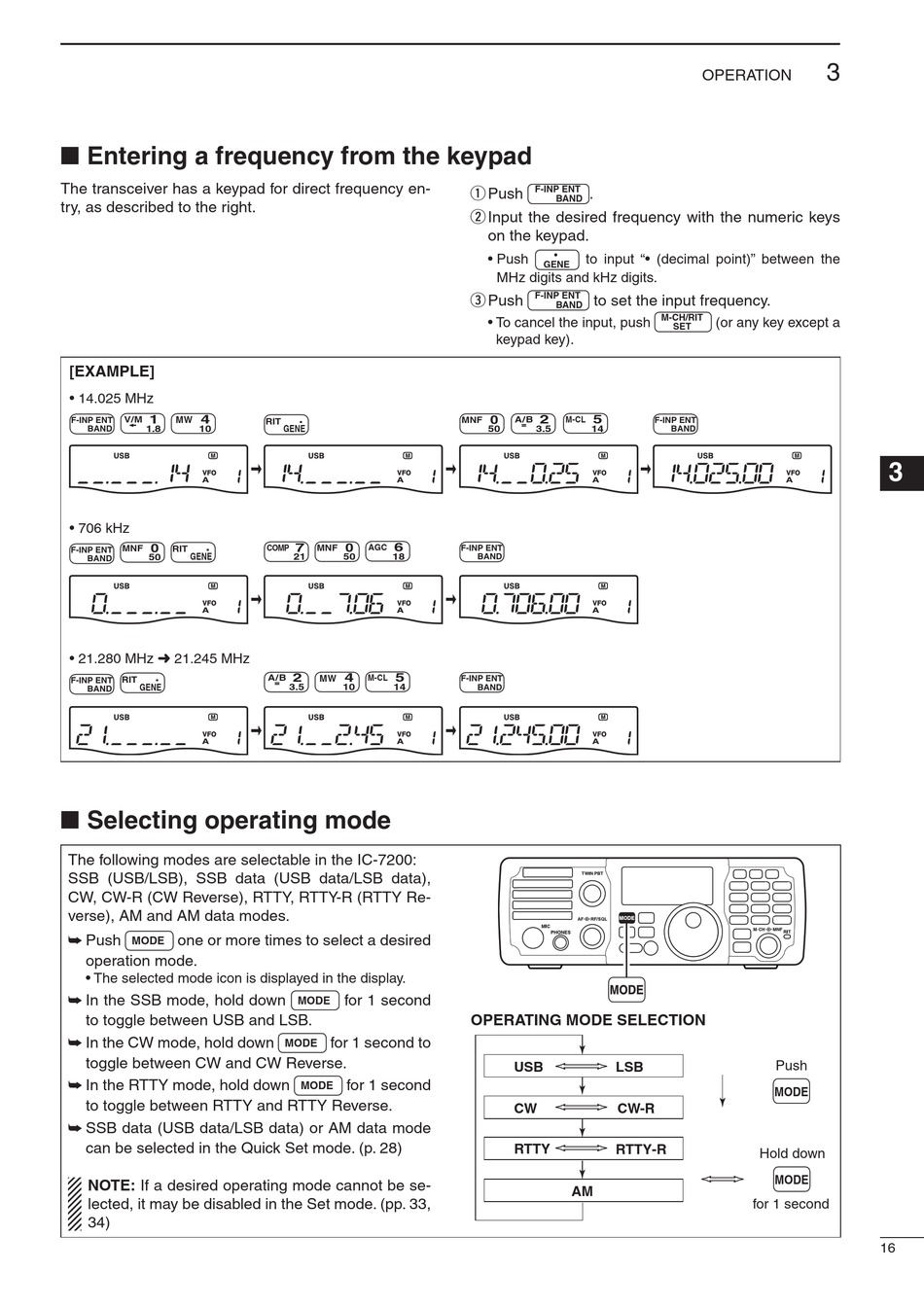

Entering a frequency from the keypad

■
The transceiver has a keypad for direct frequency en-
try, as described to the right.
[EXAMPLE]
• 14.025 MHz
1 4
V/M MW
F-INP ENT
BAND 1.8 10
• 706 kHz
.
0
MNF RIT
F-INP ENT
GENE
50
BAND
• 21.280 MHz � 21.245 MHz
.
RIT
F-INP ENT
GENE
BAND
■

Selecting operating mode

The following modes are selectable in the IC-7200:
SSB (USB/LSB), SSB data (USB data/LSB data),
CW, CW-R (CW Reverse), RTTY, RTTY-R (RTTY Re-
verse), AM and AM data modes.
➥
Push one or more times to select a desired
MODE
operation mode.
• The selected mode icon is displayed in the display.
➥
In the SSB mode, hold down
to toggle between USB and LSB.
➥
In the CW mode, hold down
toggle between CW and CW Reverse.
➥
In the RTTY mode, hold down
to toggle between RTTY and RTTY Reverse.
➥
SSB data (USB data/LSB data) or AM data mode
can be selected in the Quick Set mode. (p. 28)
NOTE: If a desired operating mode cannot be se-
lected, it may be disabled in the Set mode. (pp. 33,
34)
.
