8

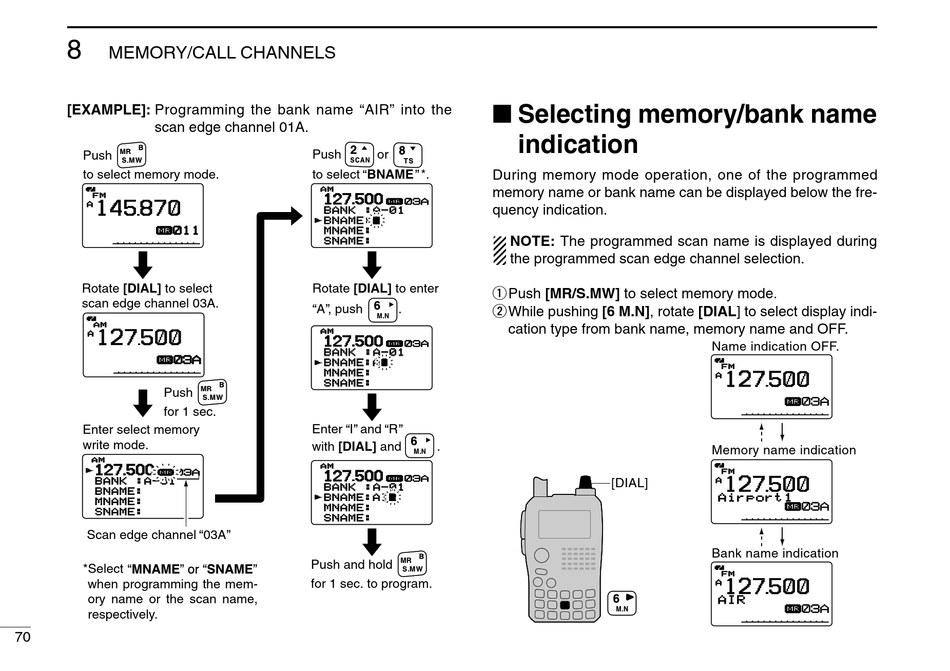

MEMORY/CALL CHANNELS
[EXAMPLE]: Programming the bank name "AIR" into the
scan edge channel 01A.
Push
to select memory mode.
FM FM
145 870
A
µ 011
Rotate [DIAL] to select
scan edge channel 03A.
AM AM
127 500
A
µ 03A
Push
for 1 sec.
Enter select memory
write mode.
AM AM
127 500
r µ 03A
BANK :A-01 BANK :A-01
BNAME: BNAME:
MNAME: MNAME:
SNAME: SNAME:
Scan edge channel 03A
*Select
when programming the mem-
ory name or the scan name,
respectively.
70
Push or
to select BNAME *.
AM AM
127 500
µ 03A
BANK :A-01 BANK :A-01
BNAME:A BNAME:A
r
MNAME: MNAME:
SNAME: SNAME:
Rotate [DIAL] to enter
A , push .
AM AM
127 500
µ 03A
BANK BANK :A-01 :A-01
BNAME:AI BNAME:AI
r
MNAME: MNAME:
SNAME: SNAME:
Enter I and R
with [DIAL] and .
AM AM
127 500
µ 03A
BANK :A-01 BANK :A-01
BNAME:AIR BNAME:AIR
r
MNAME: MNAME:
SNAME: SNAME:
Push and hold
for 1 sec. to program.
I Selecting memory/bank name
indication
During memory mode operation, one of the programmed
memory name or bank name can be displayed below the fre-
quency indication.
NOTE: The programmed scan name is displayed during
the programmed scan edge channel selection.
q Push [MR/S.MW] to select memory mode.
wWhile pushing [6 M.N], rotate [DIAL] to select display indi-
cation type from bank name, memory name and OFF.
[DIAL]
Name indication OFF.
FM FM
127 500
A
µ 03A
Memory name indication
FM FM
127 500
A
Airport1
µ 03A
Bank name indication
FM FM
127 500
A
AIR
µ 03A
