Changing Your Computer's Hardware Configuration
Opening the System Unit

Removing the Front Panel

The front panel must be removed in order to install a CD drive, a DDS
tape drive, or a floppy drive—see their respective sections later in this
chapter for detailed instructions on the installation process for each type
of device. If you need to remove the front panel (the panel that contains
the door), perform the following steps:
1. Shut down and unplug the system as described above. Unlock the
door on the front of the unit, if necessary, and swing it open.
2. Remove the two panel-detach screws on the right edge of the panel,
visible after you open the door.
3. Swing (clockwise) the entire front panel open 45 to 90 degrees—the
hinges are on the left, as you look at the front of the unit.
4. Once you have swung the panel open on the hinges on the left, pull it
straight out to remove it.

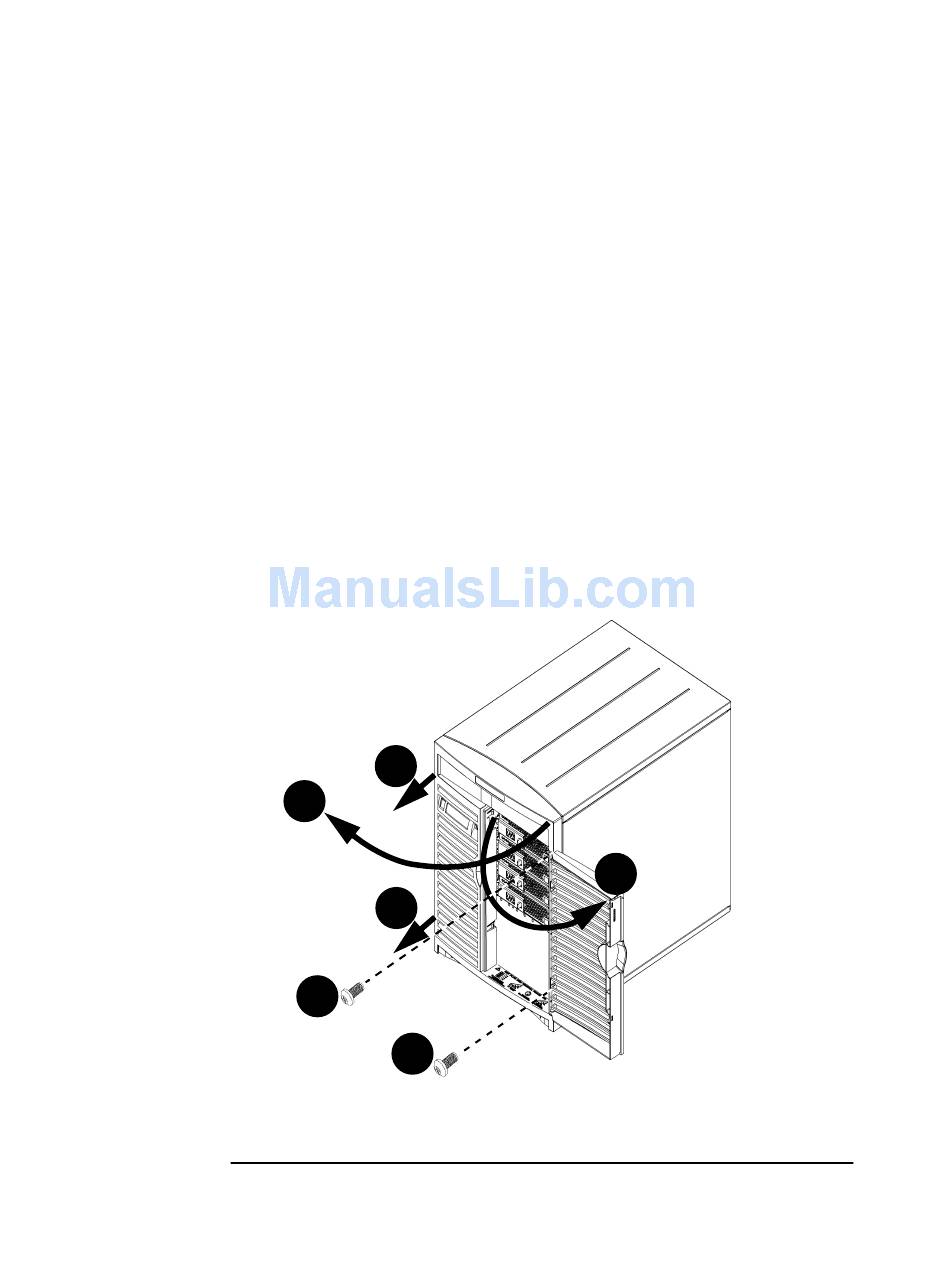

Figure 2-1 Removing the Front Panel
To replace the front panel, perform the above steps in the reverse order.
