System Overview

System Unit, Front View

System Unit, Front View
Before powering on your system, you should become familiar with the
system unit controls:

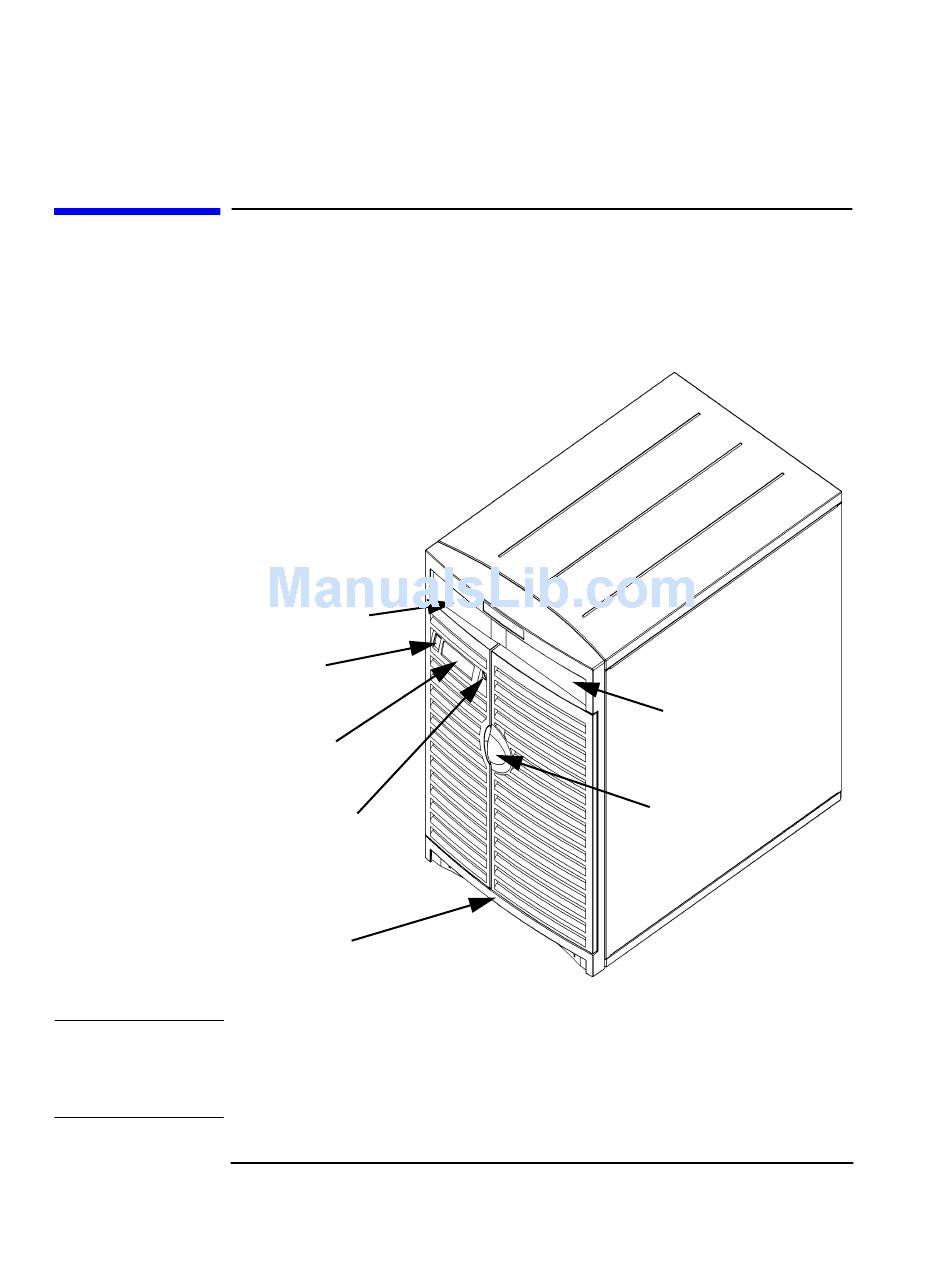

Figure 1-2 HP V
The Lifting Ledge is strong enough to use as a handhold when lifting the
CAUTION
unit. Note that the computer is designated for two-man lifting; it weighs
about 90 lbs. Do not attempt to lift it by yourself, or injury may result.
22
J5000 /J7000 Front View
ISUALIZE
Floppy Drive or
DDS Drive Bay
Power Switch
2-line, 16-character LCD
Panel lock
Lifting Ledge
CD Drive Bay
Door Handle
Chapter 1
