Memory; Figure 11. Dimm Configuration Diagram - Intel SR1630BC - Server System - 0 MB RAM Service Manual

Memory

The Intel
®
Intel Server System SR1630BC supports two DIMMs per channel. The silkscreen on the
board for the DIMMs displays DIMM_A1, DIMM_A2, DIMM_B1, DIMM_B2,
DIMM_D1, DIMM_D2, DIMM_E1, DIMM_E2. See Figure 11. The minimal memory
population possible is DIMM_A1.
For two slots per channel configurations, the server board requires DDR3 DIMMs within
a channel to be populated starting with the DIMM farthest from the processor. See the
following figure (Figure 12).
For a complete list of supported memory DIMMs, see the links under
References".
20
®
Server System SR1630BC supports a DDR3-based memory subsystem. The

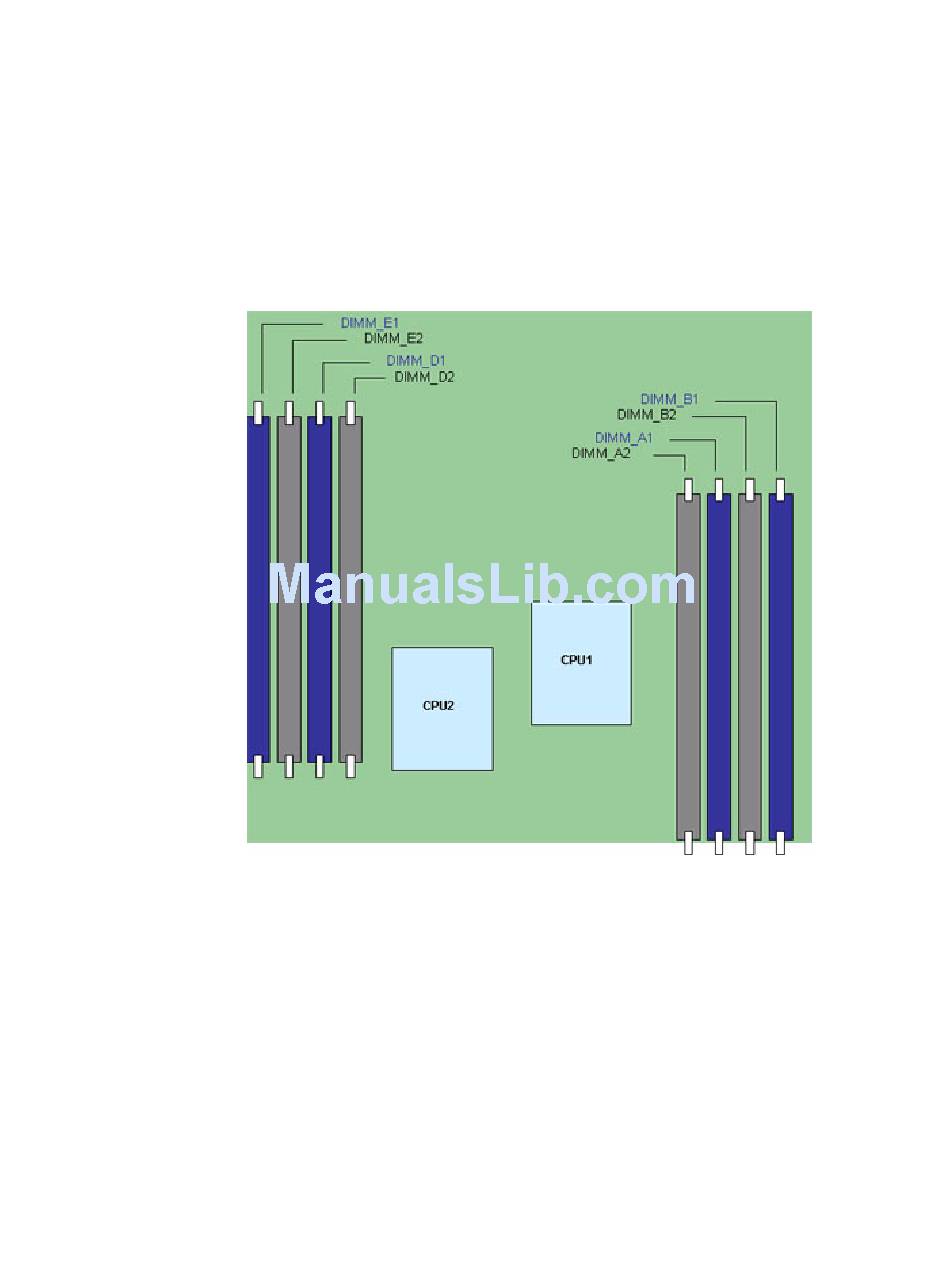

Figure 11. DIMM Configuration Diagram

Intel® Server System SR1630BC Service Guide
"Server System
