Removing a Slimline Optical Drive

1. Remove the power and data cables.
2. Remove the screws and slide the optical drive assembly out of the chassis.

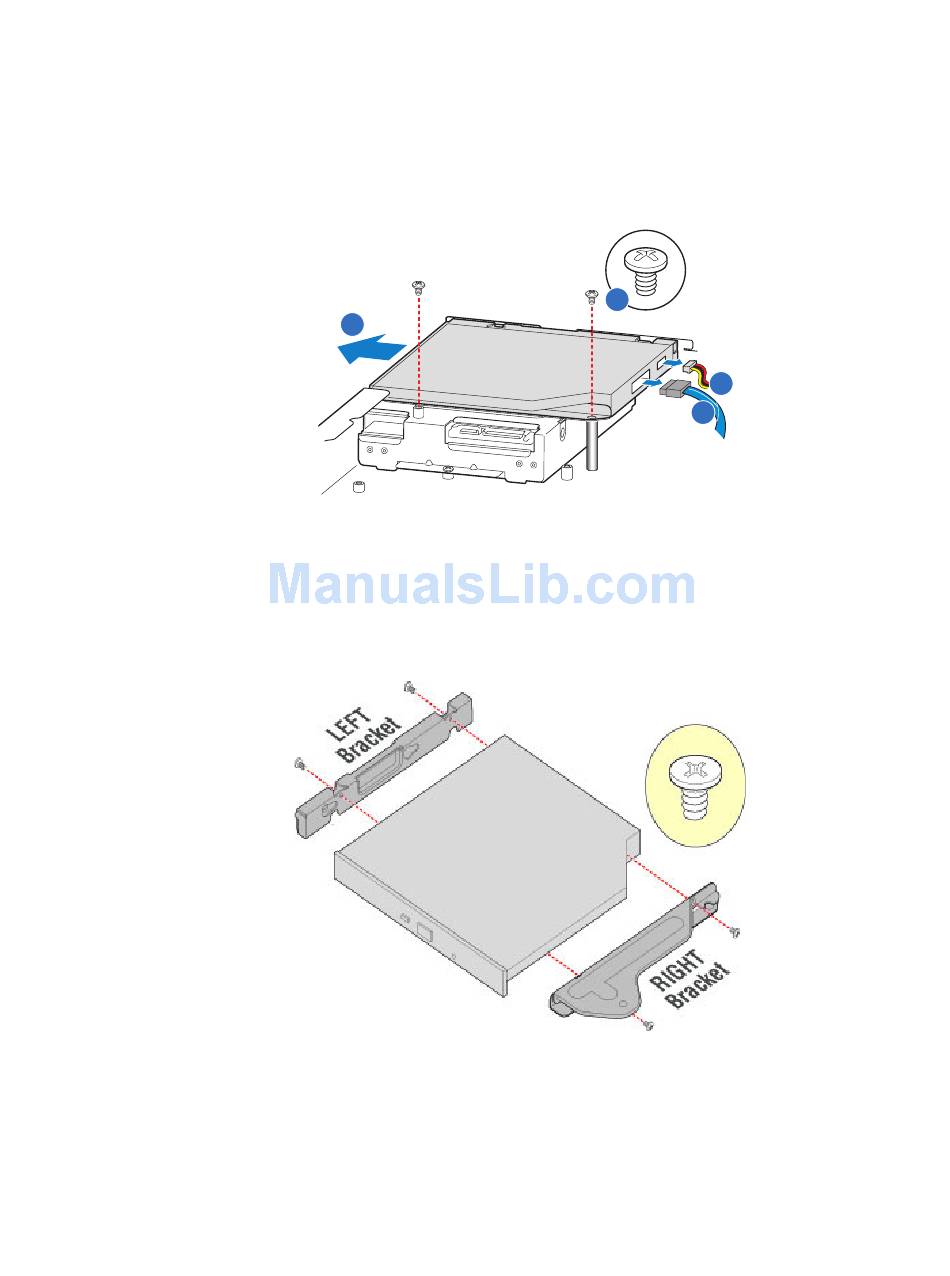

Figure 37. Removing the Slimline Optical Drive Assembly from the Server
3. Remove the four screws from the brackets.

Figure 38. Removing the Brackets from the Slimline Optical Drive Assembly
