Installing Or Removing A Slimline Optical Drive; Figure 33. Removing Drive Carrier From The Server System - Intel SR1630BC - Server System - 0 MB RAM Service Manual

4. Remove the four screws that attach the hard drive to the drive carrier. Lift the drive
from the carrier. Store the drive in an anti-static bag.
5. If you are installing a new drive, skip the rest of these steps and instead see
"Installing and Removing a Fixed Hard
6. Insert the screws that held the drive in the carrier into the screw locations on the
carrier for future use.
7. Set the drive assembly into place in the chassis (see letter "A" in the following
figure). Attach the drive assembly to the chassis with the screw that you removed
previously in step 4(see letter "B").
Note: You must install the assembly that contains the optical drive bracket on the left side of the
system.

Installing or Removing a Slimline Optical Drive

Caution: Slimline optical drives are NOT hot-swappable. Before removing or replacing the drive,
you must first take the server out of service, turn off all peripheral devices connected to
®
Intel Server System SR1630BC Service Guide

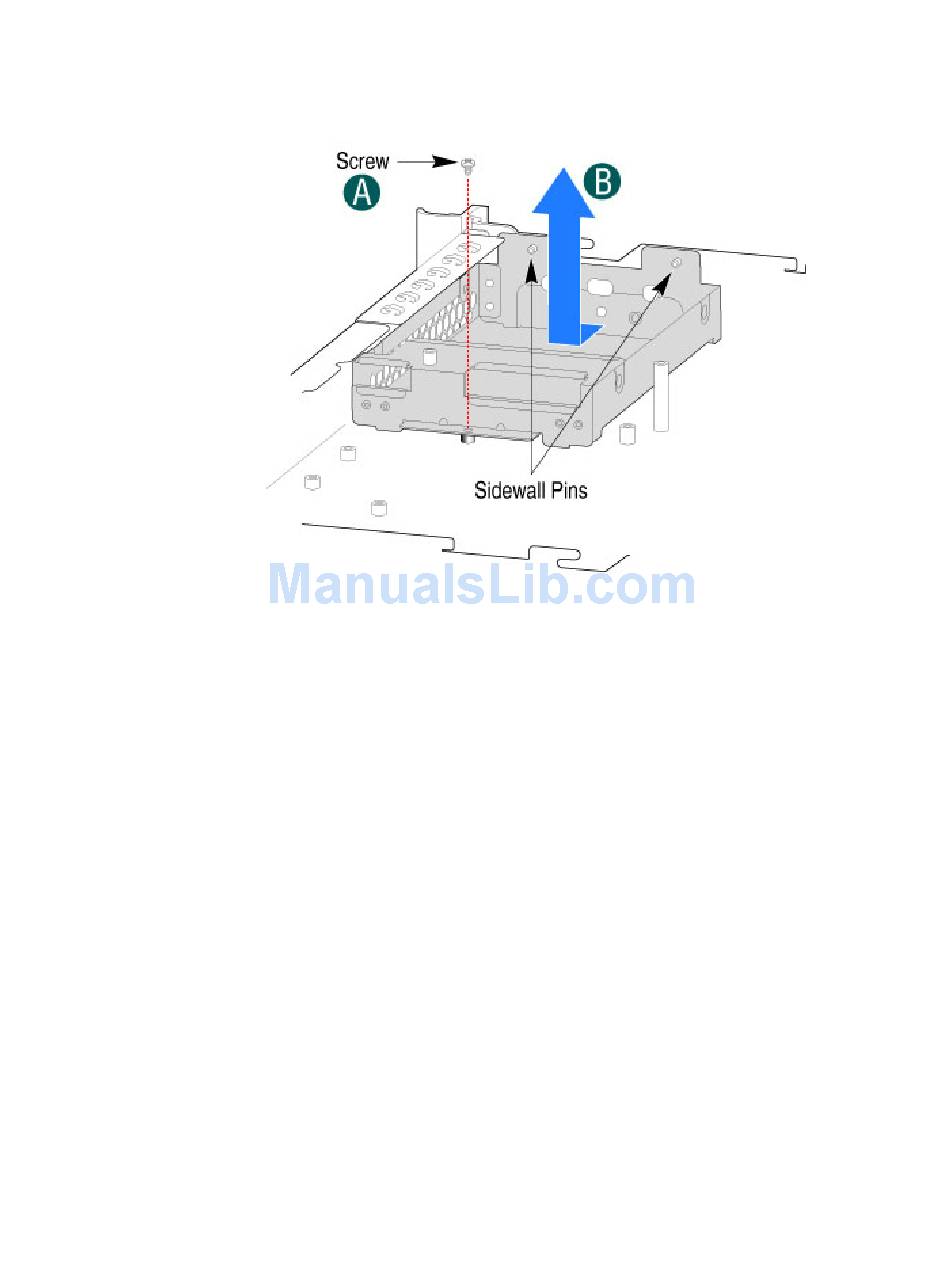

Figure 33. Removing Drive Carrier from the Server System

Drive".
41
