Figure 47. Connecting The System Blower Cables - Intel SR1630BC - Server System - 0 MB RAM Service Manual

7. Install the replacement blower onto the bracket, using the two screws you removed
previously in step 3.
8. Set the blower assembly into the system. Insert the rear edge first and push the
assembly slightly rearward to clear the hard disk drive brackets. Use caution to
make sure you do not pinch any cables.
9. Route the cable from the blower at the right around the right side of the assembly
and under the clip at the front of the blower bracket.
10. Secure the blower assembly to the system using the two screws you removed
previously.
11. Connect the blower cables to the server board. See letters "A" and "B" in the
following figure.
®
Intel Server System SR1630BC Service Guide

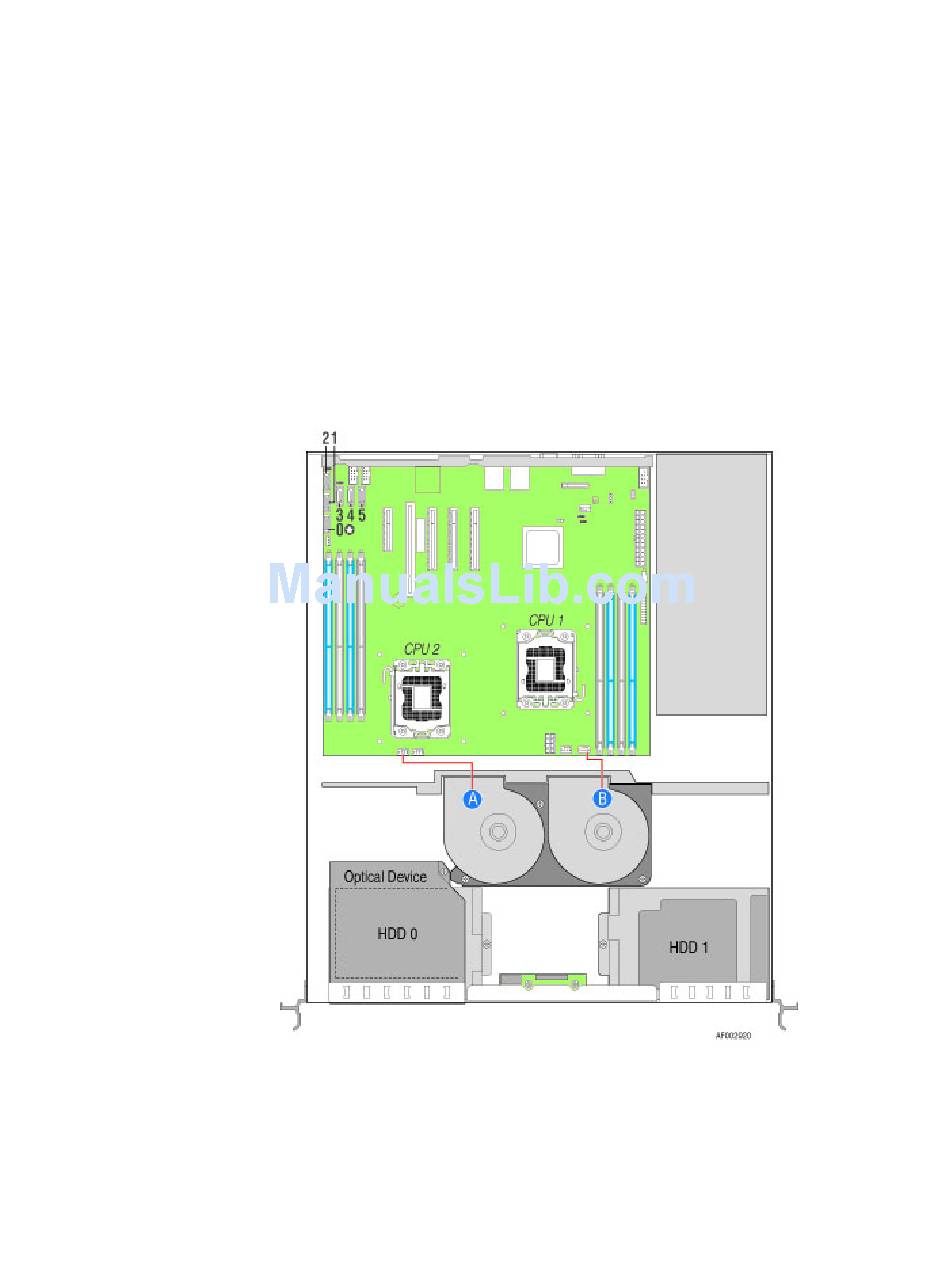

Figure 47. Connecting the System Blower Cables
