Installing and Removing the PCI Riser Assembly
Removing the PCI Riser Assembly
1. Disconnect any cables attached to any add-in cards.
2. Grasp the riser assembly and pull up to release it from the system.

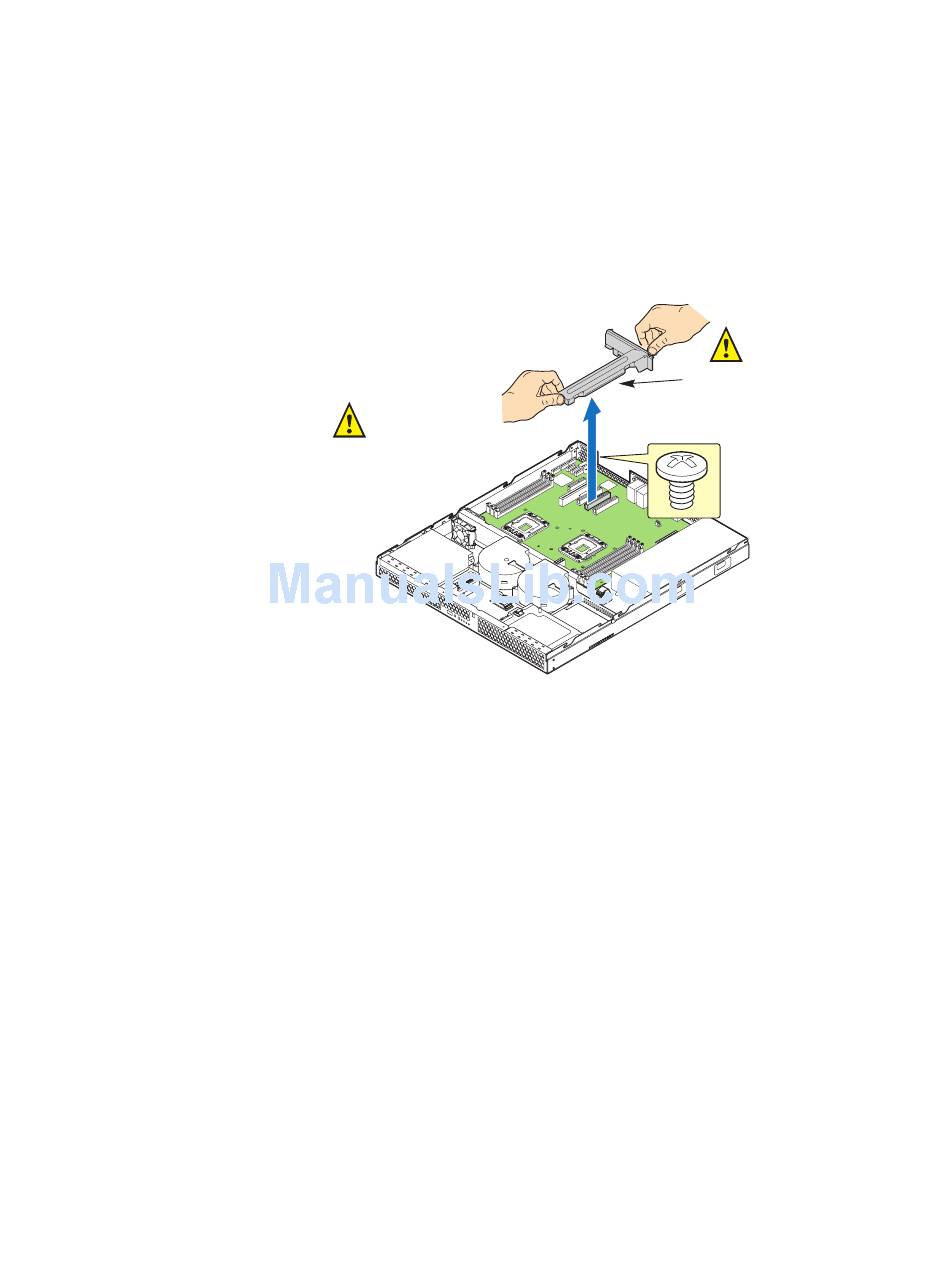

Figure 39. Removing the PCI Riser Assembly from the Server System
Installing the PCI Riser Assembly
1. Lower the riser assembly into place (see letter "A").
2. Align the two hooks in the riser assembly with the matching slots at the back of the
server system (see letter "B").
®
Intel
Server System SR1630BC Service Guide
CAUTION:
Place the riser assembly
upsidedown to avoid
damage to the riser
card connector.
Riser Card
Connector
AF003103
