5. Set the drive assembly into place in the chassis. See letter "A" in the following
figure (Figure 31).
6. Attach the drive assembly to the chassis with the screw you removed previously in
step 3 (see letter "B").
Note: You must install the assembly that contains the optical drive bracket on the left side of the
system.
7. HDD1 only: Route the power cable into the cable clip on the top of the hard drive
bracket.
8. Connect the data cables to the drive(s).
a. If a drive is installed in the HDD0 carrier, connect the HDD0 data cable to the
b. If a drive is installed in the HDD1 carrier, connect the HDD1 data cable to the
Note: The data cables are factory routed underneath the fan module. Use caution to make sure
you connect the cables between the server board and the hard drives. The cables are
labeled at each end.
9. Connect the power cables to the drive(s):
a. If a drive is installed in the HDD1 carrier, attach the connector on the daisy chain
®
Intel Server System SR1630BC Service Guide

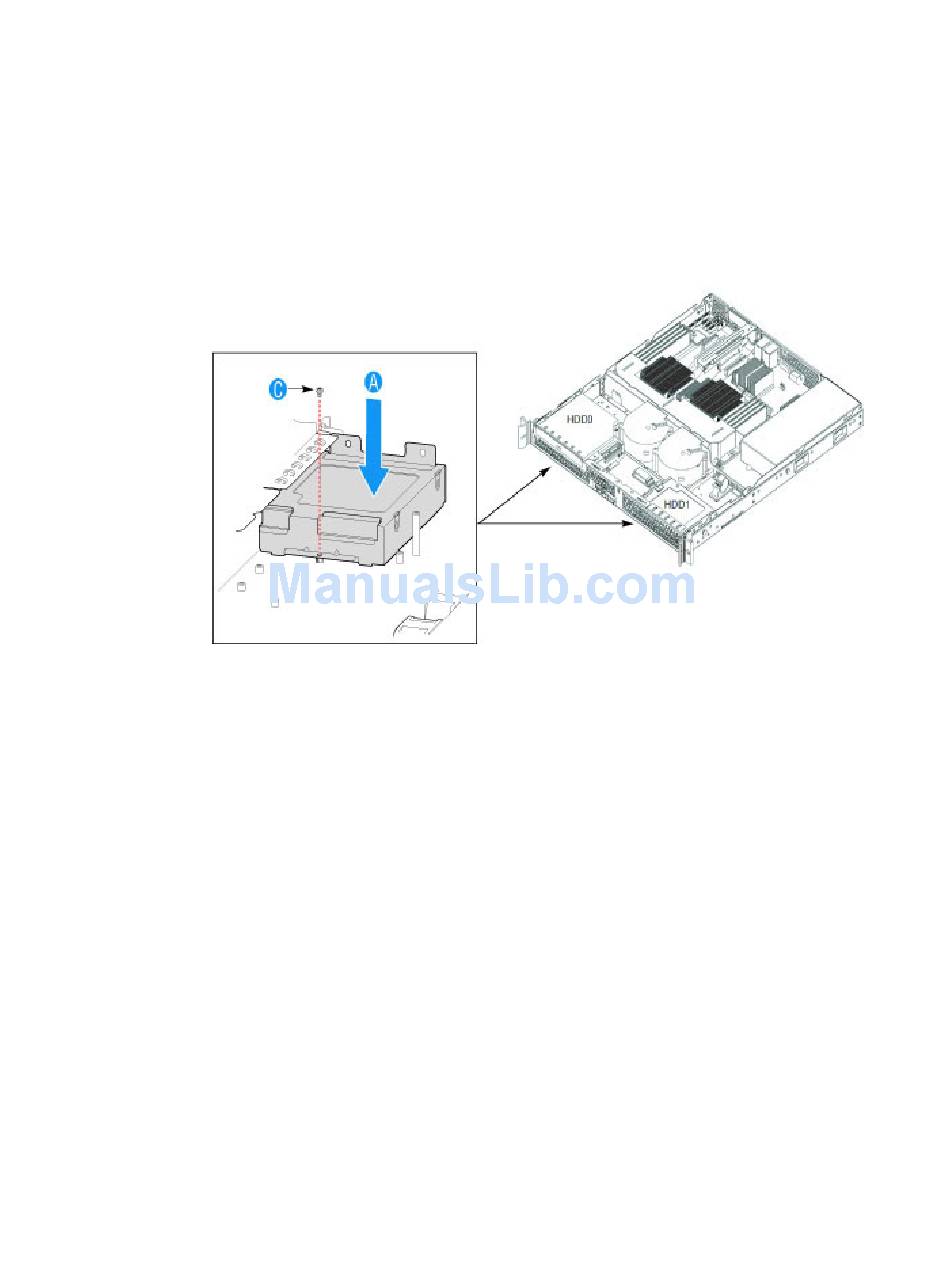

Figure 31. Installing Drive Assembly into the Server System

SATA 0 connector on the server board. See letter "A" in Figure 32.
SATA 1 connector on the server board. See letter "B" in Figure 32.
power cable that is closest to the power supply to the HDD1 connector.
39
