2. HDD1 location only: Slide the power cables from the cable clip that is located on
the top of the hard drive carrier.
3. Remove the screw that secures the hard drive bracket to the chassis (see letter "A"
in the following figure). Save this screw. You will use it later to reinstall the drive
assembly. Lift the drive carrier from the chassis (see letter "B").
®
Intel
Server System SR1630BC Service Guide

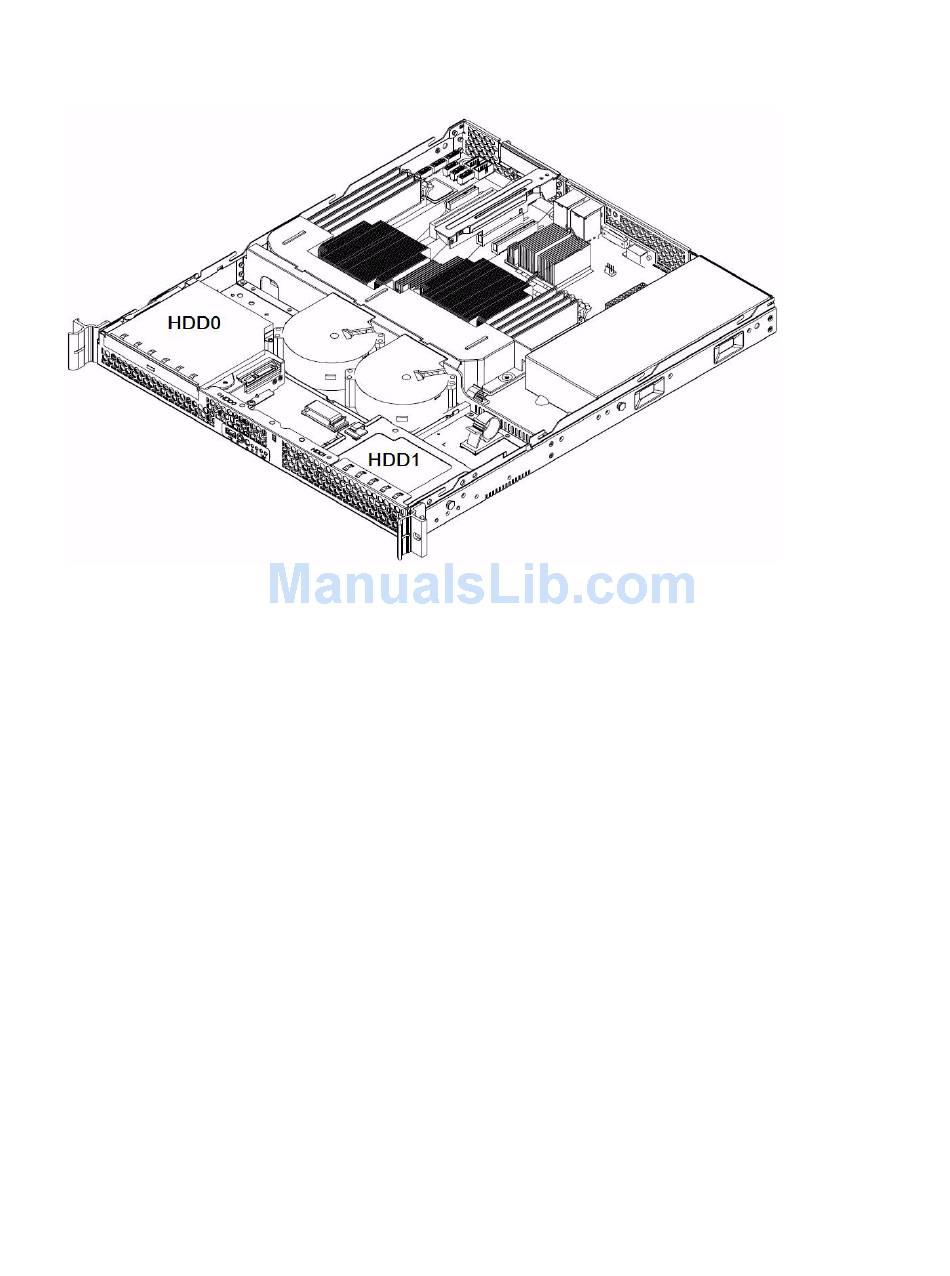

Figure 28. Locating Drive Positions
37
