Peripheral Devices
The server system provides locations and hardware for installing hard drives, a USB
floppy drive, and an optical drive. You must purchase the drives separately. The following
figure shows the available options.
.
Hard Disk Drives
The server system ships with two fixed drive carriers for installing two Serial ATA
(SATA) fixed drives.
For instructions on installing hard drives, see
Drive".
18

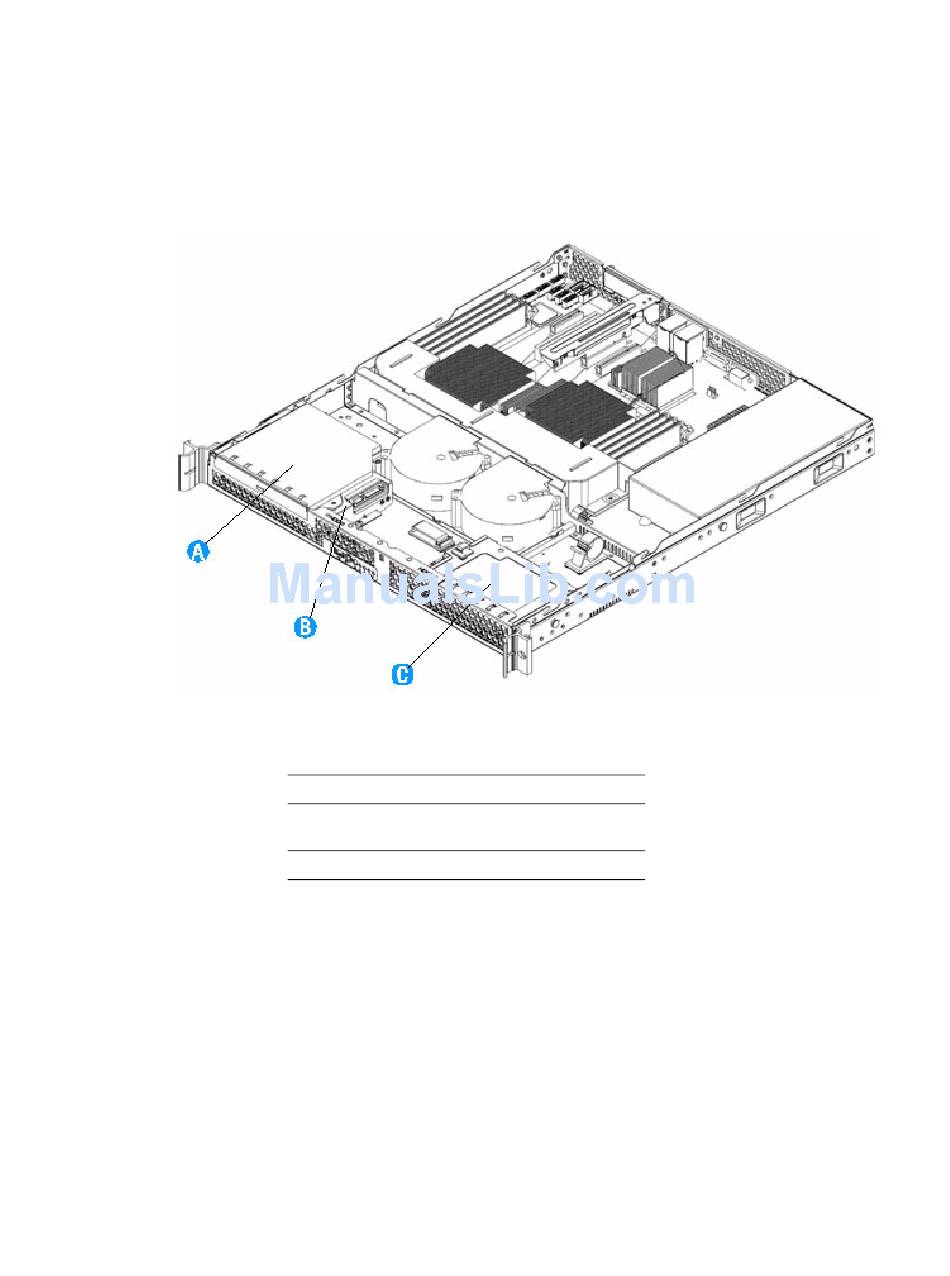

A.
Slimline optical drive bay
B.
Hard drive bay HDD0 (located under the
slimline optical drive bay)
C.
Hard drive bay HDD1
Figure 10. Optional Peripherals
"Installing and Removing a Fixed Hard
