Figure 51. Removing The Power Supply From The Server System - Intel SR1630BC - Server System - 0 MB RAM Service Manual

1. Disconnect all power supply cables including power at rear of chassis (see letter
"A").
2. Remove the two screws securing the power supply to the back panel (see letter
"B").
3. Lift the power supply up to clear the chassis tab (see letter "C") and remove the
power supply by sliding it out (see letter "D").

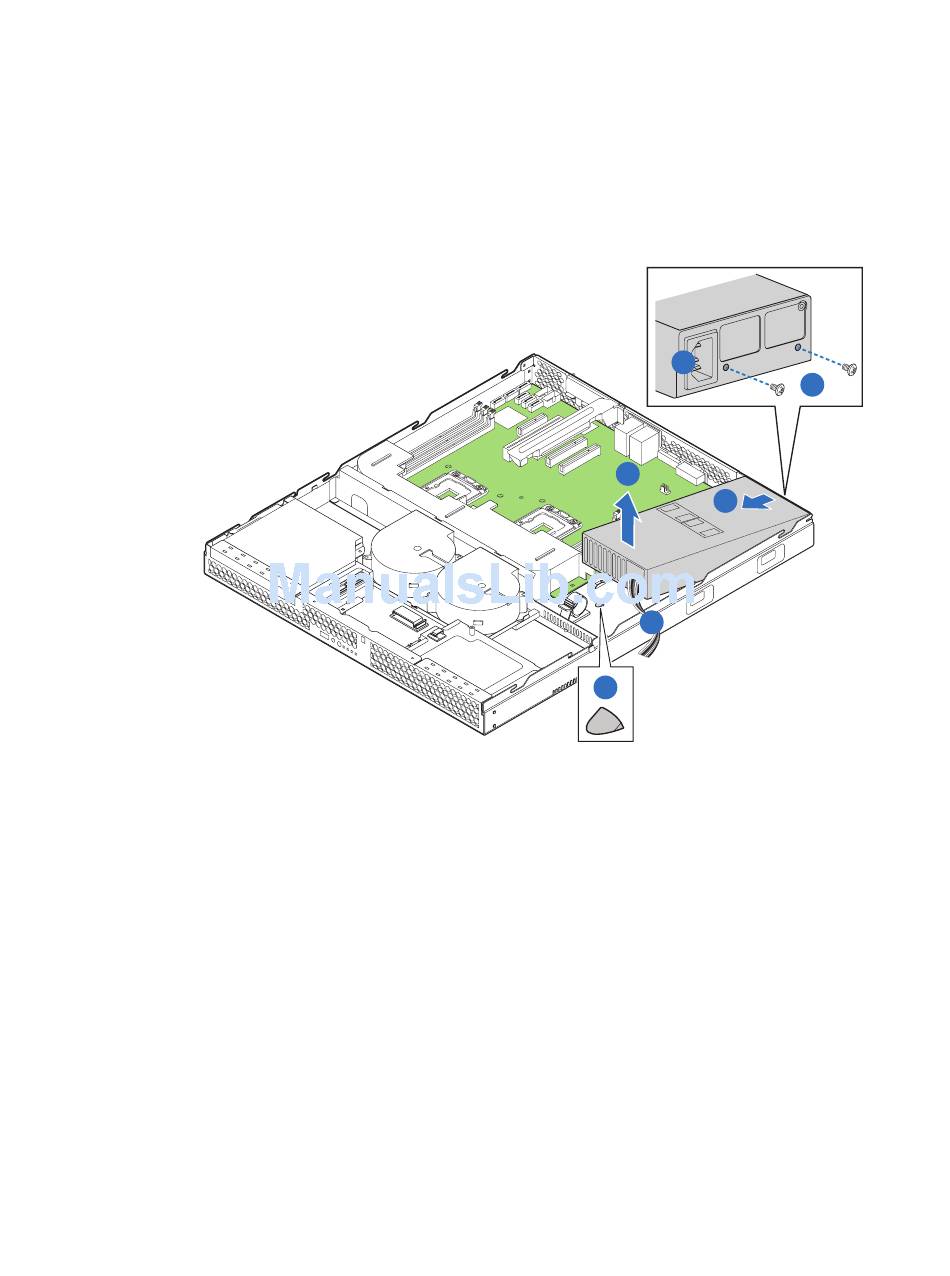

Figure 51. Removing the Power Supply from the Server System

Installing the Power Supply
1. Insert the replacement power supply by first engaging the back panel (see letter
"A").
