Front of Server System

Standard Control Panel

The following diagram shows the features of the standard control panel.

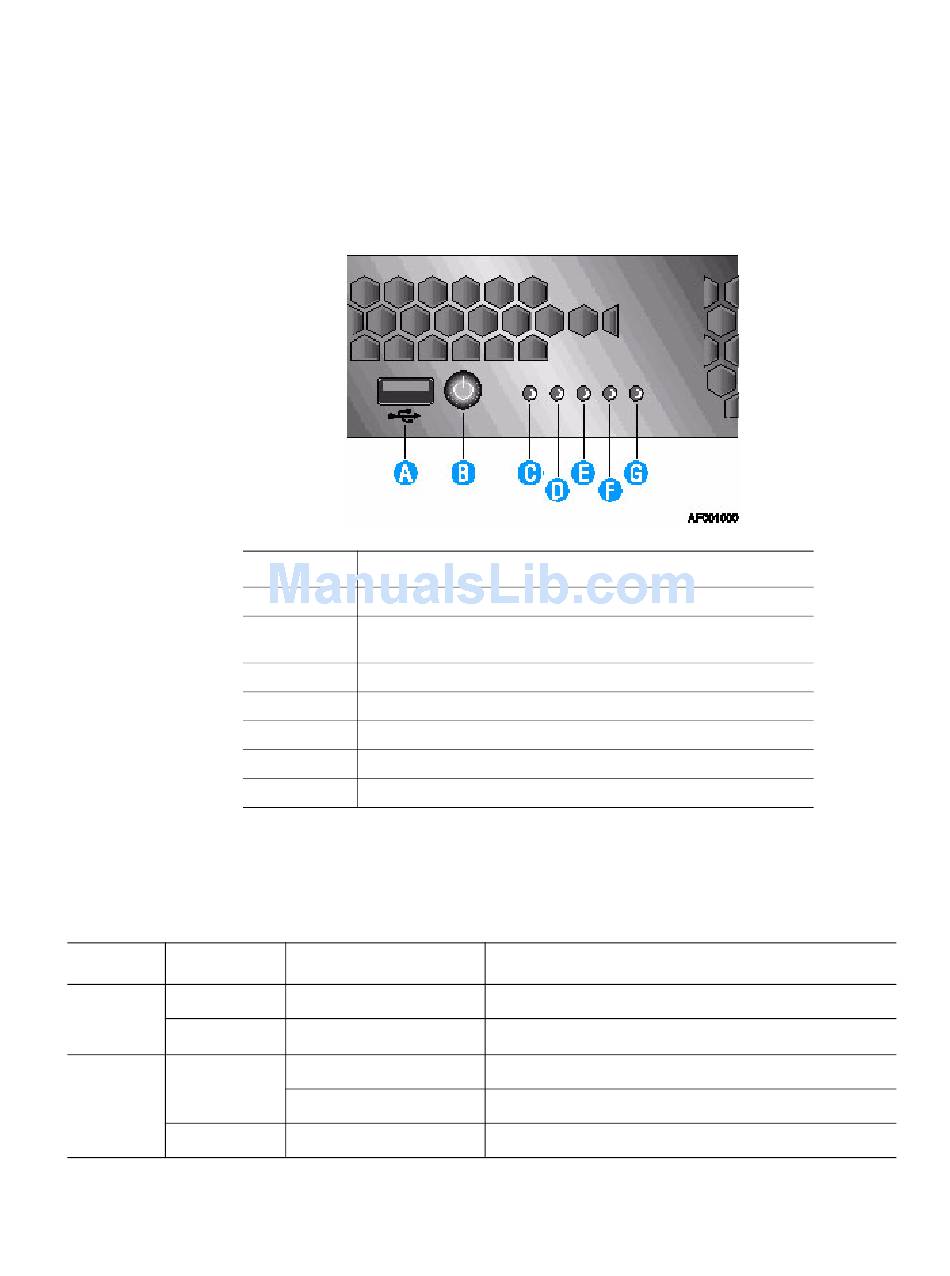

Figure 8. Front Control Panel - Intel
.
LED Color
NIC1/ Green
NIC2
Green
Activity
Power / Green
Sleep (on
standby
power)
Off
Intel® Server System SR1630BC Service Guide
Item
A. USB port
B. Power button. This button also functions as a sleep button if
enabled by an ACPI-compliant operating system.
C. Status LED
D. System power LED
E. Hard drive activity LED
F. NIC 1 LED
G. NIC 2 LED

Table 4. Control Panel LED Functions

State
On
Blink
On
Blink
Off
Feature
®
Server System SR1630BC
Description
NIC Link/no access
LAN access
Power on
Sleep / ACPI S4 state
Power Off / ACPI S4 state
15
