7.1.3.3 LS Wizard
In the LS Wizard the ECG is not displayed, only the LS parameter values are
shown and can be modified. To modify a parameter value, drag it with the cursor
inside the graph to the desired position (the numeric value of the parameter is
shown as you point to it or move it). To have access to the list of possible values
for a parameter, select it with the cursor.
7.1.4 ECG Statistics Bar
The ECG Statistics Bar displays the following values:
•
Rate: Heart rate in beats per minute (bpm)
•
AV Delay: AV interval in milliseconds
•
V-LS Delay: V-LS interval in milliseconds
•
CCM: CCM mode status
•
CCM Train: CCM delivery mode
•
CCM Delivery: CCM delivery status

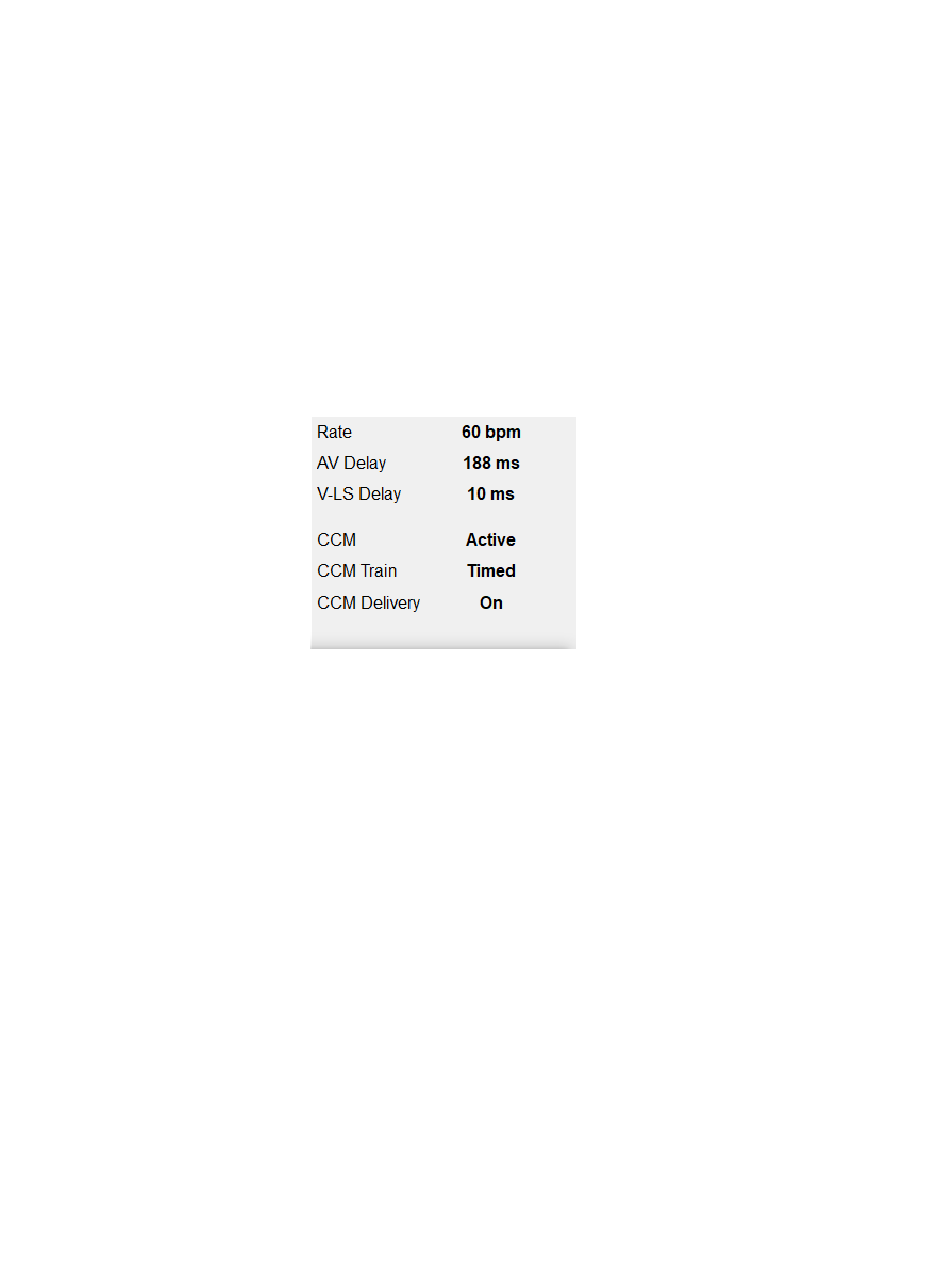

Figure 79: ECG Statistics Bar
When the OPTIMIZER Smart IPG is in Marker Mode and within communications range
of the Legacy Programming Wand, the Period, AV Delay, and V-LS Delay intervals
change dynamically, showing the current reading for each value.
7.1.5 Main Tool Bar
The Main Tool Bar is displayed under the Marker Window. It contains the buttons of the
following Optimizer Smart Programmer application commands:
•
Interrogate: Reads the current parameter values of the OPTIMIZER Smart IPG.
These values become the parameter values of the Optimizer Smart Programmer
application.
•
Program: Sets the parameter values of the OPTIMIZER Smart IPG with the
current parameter values of the Optimizer Smart Programmer application. This
command is enabled only if no parameter conflict occurs.
•
Cancel: When any parameter value of the Programmer is modified, the Cancel
command becomes available. Selecting this command will reset the parameter
values to the last interrogated/programmed ones. If no device was interrogated
and data were loaded from a .tip file, the programmer parameters are set to the
values defined in the file.
•
Undo: If the OPTIMIZER Smart IPG has been reprogrammed with a new set of
parameter values, this command resets the OPTIMIZER Smart IPG to the
previously programmed set of values.
•
Restore: If the OPTIMIZER Smart IPG has been reprogrammed to a new mode,
this command restores the OPTIMIZER Smart IPG to the values of the session's
first interrogation.
