Impulse Dynamics OPTIMIZER Smart Mini Instructions For Use Manual page 87

4. Enter the Wi-Fi password and then tap OK. See Figure 62.
5. The selected Wi-Fi network should no longer be grayed out, the button next to it should
say "Disconnect", and the Wi-Fi strength indicator should now be illuminated light blue.
See Figure 63.
6. Tap Exit to close
Note: DO NOT uncheck the Turn off upon exit checkbox before exiting the Network
Configuration Utility.

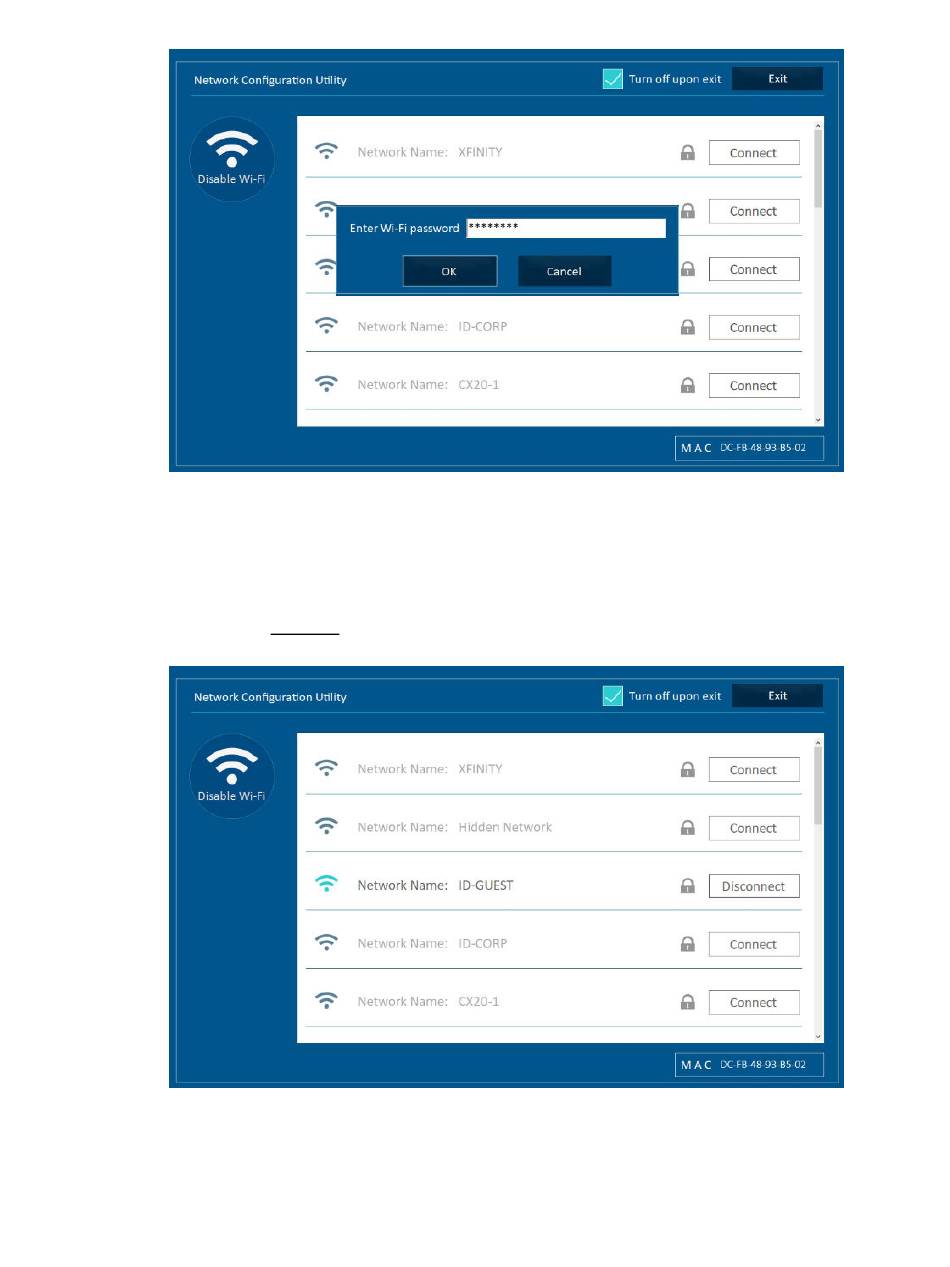

Figure 63: Network Configuration Utility Screen with Wi-Fi Connected to ID-GUEST
Figure 62: Wi-Fi Password Entry
77
