Once a link has been established, the appearance of the OPTIlink Session Pane
changes and displays the following:
•
OPTIlink Signal Strength Indicator: Dynamically displays the quality of the link
between the Intelio Programming Wand and the OPTIMIZER Smart Mini IPG.
Depending on the quality of the link, waves of the Signal Strength Indicator are
displayed in the following manner:
Good-quality link – 3 green signal waves
o
Medium-quality link – 2 yellow signal waves
o
Low-quality link – 1 red signal wave
o
•
Device model
•
Device serial number
•
Close OPTIlink: Command button that closes the communication link between
the Intelio Programmer and the OPTIMIZER Smart Mini IPG.

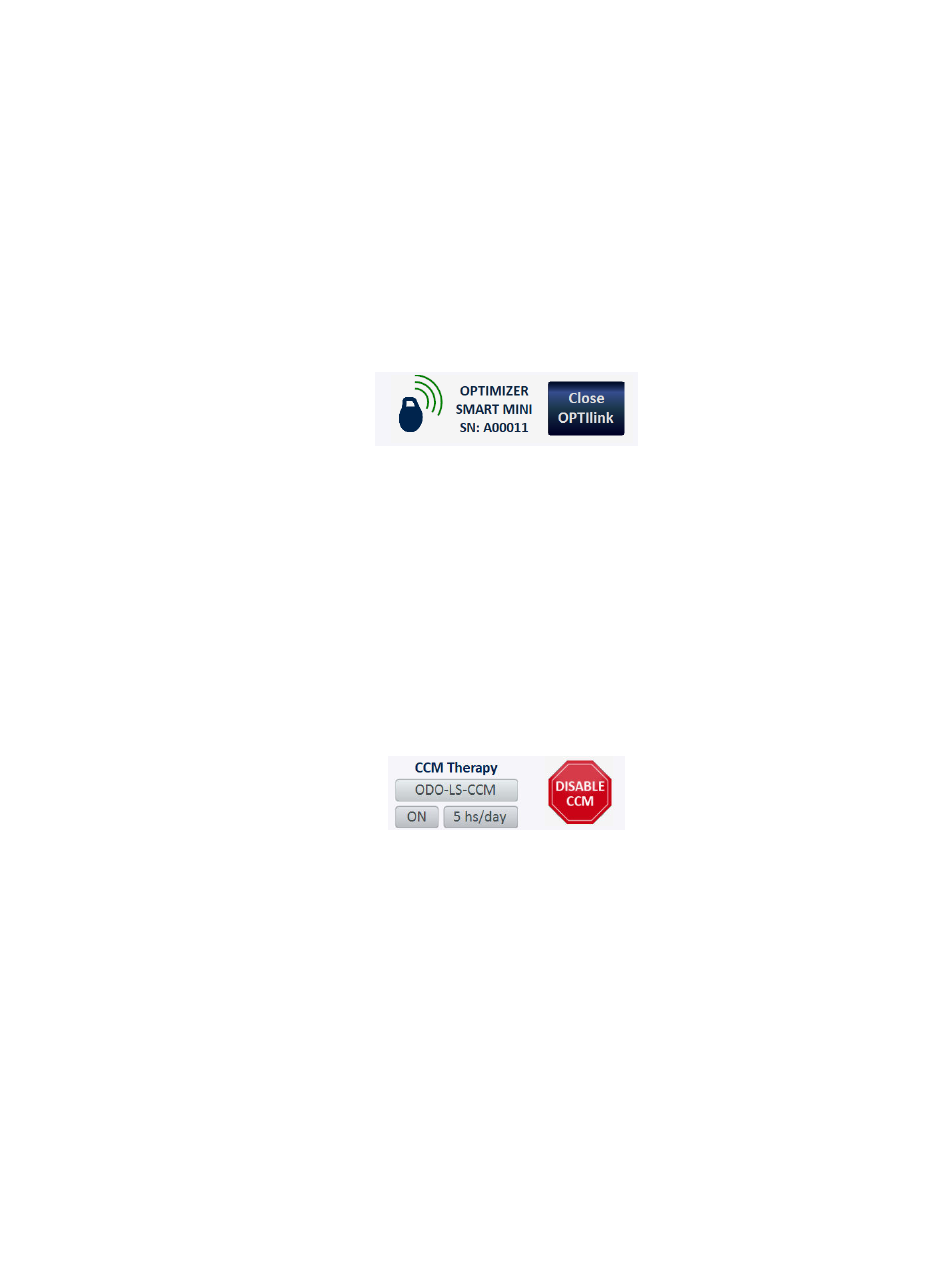

Figure 13: OPTIlink Session Pane (good-quality link to IPG shown)
3.1.4 CCM Status Pane
The CCM Status Pane shows the current status of the following parameters:
•
Device Mode
•
CCM Therapy Mode
•
CCM Therapy Dosage
The CCM Status Pane also has a button that allows the user to suspend permanently
and unsuspend CCM therapy. When the button is in its default "DISABLE CCM" state,
tapping it permanently suspends CCM therapy and toggles the button to say "ENABLE
CCM". When the button is in its "ENABLE CCM" state, tapping it unsuspends CCM
therapy and toggles the button back to display "DISABLE CCM".
Figure 14: CCM Status Pane
3.1.5 Programming Buttons Pane
The Programming Buttons Pane contains the following command buttons:
•
Nominals: Opens up a pop-up window asking the user to confirm
reprogramming of the OPTIMIZER Smart Mini IPG with nominal values. If Yes is
chosen, then the nominal values will be programmed into the OPTIMIZER Smart
Mini IPG. If No is chosen, then the pop-up window closes.
•
Interrogate: Reads the current parameter values of the OPTIMIZER Smart Mini
IPG. These values become the parameter values displayed by the Optimizer
Smart Mini Programmer application.
•
Cancel: When parameter values have been modified in the Intelio Programmer
but not yet programmed into the OPTIMIZER Smart Mini IPG, it allows the user
to discard the changes made to the parameter values. If no device was
interrogated and data were loaded from a .mips file, the programmer parameters
are set to the values defined in the file.
