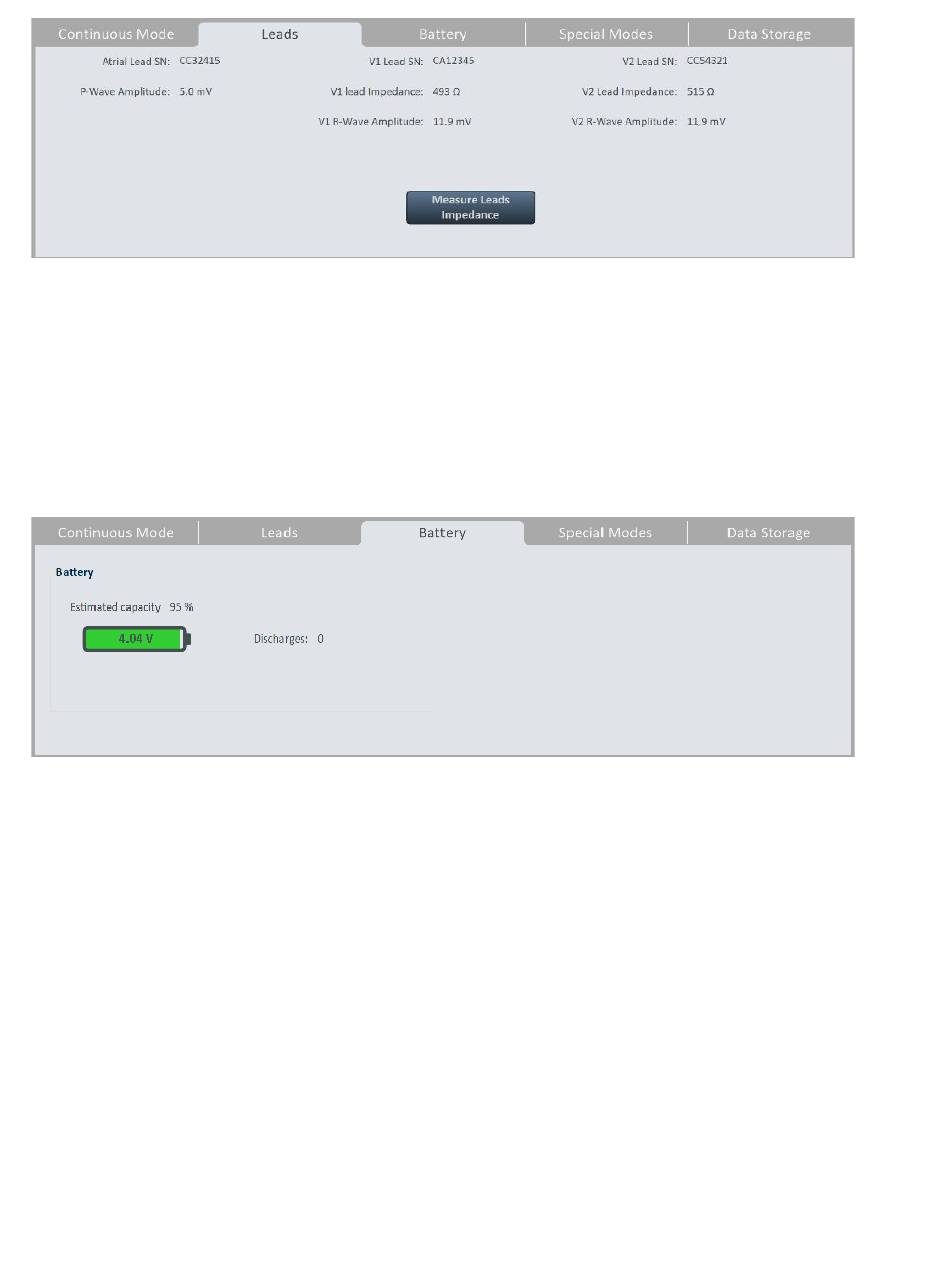

Figure 25: Leads Panel
3.1.6.3.3 Battery
The Battery tab displays the following battery information:
•
Estimated capacity: Shows the current estimated charge
capacity of the battery in the OPTIMIZER Smart Mini IPG
•
Battery bar: Shows the current voltage of the battery in the
OPTIMIZER Smart Mini IPG
•
Discharges: Indicates the number of discharge episodes
experienced by the battery in the OPTIMIZER Smart Mini IPG
Figure 26: Battery Panel
3.1.6.3.4 Special Modes (for expert use only)
The Special Modes tab has the following modes that are enabled only
after entering the correct passcode.
•
Medical Procedure: When initiated, this mode turns OFF all
CCM therapies
Start: Starts Medical Procedure Mode
o
Stop: Stops Medical Procedure Mode
o
•
Lead Depolarization: Electronically connects the V1 and V2
electrodes together to dissipate accumulated charge.
Lead Depolarization Time: Sets the length of time the V1
o
and V2 electrodes are connected together
Start: Starts Lead Depolarization
o
Stop: Stops Lead Depolarization
o
•
IPG Reset: Resets the IPG's microcontrollers and programs all
parameter values to their nominal settings.
•
Battery: Temporarily disconnects the OPTIMIZER Smart Mini
IPG's battery from its internal circuitry.
