Impulse Dynamics OPTIMIZER Smart Mini Instructions For Use Manual page 147

Intelio Programmer with Legacy Wand Wireless Nominal Specifications
Characteristic
Legacy Programming Wand to OPTIMIZER Smart IPG
Frequency Band
Modulation
Radiated Power
Range
OPTIMIZER Smart IPG to Legacy Wand
Frequency Band
Modulation
Radiated Power
Range
Quality of Service (QoS) for Wireless Technology
QoS for Communications between the Intelio Programmer and the
OPTIMIZER Smart Mini IPG
MedRadio in the MICS sub-band (402 to 405 MHz) wireless technology enables
communication between the OPTIMIZER Smart Mini IPG and the Intelio
Programmer.
Before the Intelio Programmer can be used to program the OPTIMIZER Smart
Mini IPG, an OPTIlink communication session must first be established between
the Intelio Programmer and the IPG. This is accomplished by means of the Intelio
Programming Wand, which must be placed over the implant site and within 4 cm
(1.5 in) of the IPG. Once the Intelio Programming Wand is over the patient's
implant site, the communication link is established by initiating the Start OPTIlink
command. Encryption keys are exchanged through a proprietary process using
the 13.56 MHz Recharge Channel, after which the Intelio Programming Wand
can be placed within 1.5 m (5 ft) away from the implant site, with communications
taking place over MedRadio.

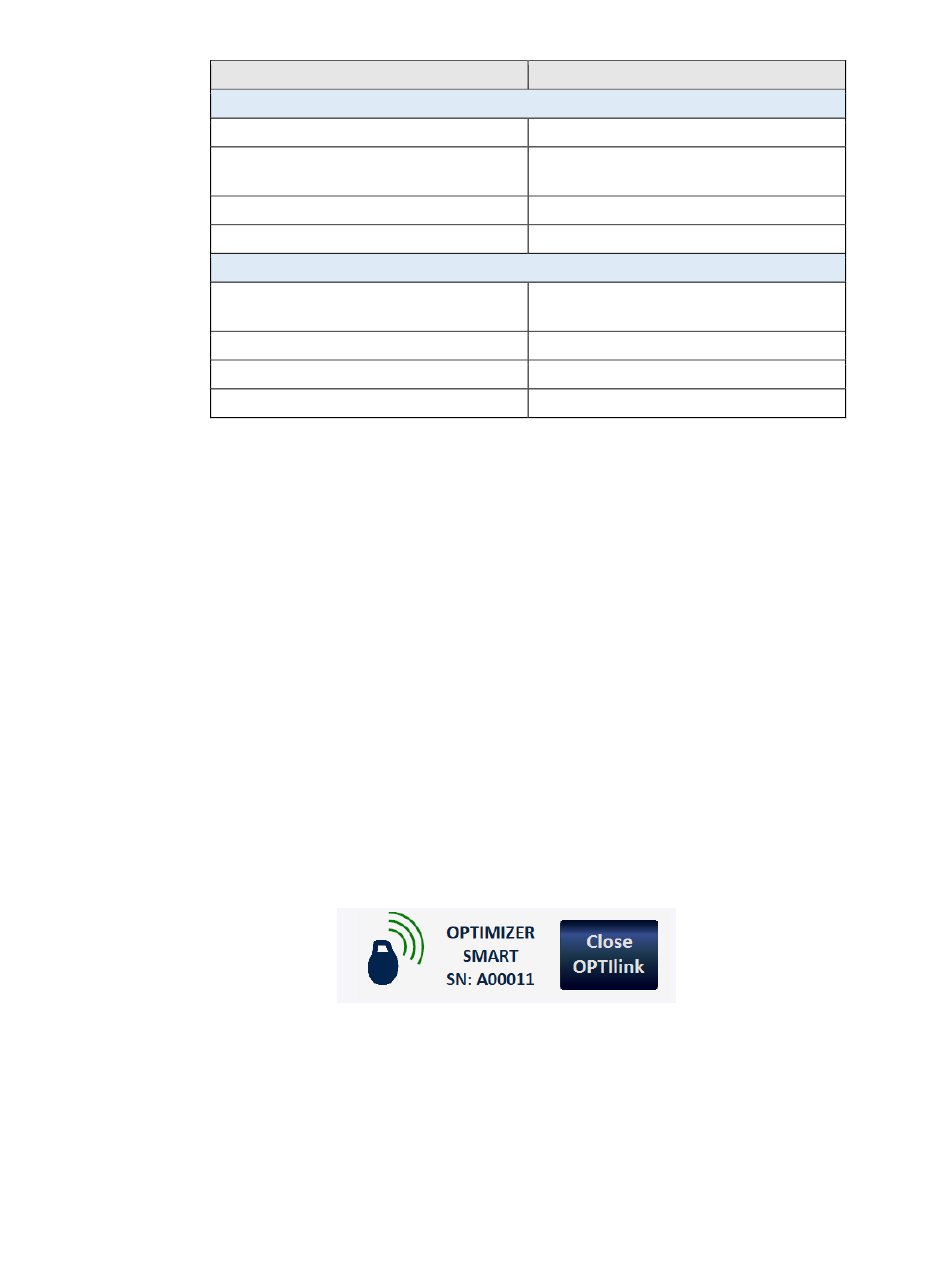

The OPTIlink Signal Strength Indicator dynamically displays the Quality of
Service (QoS) for the link between the Intelio Programming Wand and the
OPTIMIZER Smart Mini IPG. Depending on the quality of the link, the curved
"waves" of the Signal Strength Indicator are displayed in the following manner:
•
Good quality link – 3 green signal waves
•
Medium quality link – 2 yellow signal waves
•
Low quality link – 1 red signal wave
Nominal
23 kHz
100% AM: "0" = no carrier,
"1" = carrier for 305 µs
0.56 W ; 0.27 W
peak
5 mm to 50 mm
14.5 kHz LC excited by pulse; 1 cycle
per pulse until dampened to 10%
PPM: "0" = 180 µs, "1" = 270 µs
5.14 mW per pulse; 1.8 mW
peak
5 mm to 50 mm
137
average
average
