Impulse Dynamics OPTIMIZER Smart Mini Instructions For Use Manual page 36

3.1.6.4.5 Print/File
The Print/File tab has the following buttons:
•
Parameters Report: Creates a report (that can be saved in PDF
file format) of the current parameter settings programmed into
the OPTIMIZER Smart Mini IPG (see Section 3.22.2).
•
Export Statistics: Creates and saves a CSV file containing the
CCM statistics downloaded from the OPTIMIZER Smart Mini IPG
(see Section 3.22.3).
•
DB Log Backup: Backs up the OPTIMIZER Smart Mini IPG log
files stored on the Intelio Programmer (see Section 3.22.4).
•
DB Log Restore: Loads the backed-up OPTIMIZER Smart Mini
IPG log files onto the Intelio Programmer (see Section 3.22.4).

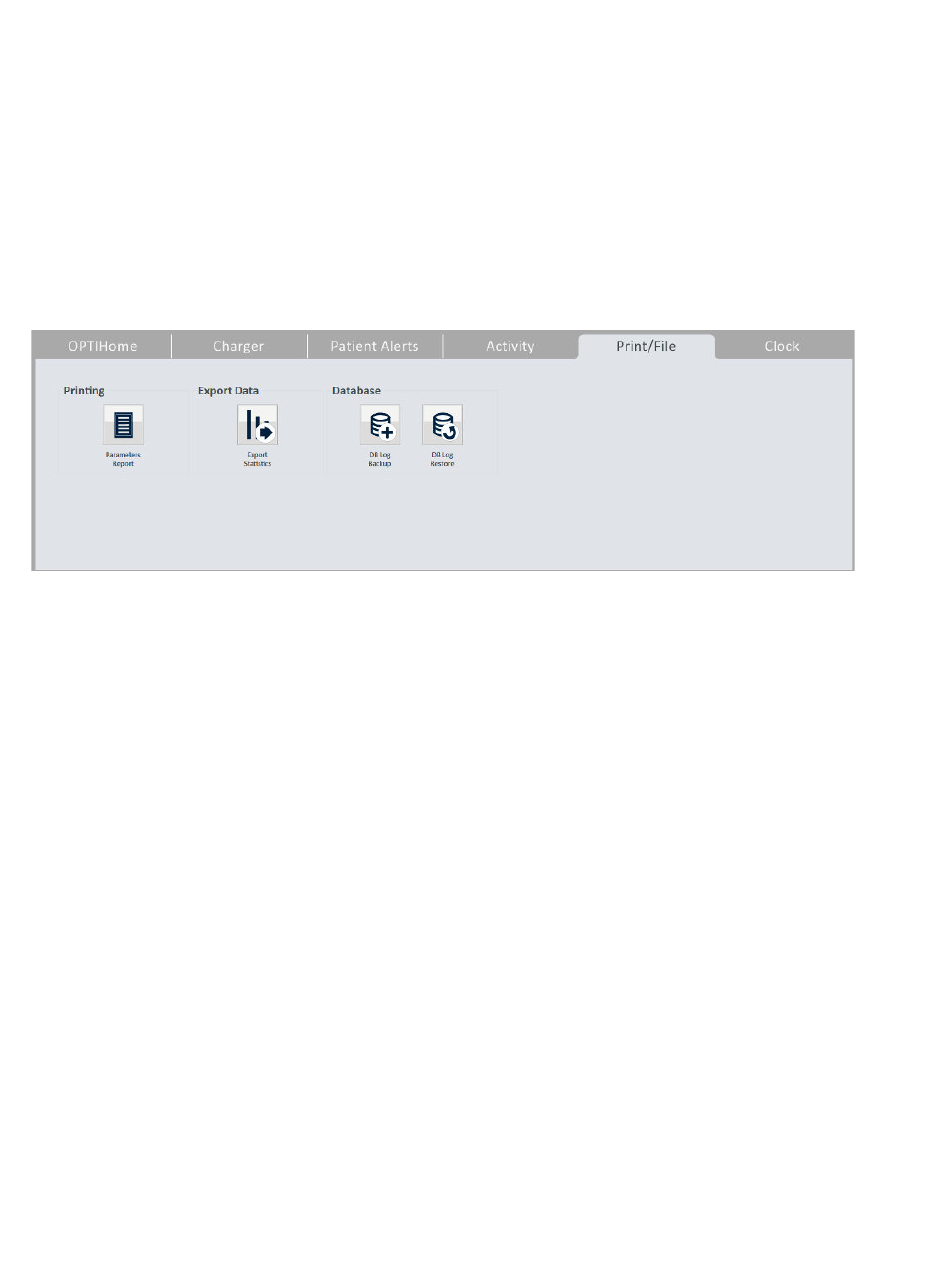

Figure 33: Print/File Panel
3.1.6.4.6 Clock
The Clock tab displays the following information:
•
IPG's clock current time
Local: Shows the current date and time of the OPTIMIZER
o
Smart Mini IPG
•
Programmer's clock current time
Local: Shows the current date and time of the Intelio
o
Programmer
The Clock tab also has the following buttons:
•
Read IPG Clock: Reads the current date and time from the
OPTIMIZER Smart Mini IPG.
•
Set IPG Clock: (inactive until Read IPG Clock command is
executed): Manually sets the clock in the OPTIMIZER Smart Mini
IPG.
•
Synchronize IPG clock to programmer clock: Automatically
sets the clock in the OPTIMIZER Smart Mini IPG to the current
date and time of the Intelio Programmer.
26
