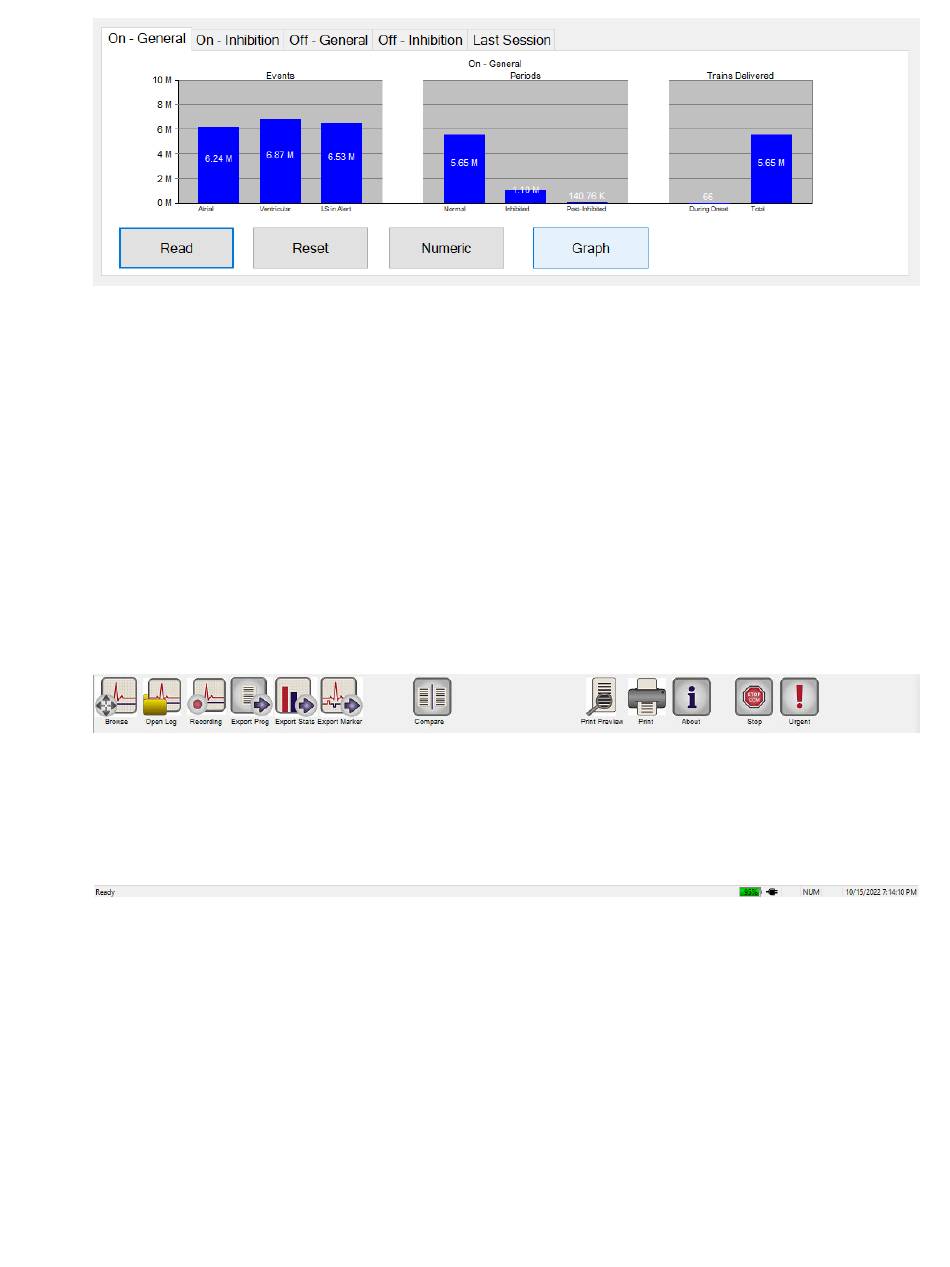

Figure 99: Statistics On - General Panel (Graph View)
7.1.12 Log Files
When the Log Files button is selected, the programming commands on the Main Tool Bar
are changed to the following Log File commands:
•
Browse: opens the Marker window for viewing.
•
Open Log: opens a window allowing the user to choose from the list of the saved
marker files.
•
Recording: starts recording the patient's ECG.
•
Export Prog: writes a text file containing the values of the current parameters.
•
Export Stats: writes a text file containing the values of the statistics counters.
•
Export Marker: writes a text file containing the values of the markers.
•
Compare: opens a window displaying the differences in parameters found
between the old values and the current values.
Figure 100: Tool Bar with Log File Commands
7.1.13 Status Bar
The current communication event (for example: interrogation, programming, ready) is
displayed at the screen's last line along with the laptop's battery charge percentage and
the system's date and time.
7.2 Interrogation
7.2.1 Communicating with the Implanted OPTIMIZER Smart IPG
Place the Legacy Programming Wand over the implant site, at a distance of no more than
3.5 cm (1.4 in) from the implanted OPTIMIZER Smart IPG. A blinking green or yellow
light on the signal strength indicator indicates that the IPG is within communications
range of the Legacy Programming Wand. A blinking red light indicates that the distance is
excessive and communications may be difficult. No light at all means that the Legacy
Programming Wand and OPTIMIZER Smart IPG are completely out of communication
range or that the battery of the OPTIMIZER Smart IPG is completely discharged and thus
incapable of communicating with the Legacy Programming Wand.
Figure 101: Status Bar
