3.15.2 Daily Activity Trends
3.15.2.1 Viewing Daily Activity Trends
To view the Daily Activity trends stored by the OPTIMIZER Smart Mini IPG:
1. If necessary, initiate a link with OPTIMIZER Smart Mini IPG
a. Place (or replace, if necessary) the Intelio Programming Wand over
the OPTIMIZER Smart Mini IPG implant site
b. Tap the Start OPTIlink button on the OPTIlink Session Pane
2. Tap the Follow-up button on the Menu Bar
3. Select the Stats and Trends tab
4. On the Stats and Trends panel, tap the Daily Activity button
If successful, the Programmer will display the Daily Activity screen.
Note: The date range for the Daily Activity trends displayed on the screen may
be changed by selecting the arrow to the right of the "1 Month" date range. One
may then select the desired date range from the pull-down menu.
3.15.2.2 Daily Activity Screen
The Daily Activity screen includes the following information:
•
Model: Displays device model.
•
IPG SN: Displays the serial number of the device
•
Average HR (bpm): Displays average daily heart rate (HR)
•
Activity: Displays the average daily activity level of the patient (line
graph) and the amount of time the patient was engaged in each of the 5
different activity levels during the day (bar graph).
•
Position: Displays what percentage of time the patient was in each
position throughout the day.
•
Average HRV (ms): Displays average daily heart rate variability (HRV).
Note: Tap on a specific data point on one of the graphs to view the numerical
data for that day.

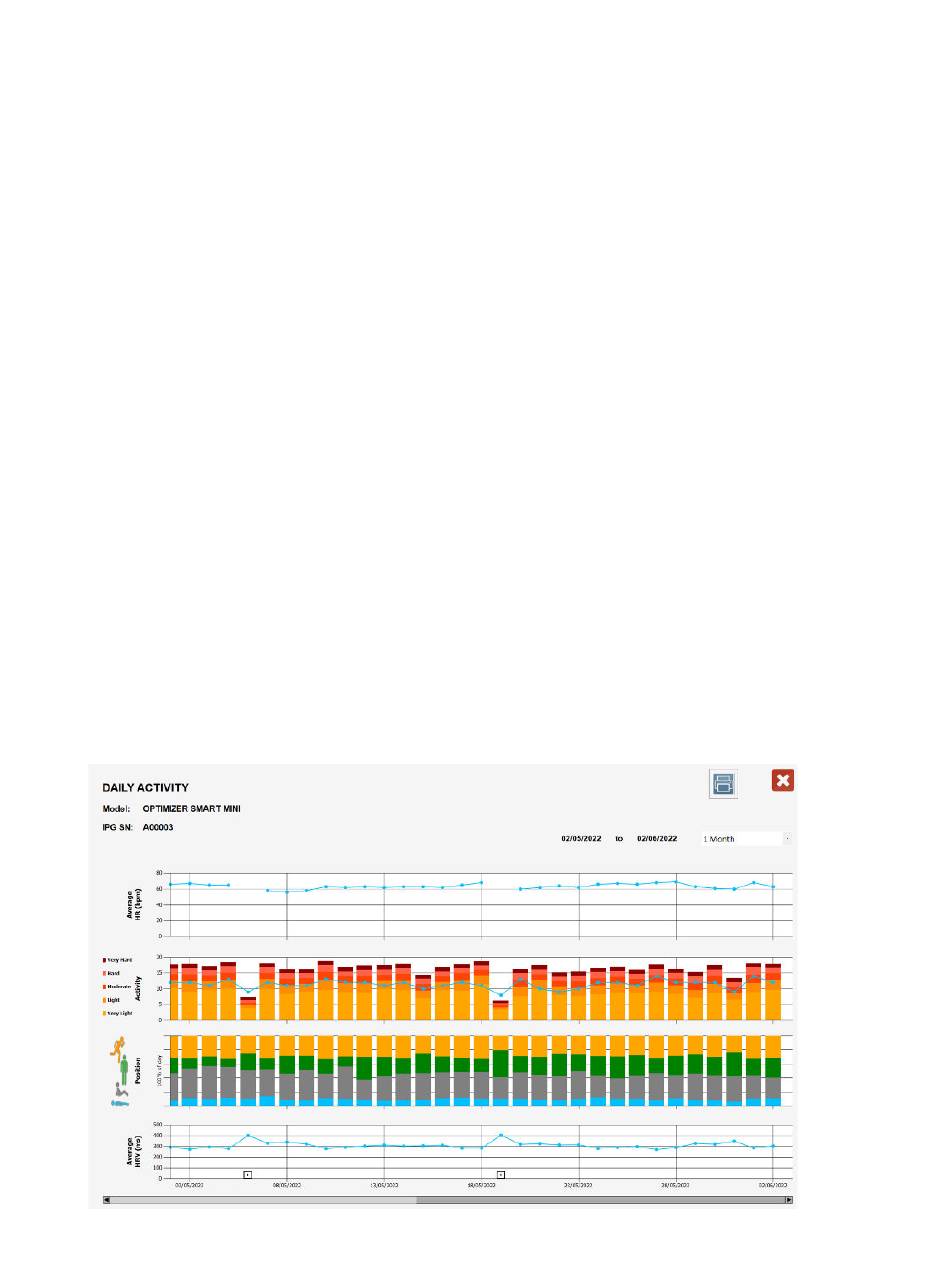

Figure 49: Example of Daily Activity Screen
