8.0 SOFTWARE UPDATE
The Intelio Programmer includes an application that allows a user to update the software on the Intelio
Programmer.
To update the software:
1. On the left-hand side of the Intelio Programmer tablet PC, push the flap covering the USB ports
towards the back of the tablet PC to unlock it and then fold the flap outwards.
2. Insert a USB flash drive containing the software update files into one of the two USB ports on the
Intelio Programmer tablet PC.
3. When the Password pop-up window appears, enter the appropriate password obtained from
Impulse Dynamics and then tap OK.
4. When the Install Updates pop-up window appears, enter the updates password obtained from
Impulse Dynamics and then tap Install Updates. See Figure 116.

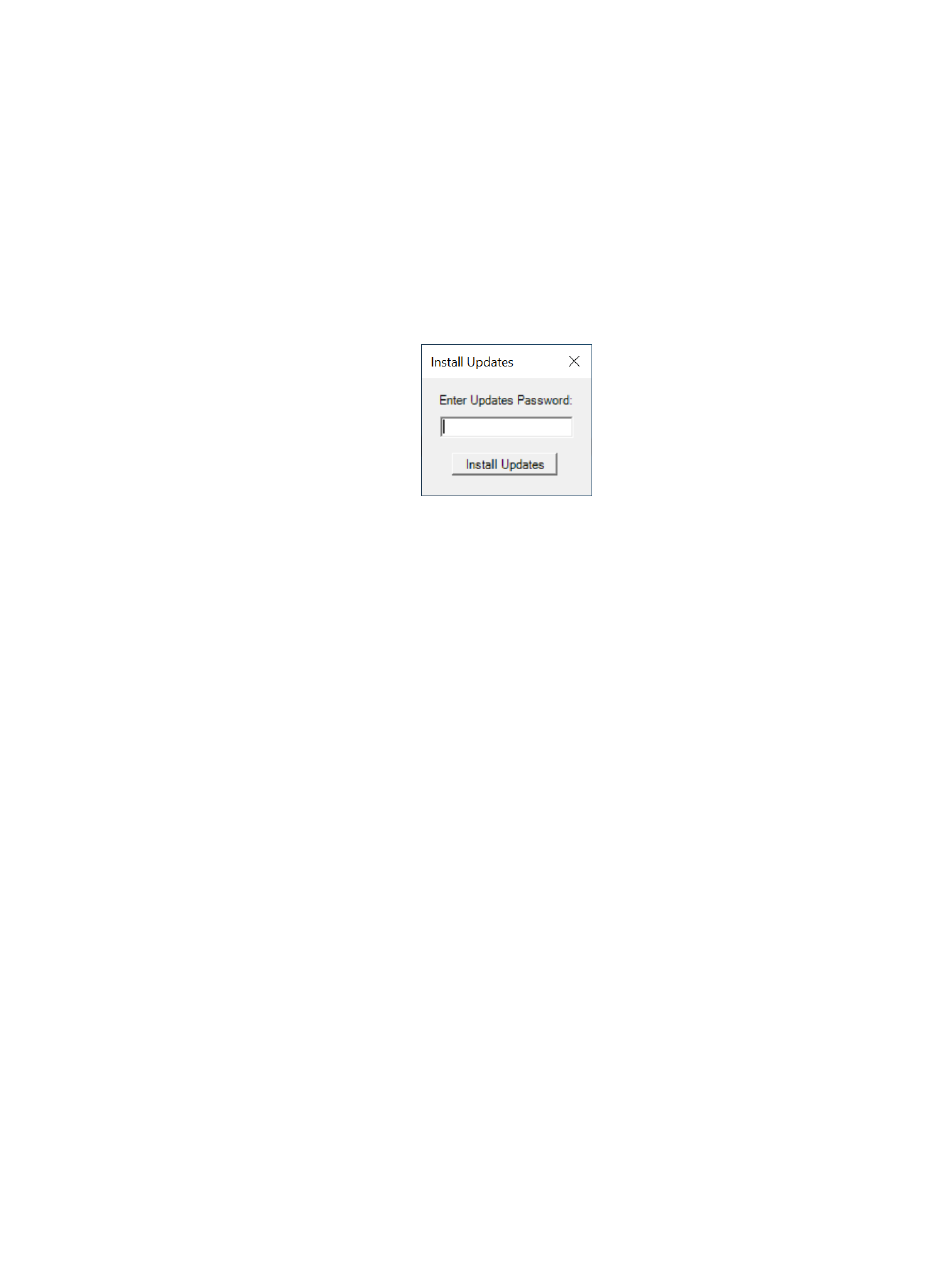

Figure 116: Install Updates Window
