3.0 OPTIMIZER SMART MINI PROGRAMMER SOFTWARE
The Optimizer Smart Mini Programmer Software is an application used to read and modify the
parameters that control the OPTIMIZER Smart Mini IPG. This section describes the various features of
the Optimizer Smart Mini Programmer application.
Note: Dates displayed by the Optimizer Smart Mini Programmer application are in the following format
(unless otherwise noted):
DD/MM/YYYY
Where:
•
DD = day
•
MM = month
•
YYYY = year
3.1 Overview of the Optimizer Smart Mini Programmer Application
When the Optimizer Smart Mini Programmer software is started, the Optimizer Smart Mini
Programmer application displays the main screen, which includes the following:
•
ECG/IEGM/Marker Pane
Surface ECG/Far-Field IEGM Sub-pane
o
IEGM Sub-pane
o
Marker Sub-pane
o
•
CCM Marker Legend
•
OPTIlink Session Pane
•
CCM Status Pane
•
Programming Buttons Pane
•
Menu Bar
•
Status Bar

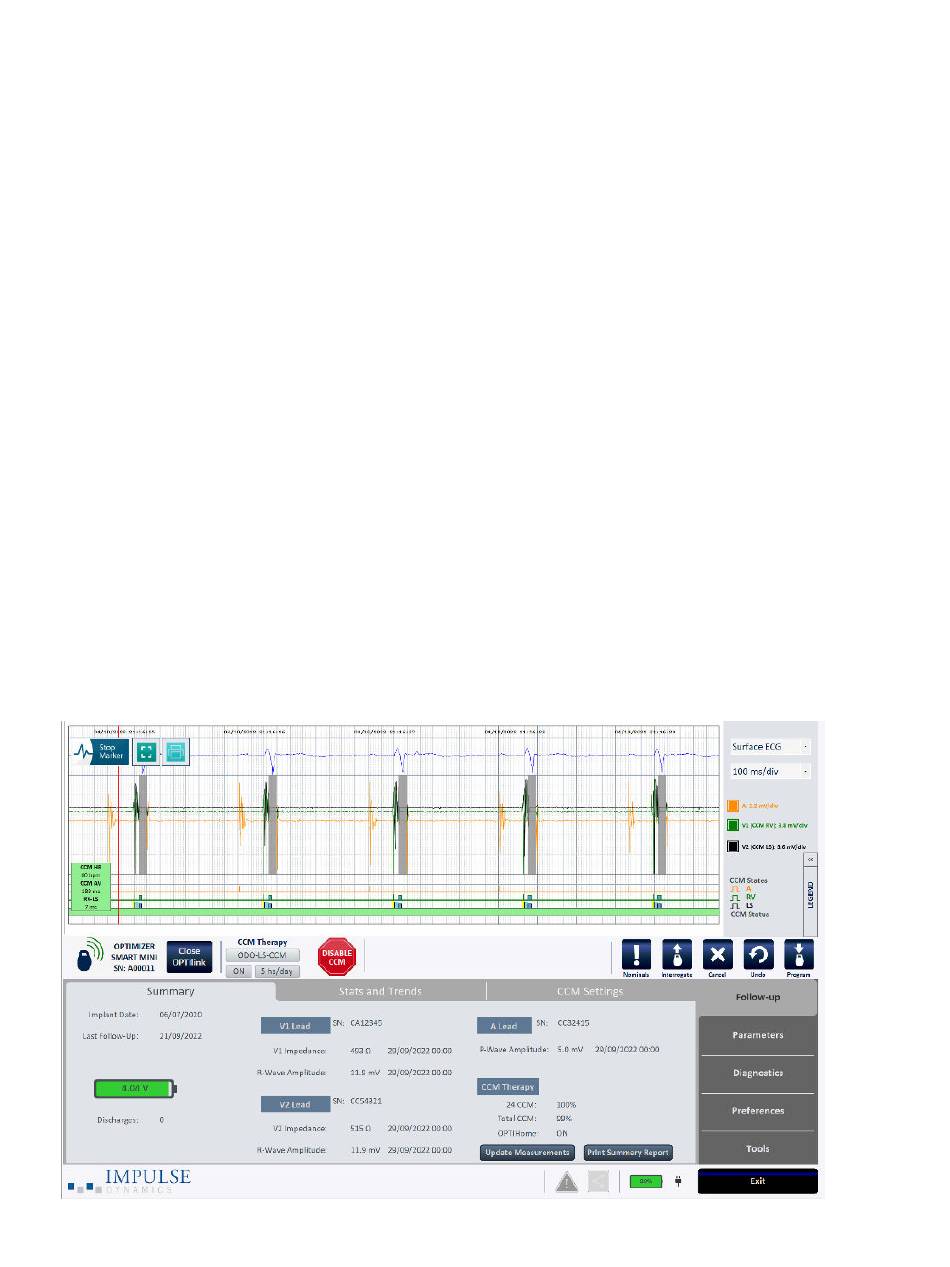

Figure 3: Optimizer Smart Mini Programmer Application Main Screen
